Attaching the trailer
CAUTION!
Trapping hazard
There is a trapping risk when you attach a trailer.
X
Follow the instructions of the coupling manufacturer if using special trailer
couplings.
X
Secure the trailer to prevent it from rolling away before coupling it.
X
Do not get caught between the truck and the tiller when coupling the trailer.
X
The tiller must be horizontal, tilted down by no more than 10° and never facing up.
Attaching the trailer
Requirements
Truck and trailer are on a level surface.
Trailer prevented from rolling away.
Procedure

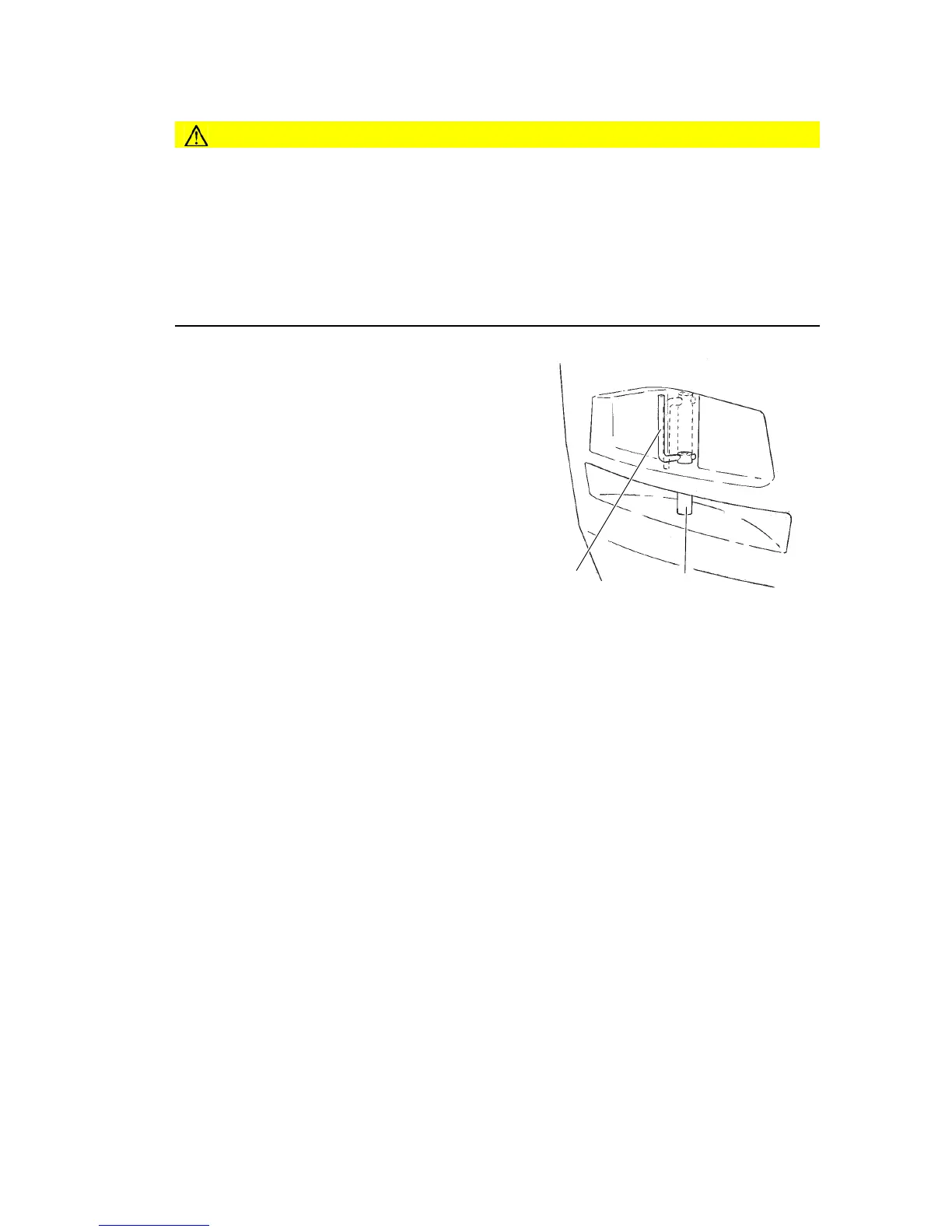

The handle (189) is moved to a horizontal
position and the bolt (188) is raised so that
the coupling fork becomes free. Then
position the handle (189) vertically so that
the bolt (188) remains in place.
Insert the trailer tiller into the opening.
Move the handle (189) to a horizontal position let down the bolt (188), thereby
locking the handle (189) in a vertical position.
The trailer is now attached to the truck.
189 188
