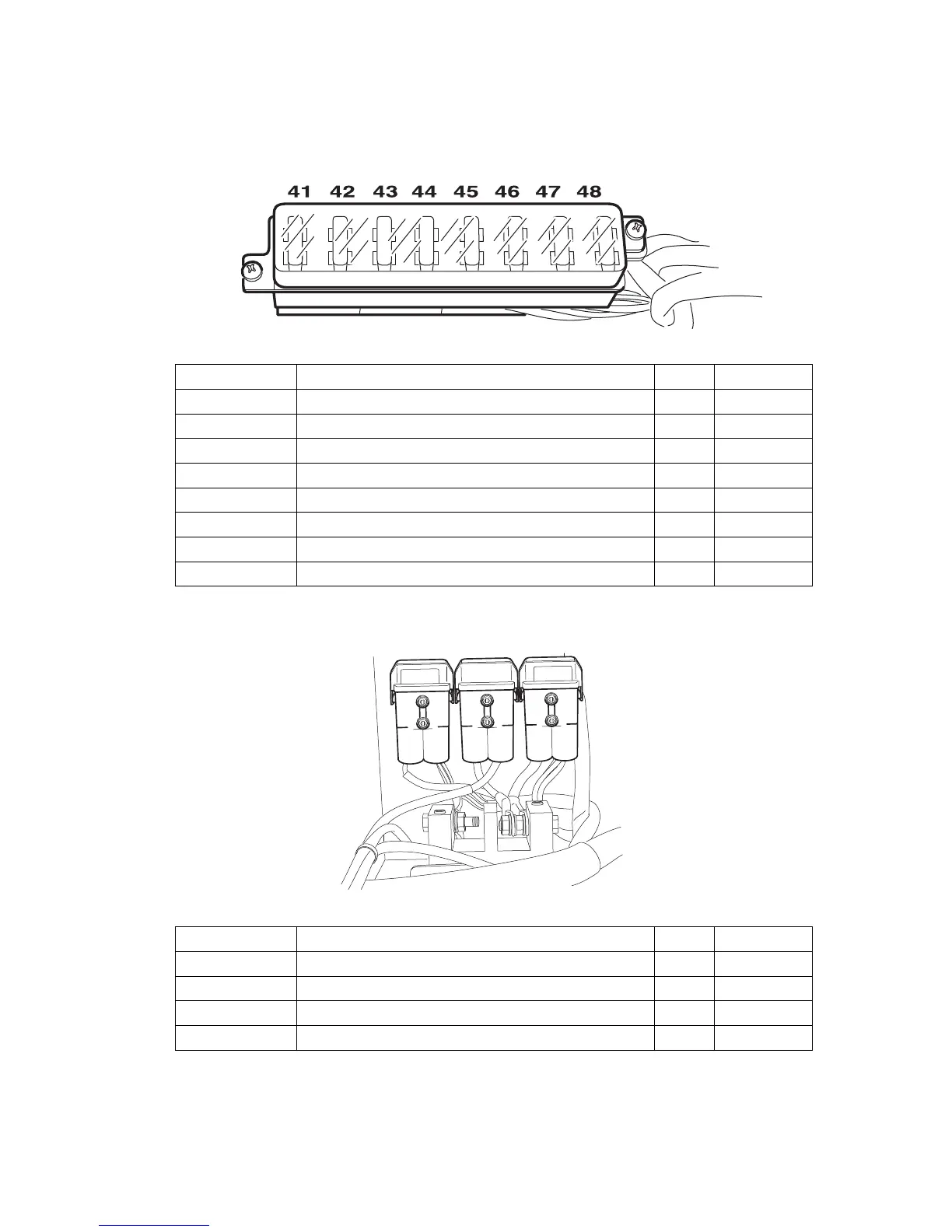

4.14.2 Fuse ratings in motor compartment for 4 + 6 cylinder diesel
Z All fuses (section 4.14.3 + see "Identification points and data plates" on page 38)
are located on the right side of the motor compartment as seen in travel direction
behind a Plexiglas window above the hydraulic reservoir.
Main fuses in the motor compartment
Component Electric circuit Rating (A)
F41 Front work lights on mast 15
F42 Transmission controller terminal 30 10
F43 Transmission controller terminal 30 15
F44 Option terminal 15 (X27:4) 10
F45 Particle filter alarm 5
F46 Valve block 10
F47 Engine controller terminal 30 5
F48 Transmission controller terminal 15 2
Component Electric circuit Rating (A)
FH1 Cab 80
FH2 Pre-glow relay +30 (4 cylinder diesel) 50
FH2 Pre-glow relay +30 (6 cylinder diesel) 80
FH3 Engine controller +30 30
