Juniper J-series Services Router J2320 User Manual

6. Locate the Crypto Module on the system board (see Figure 96 on page 204).
7. Using a Phillips screwdriver remove the screw, as shown in Figure 97 on page 205.

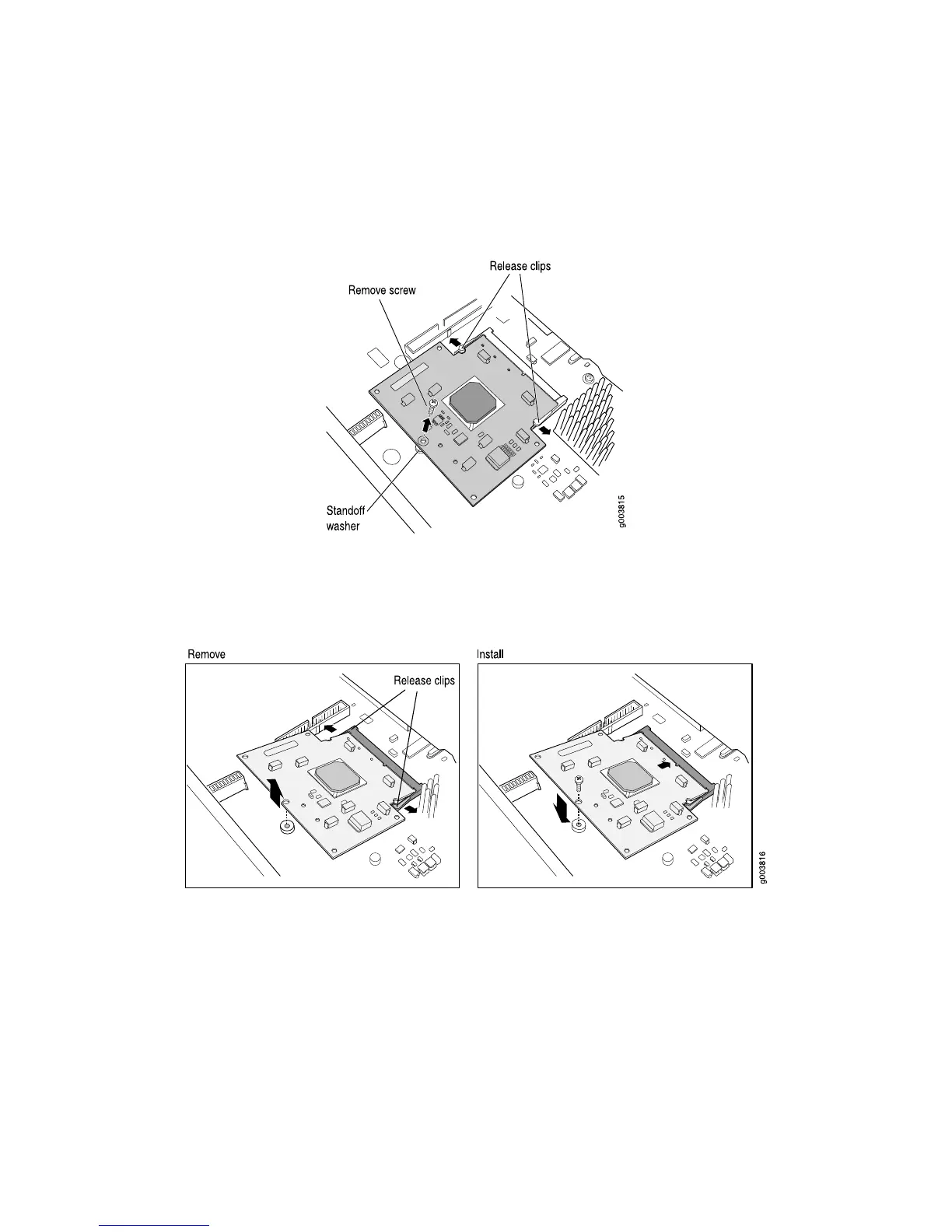

Figure 97: Removing a J4350 or J6350 Crypto Module Screw
8. Pull the white release clips on either side of the Crypto Module out to either side,
as shown in Figure 98 on page 205, to tilt the Crypto Module upward.
Figure 98: Removing and Installing a J4350 or J6350 Crypto Accelerator Module
9. Slide the Crypto Module out of its socket.
10. Remove the standoff washer that was under the Crypto Module.
11. Place the Crypto Module on the antistatic mat or in the electrostatic bag.
Installing a J4350 or j6350 Crypto Accelerator Module
To install a Crypto Accelerator Module:
1. Take the following steps if you have not already done so:
Replacing Crypto Accelerator Modules on J4350 and J6350 Routers ■ 205
Chapter 10: Replacing Hardware Components

Juniper J-series Services Router J2320 Specifications

General

Brand	Juniper
Model	J-series Services Router J2320
Category	Network Router
Language	English
