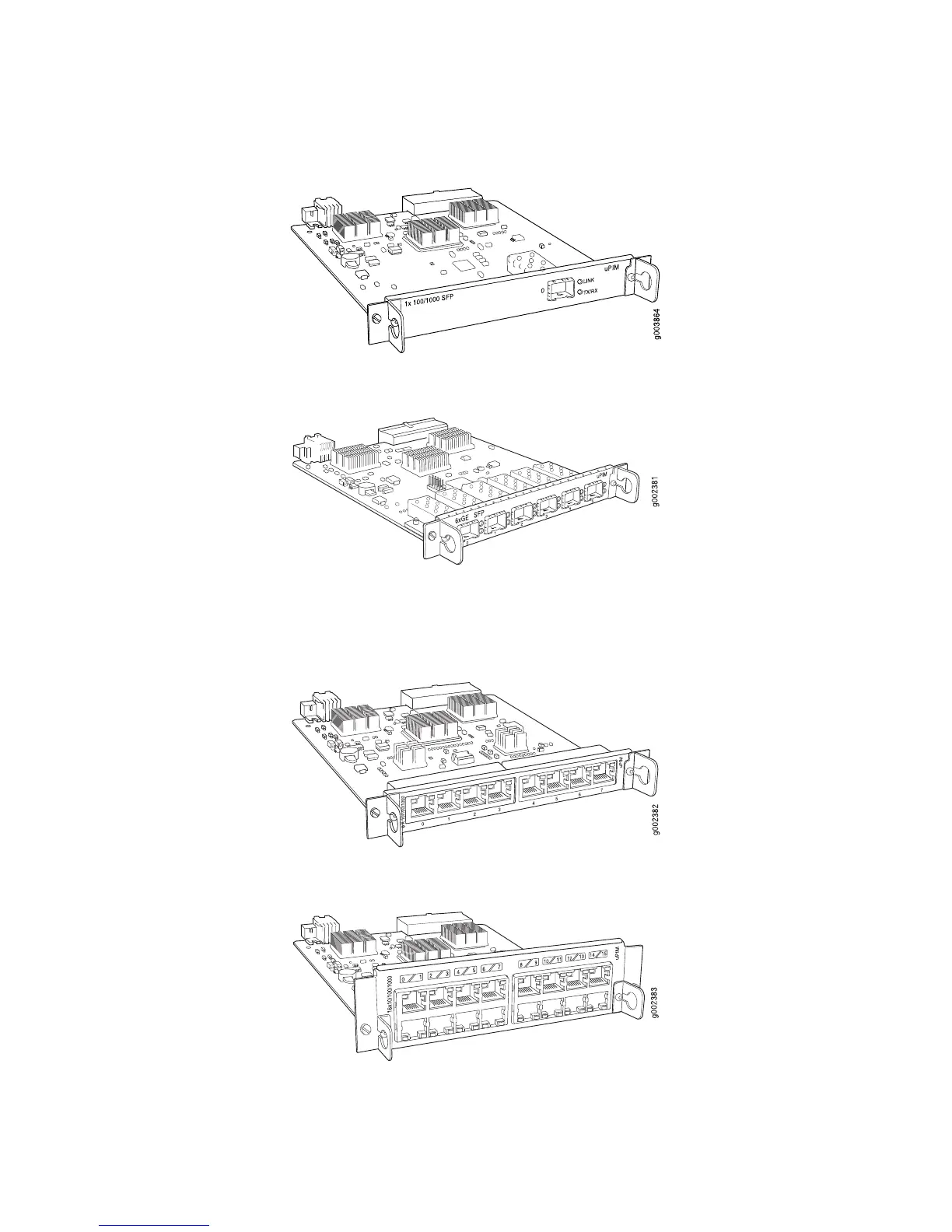

Figure 22: 1-Port Gigabit Ethernet uPIM
Figure 23: 6-Port Gigabit Ethernet uPIM
The 8-port and 16-port Gigabit Ethernet uPIMs, shown in Figure 24 on page 50 and
Figure 25 on page 50, have RJ-45 connectors.
Figure 24: 8-Port Gigabit Ethernet uPIM
Figure 25: 16-Port Gigabit Ethernet uPIM
50 ■ Field-Replaceable PIMs
J2320, J2350, J4350, and J6350 Services Router Getting Started Guide
