J-Web Layout
Each page of the J-Web interface is divided into the following panes, as shown in
Figure 45 on page 82.
■ Top pane—Displays identifying information and links.
■ Main pane—Location where you monitor, configure, diagnose, and manage the
Services Router by entering information in text boxes, making selections, and
clicking buttons.
■ Side pane—Displays subtasks of the Monitor, Configuration, Diagnose, or Manage
task currently displayed in the main pane. For the configuration editor, this pane
displays the hierarchy of configuration statements committed on the router.
Click an item to access it in the main pane.
■ Bottom pane—Displays copyright and trademark information.

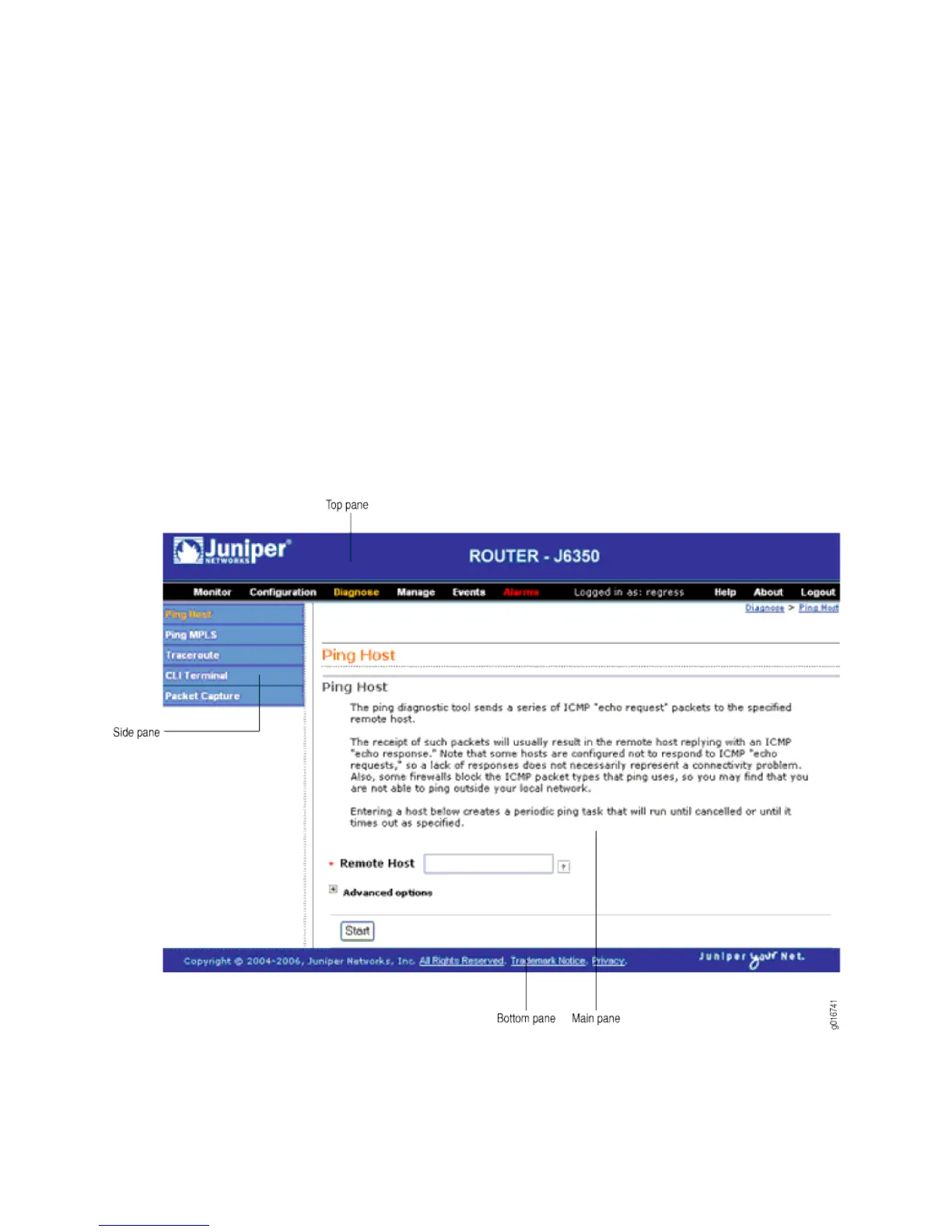

Figure 45: J-Web Layout
82 ■ Using the J-Web Interface
J2320, J2350, J4350, and J6350 Services Router Getting Started Guide
