Installing J2320 and J2350 Routers
WARNING: DC-powered Services Routers are intended for installation only in a
restricted access location.
You can center-mount or front-mount the J2320 and J2350 Services Routers in a
rack. In general, a center-mount rack is preferable to a front-mount rack because the
more even distribution of weight in the center-mount rack provides greater stability.
Many types of racks are acceptable, including four-post (telco) racks, enclosed
cabinets, and open-frame racks. For more information about the type of rack or
cabinet the J-series router can be installed into, see “Rack Requirements” on page 102.
WARNING: If you are installing multiple routers in one rack, install the lowest one
first and proceed upward in the rack. Install heavier routers in the lower part of the
rack. The router must be mounted at the bottom of the rack if it is the only unit in
the rack.
WARNING: The J2320 and J2350 chassis weighs between 14.8 lb (6.7 kg) and 18.2 lb
(8.3 kg). Read and follow the lifting guidelines in “Chassis Lifting
Guidelines” on page 263.
To install the J2320 and J2350 router into a rack:
1. If necessary, reposition the mounting brackets. You can position the brackets in
either the center or the front. Positioning the brackets in the center offers greater
stability.
J2320 and J2350 Services Routers come with mounting brackets installed on
them (see Figure 52 on page 117).

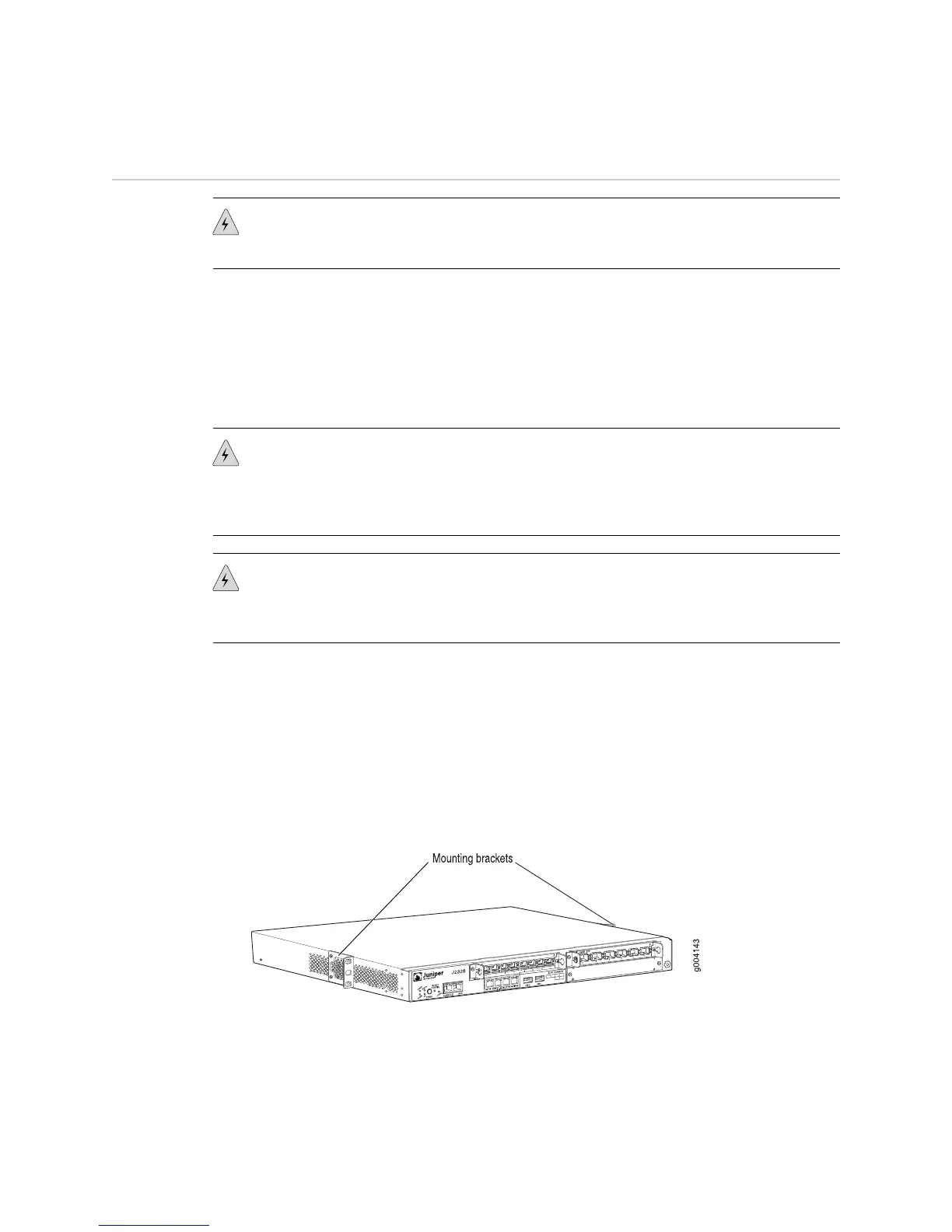

Figure 52: Mounting Brackets on J2320 and J2350 Routers
2. Have one person grasp the sides of the router, lift the router, and position it in
the rack.
Installing J2320 and J2350 Routers ■ 117
