5. With a Phillips screwdriver remove the flat head screws from the rear and sides
of the chassis.
6. Position the router so that you face the front panel.
7. Place your hands on the cover and press down while pushing the cover back
until the two front tabs disengage from the chassis base (see
Figure 73 on page 179).

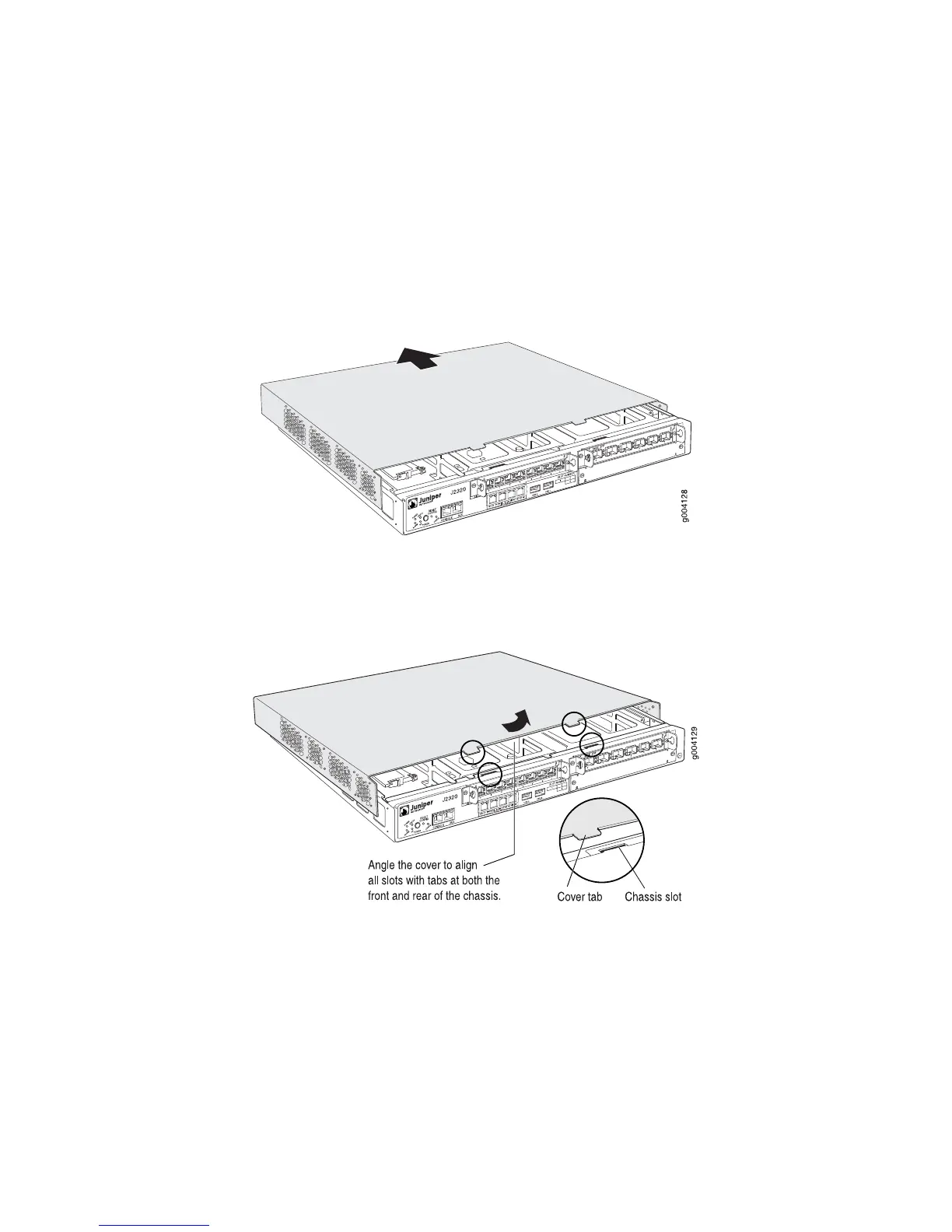

Figure 73: Sliding the Chassis Cover
8. Lift the cover upward and pull it away from the tabs on the rear of the chassis
(see Figure 74 on page 179).
Figure 74: Removing and Replacing the Chassis Cover
To replace the cover on the J2320 and J2350 chassis:
1. Lower the cover onto the chassis so that the front edge of the cover is a few
inches away from the front edge of the chassis base (see Figure 74 on page 179).
2. Tilt the cover and align the rear tabs with the slots at the bottom of the chassis
(see Figure 75 on page 180).
Removing and Replacing the Chassis Cover on J2320 and J2350 Routers â– 179
Chapter 10: Replacing Hardware Components
