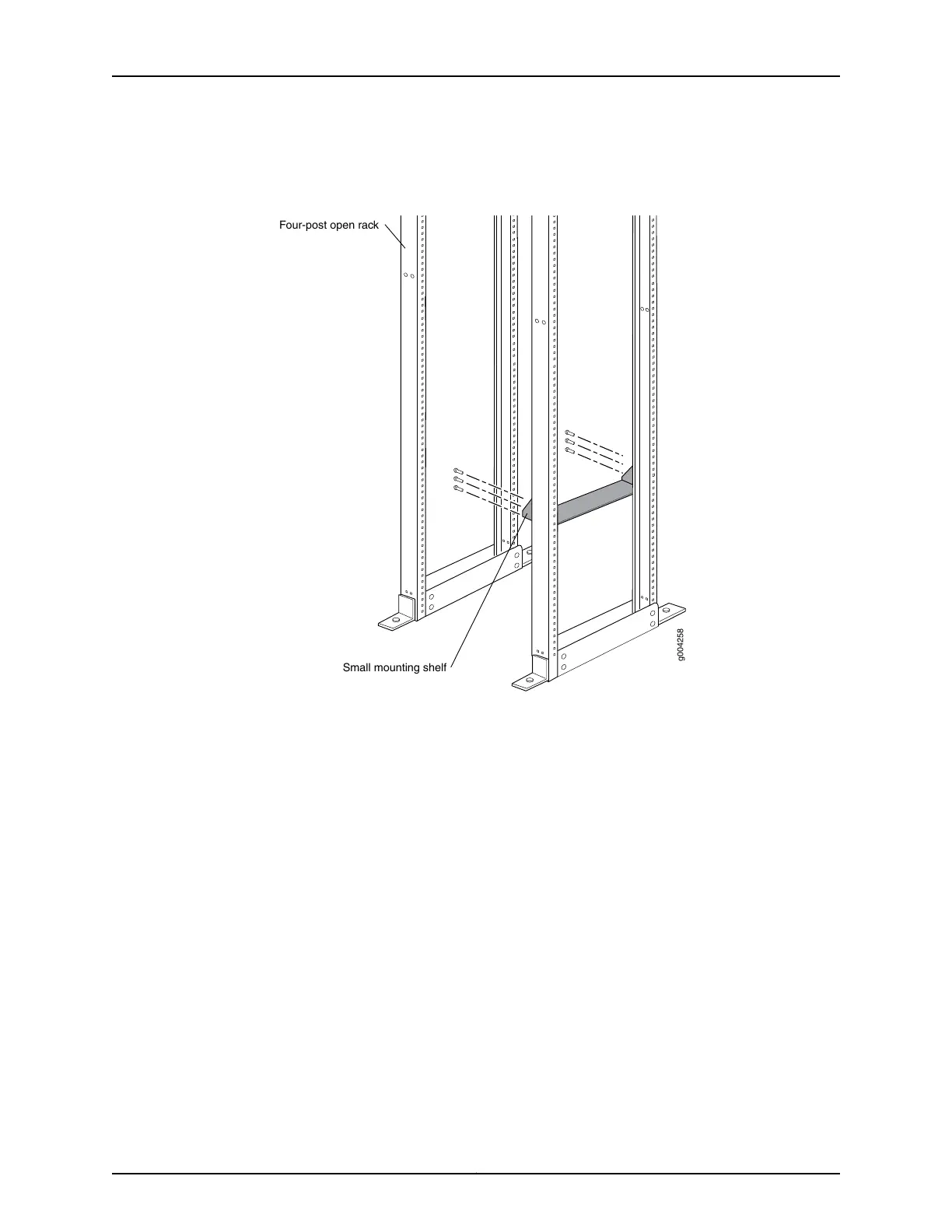

Figure 2: Mounting Hardware for a Four-Post Rack or Cabinet
g004258
Four-post open rack
Small mounting shelf
7Copyright © 2015, Juniper Networks, Inc.
Step 2: Install the Mounting Hardware in a Four-Post Rack or Cabinet or an Open-Frame Rack
