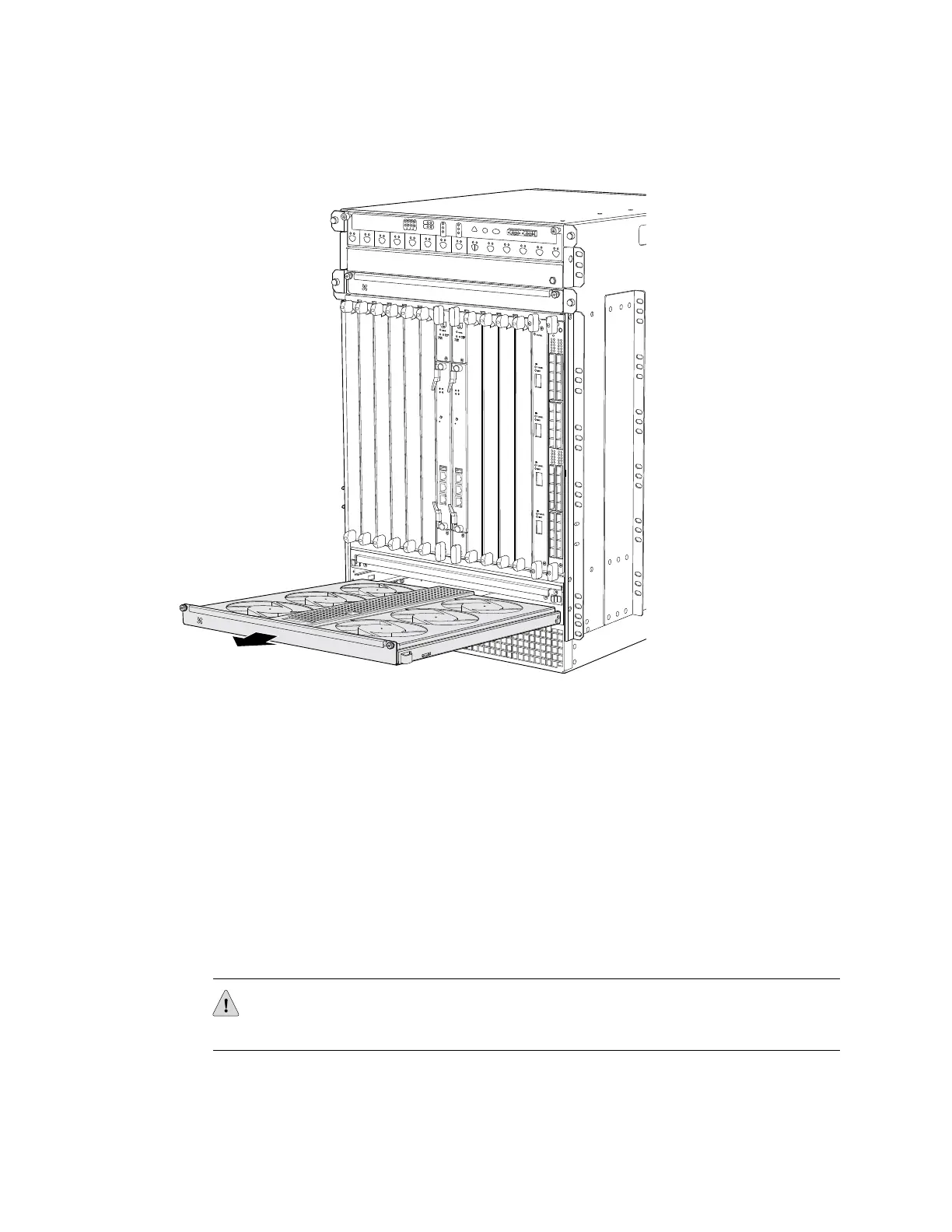

Figure 4: Removing a Lower Fan Tray
OK
0
F
AIL
ONLINE
OK
1
F
AIL
ONLINE
OK
2
F
AIL
ONLINE
OK
3
F
AIL
ONLINE
OK
4
F
AIL
ONLINE
OK
5
F
AIL
ONLINE
OK
0
F
AIL
ONLINE
MASTER
ONLINE
OFFLINE
RE0
F
AN
PEM
1
0
0
1
2
3
RE1
OK
1
F
AIL
ONLINE
OK
7
F
AIL
ONLINE
OK
8
F
AIL
ONLINE
OK
9
F
AIL
ONLINE
OK
10
F
AIL
ONLINE
OK
1
1
F
AIL
ONLINE
OK
2
6
F
AIL
ONLINE
ACO/L
T
YELLO
W ALARM
RED ALARM
NC
NO
C
NC
NO
C
1
0
1
0
1
0
1
0
1
0
1
1
0
0
1
0
1
0
1
0
g004044
Removing the SCBs Before Installing an MX960 Router Without a Lift
To remove the SCBs (see Figure 5):
1. Place an electrostatic bag or antistatic mat on a flat, stable surface.
2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and
connect the strap to an approved site ESD grounding point. See the instructions
for your site.
3. Rotate the ejector handles simultaneously counterclockwise to unseat the SCB.
4. Grasp the ejector handles, and slide the SCB about halfway out of the chassis.
5. Place one hand underneath the SCB to support it, and slide it completely out of
the chassis. Place it on the antistatic mat.
CAUTION: Do not stack hardware components on one another after you remove
them. Place each component on an antistatic mat resting on a stable, flat surface.
6. Repeat the procedure for each SCB.
Removing the SCBs Before Installing an MX960 Router Without a Lift ■ 5

Juniper MX960 Specifications

General

Power Supply	AC or DC
Redundancy	Yes
Operating System	Junos OS
Form Factor	Rack-mountable
Operating Humidity	5% to 90% non-condensing
Chassis Type	Modular
Slots	12
Interfaces/Ports	Varies with line cards
Operating Temperature	0°C to 40°C (32°F to 104°F)
Routing Engine	Redundant Routing Engines
Interfaces	Supports various interface modules
