Juniper SRX320 How To Set Up

How to Set Up Your SRX300 Services Gateway
6

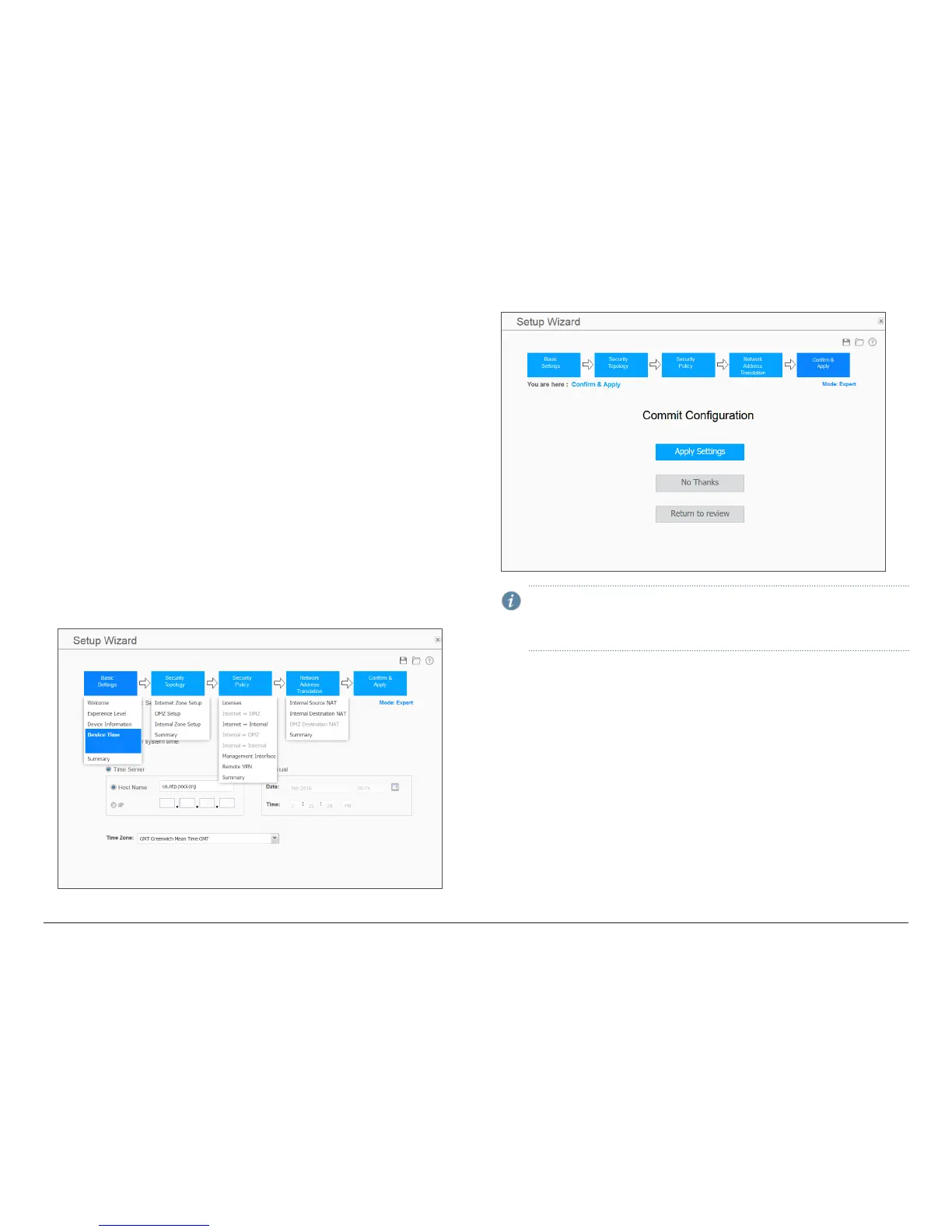

3. Configure the basic settings:
a. Device name
b. Password for the root account
c. Time
4. Configure the security topology:
a. Internet zone
b. Internal zones
c. DMZ
5. Configure the security policy:
a. Licenses
b. DMZ policy
c. Internal policy
d. Remote access
6. Configure Network Address Translation:
a. Source NAT
b. Destination NAT
7. Review the settings and click Apply Settings.
NOTE: Check the connectivity from the management device to the SRX
Series device. You might lose connectivity to the SRX Series device if you
have changed the management zone IP. Click the URL for reconnection
instructions on the Confirm & Apply page to reconnect, if required.
8. Click Done to complete the setup.

Juniper SRX320 Specifications

General

Firewall throughput	1000 Mbit/s
Number of users	50 user(s)
Quality of Service (QoS) support	Yes
Mobile VPN IPSec	250
IPS/IDS throughput	100 Mbit/s
USB 2.0 ports quantity	1
Connectivity technology	Wired
SFP module slots quantity	2
Ethernet LAN (RJ-45) ports	6
Internal memory	4000 MB
Flash memory	8000 MB
Storage media type	Flash
Power consumption (typical)	27 W
Heat dissipation	157 BTU/h
Concurrent connections	64000
Mean time between failures (MTBF)	284700 h
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Routing protocols	BGP, CLNS, IS-IS, OSPF, RIP-1, RIP-2

Weight and Dimensions

Weight	1510 g
Dimensions (WxDxH)	299.9 x 43.9 x 191 mm
