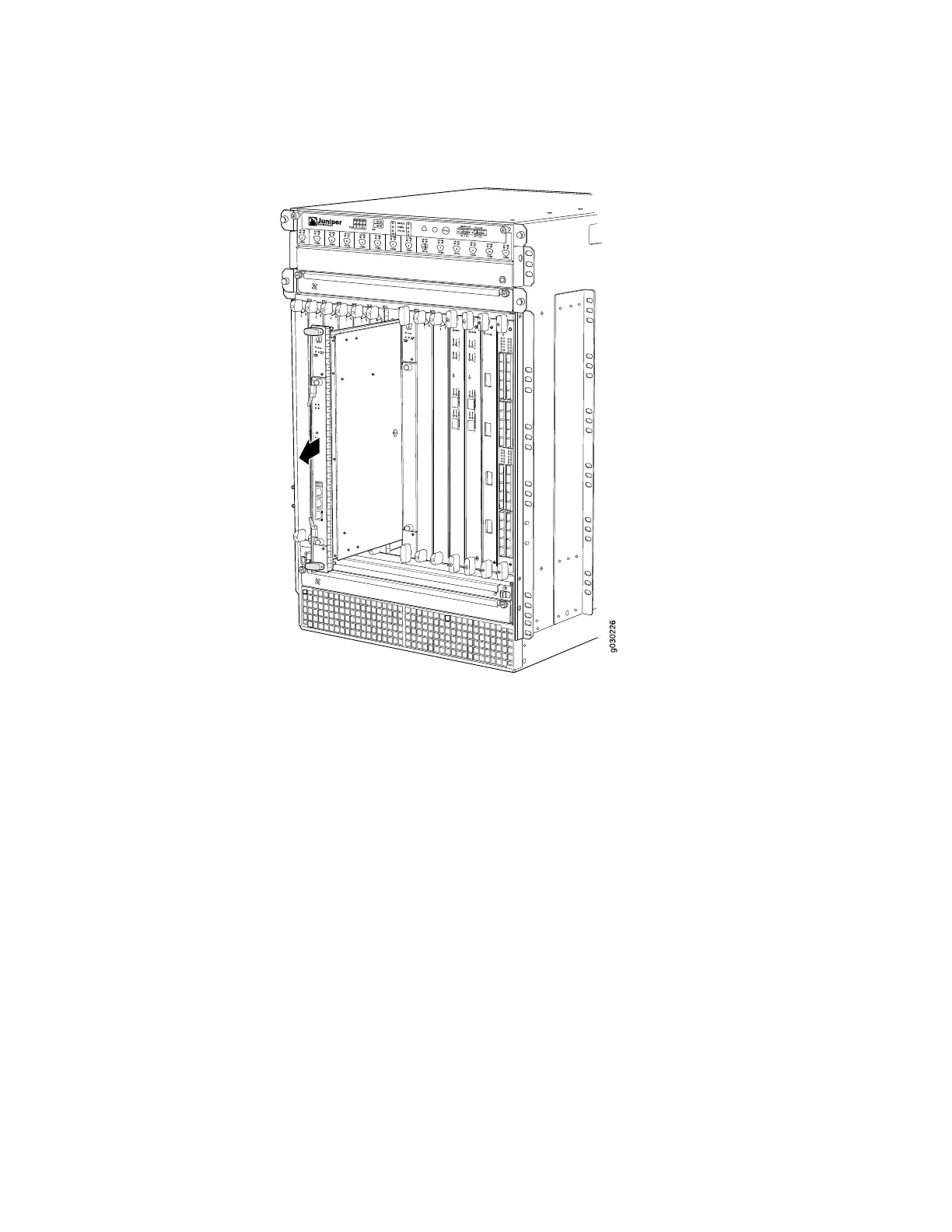

Figure 1: Removing an SCB
Installing an SRX5800 Services Gateway SCB
To install an SCB (see Figure 2):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and
connect the strap to one of the ESD points on the chassis.
2. Power-off the services gateway.
3. Carefully align the sides of the SCB with the guides inside the chassis.
4. Slide the SCB into the chassis until you feel resistance, carefully ensuring that it
is correctly aligned.
5. Grasp both ejector handles and rotate them simultaneously clockwise until the
SCB is fully seated.
6. Place the ejector handles in the proper position, vertically and toward the center
of the board.
7.
Power-on the services gateway. The OK LED on the power supply faceplate should
blink, then light steadily.
8. To verify that the SCB is functioning normally, check the LEDs on its faceplate.
The green OK/FAIL LED should light steadily a few minutes after the SCB is
installed. If the OK/FAIL LED is red, remove and install the SCB again. If the
2 ■ Installing an SRX5800 Services Gateway SCB
