P1

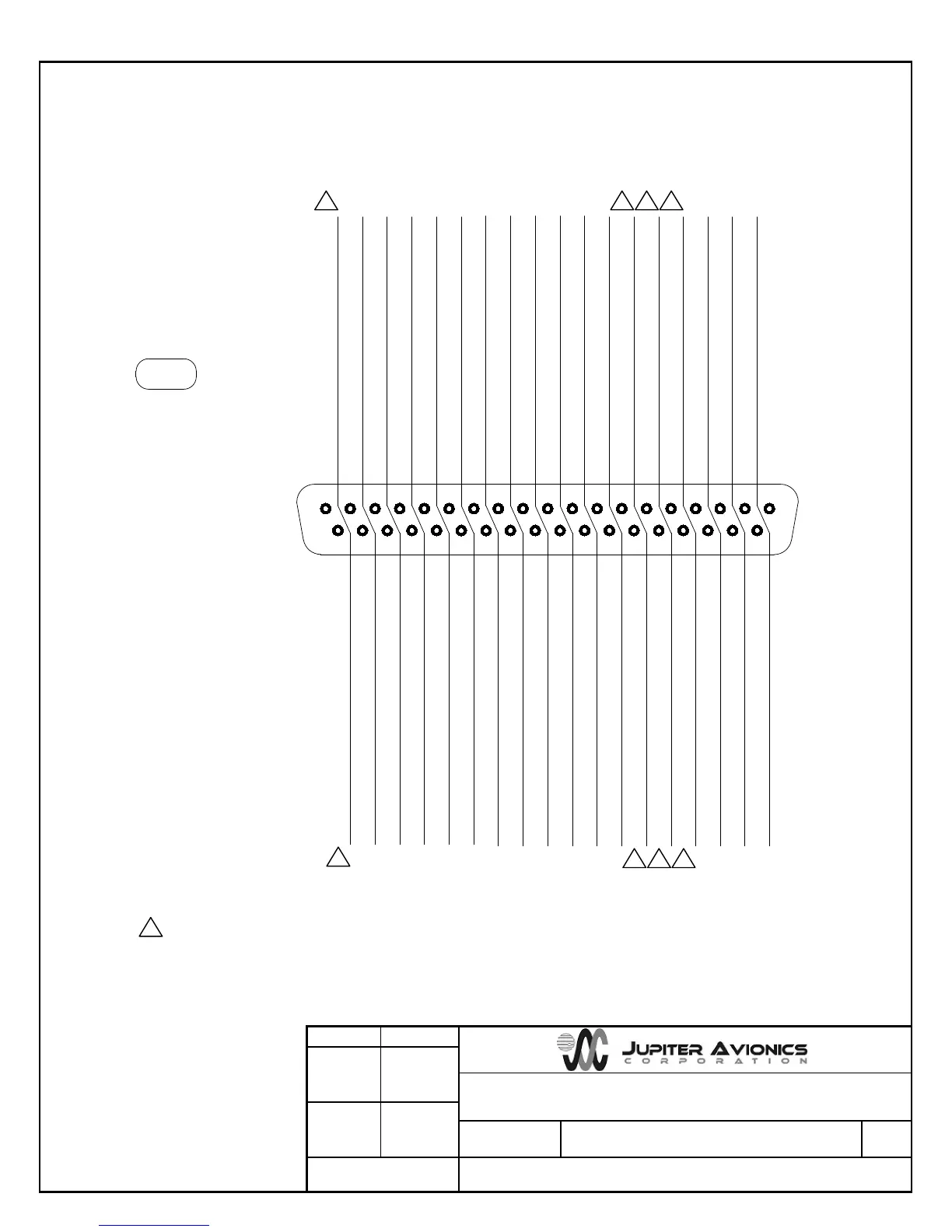

37 PIN FEMALE DMIN
MATING CONNECTOR
RECEIVE CONNECTOR
VIEW IS FROM REAR OF MATING CONNECTOR
1 1
1 1
NOTE:
1 CONFIGURABLE CONTACT
1 2 3 4 5 6 7 8 9 10 11 12 13
14
15 16 17
20 21 22 23 24 25 26 27 28 29 30 31 32
33
34 35
18 19
36 37
DIRECT AUDIO 1 HI / LEFT CVR HI COM 2 RX HI COM 1 RX HI COM 3 RX HI COM 4 RX HI COM 5 RX HI NAV 1 RX HI NAV 2 RX HI NAV 3 RX HI DIRECT AUDIO 3 HI NAV 4 RX HI COM 6 RX HI DIRECT AUDIO 2 HI / RIGHT CVR HI MUSIC LEFT HI / LEFT RX COMP OUT HI MUSIC RIGHT HI / RIGHT RX COMP OUT HI ICS TIE HI LEFT USER PHN HI RIGHT USER PHN HI LIGHTS INPUT
DIRECT AUDIO 1 LO / LEFT CVR LO COM 2 RX LO COM 1 RX LO COM 3 RX LO COM 4 RX LO COM 5 RX LO NAV 1 RX LO NAV 2 RX LO NAV 3 RX LO DIRECT AUDIO 3 LO NAV 4 RX LO COM 6 RX LO DIRECT AUDIO 2 LO / RIGHT CVR LO MUSIC LEFT LO / LEFT RX COMP OUT LO MUSIC RIGHT LO / RIGHT RX COMP OUT LO ICS TIE LO LEFT USER PHN LO RIGHT USER PHN LO
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Dual Audio Controller - NVG
P1 Connector Map
JA94-N01A 1/3
JA94-N01A Connector Map Rev A.dwg
TAT
