Jupiter Avionics JA94-N01A - Page 29

4 POLE MALE 3.5MM STEREO
TIP: TX DATA
1ST RING: RX DATA
2ND RING: GROUND
3RD RING: CONFIG AUDIO
ACCEPTS THE FOLLOWING PLUG FORMATS
JA99 CONFIGURATION CABLE
3 POLE MALE 3.5MM STEREO
TIP: LEFT MUSIC
1ST RING: RIGHT MUSIC
2ND RING: GROUND
MP3 STEREO PLAYER
4 POLE MALE 3.5MM STEREO
TIP: LEFT MUSIC
1ST RING: RIGHT MUSIC
2ND RING: GROUND
3RD RING: MICROPHONE
IPHONE
MATING PLUG NAMES JA94-N01A SIGNAL NAMES
CONFIG DATA TO JA94-N01A
CONFIG DATA FROM JA94-N01A
GROUND
MODE SELECT
FRONT PANEL MUSIC LEFT
FRONT PANEL MUSIC RIGHT
GROUND
FRONT PANEL MUSIC LEFT
FRONT PANEL MUSIC RIGHT
GROUND
MODE SELECT

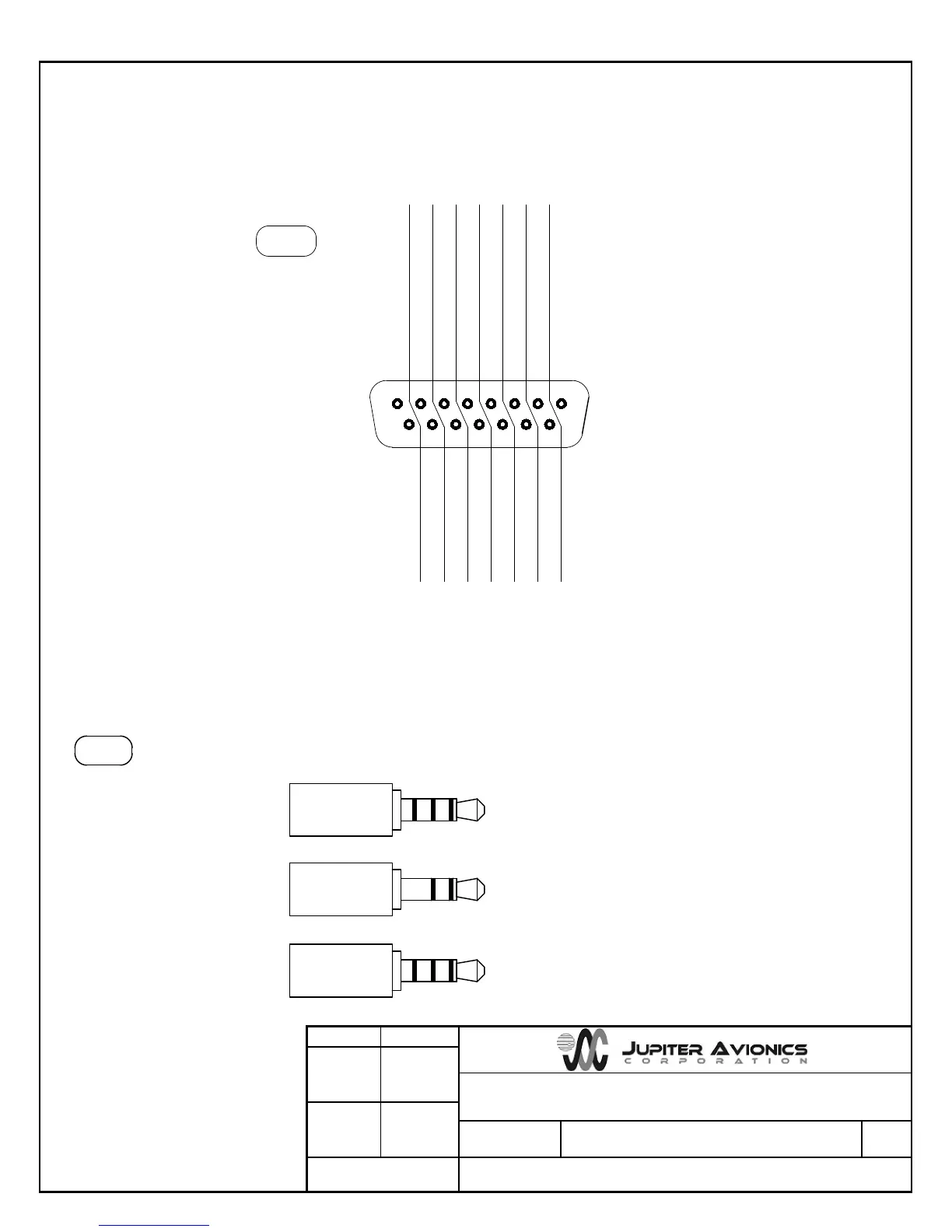

FRONT PANEL MUSIC/CONFIGURATION CONNECTOR
P4
JUPITER AVIONICS TEMPLATE AUTOCAD PORTRAIT SIZEA REV B.DWT
TITLE
APPROVED
PREPARED
CHECKED
L00N3
NCAGE CODE PART NO. SHEET
DOC NO.
CONFIDENTIAL & PROPRIETARY
TO JUPITER AVIONICS CORP.
Dual Audio Controller - NVG
P3, P4 Connector Map
JA94-N01A 3/3
JA94-N01A Connector Map Rev A.dwg
TAT
VIEW IS FROM REAR OF MATING CONNECTOR
P3
15 PIN FEMALE DMIN
MATING CONNECTOR
REMOTE TX SELECTOR CONNECTOR
1 2 3 4 5
9 10 11 12
COM 1 REMOTE TX SELECT COM 2 REMOTE TX SELECT COM 3 REMOTE TX SELECT COM 4 REMOTE TX SELECT
PAX 1 ICS PTT PAX 2 ICS PTT PAX 3 ICS PTT PAX 4 ICS PTT
6 7 8
14 1513
PAX 2 TX PTT COM 5 REMOTE TX SELECT COM 6 REMOTE TX SELECT PAX 1 TX PTT
PAX 5 ICS PTT PAX 6 ICS PTT ICS ISOLATE MODE
