Jura ENA 3 Disassembling Manual

Elektroapparate AG
Disassembling manual
Technical Support
Language E
ENA 3 / ENA 5

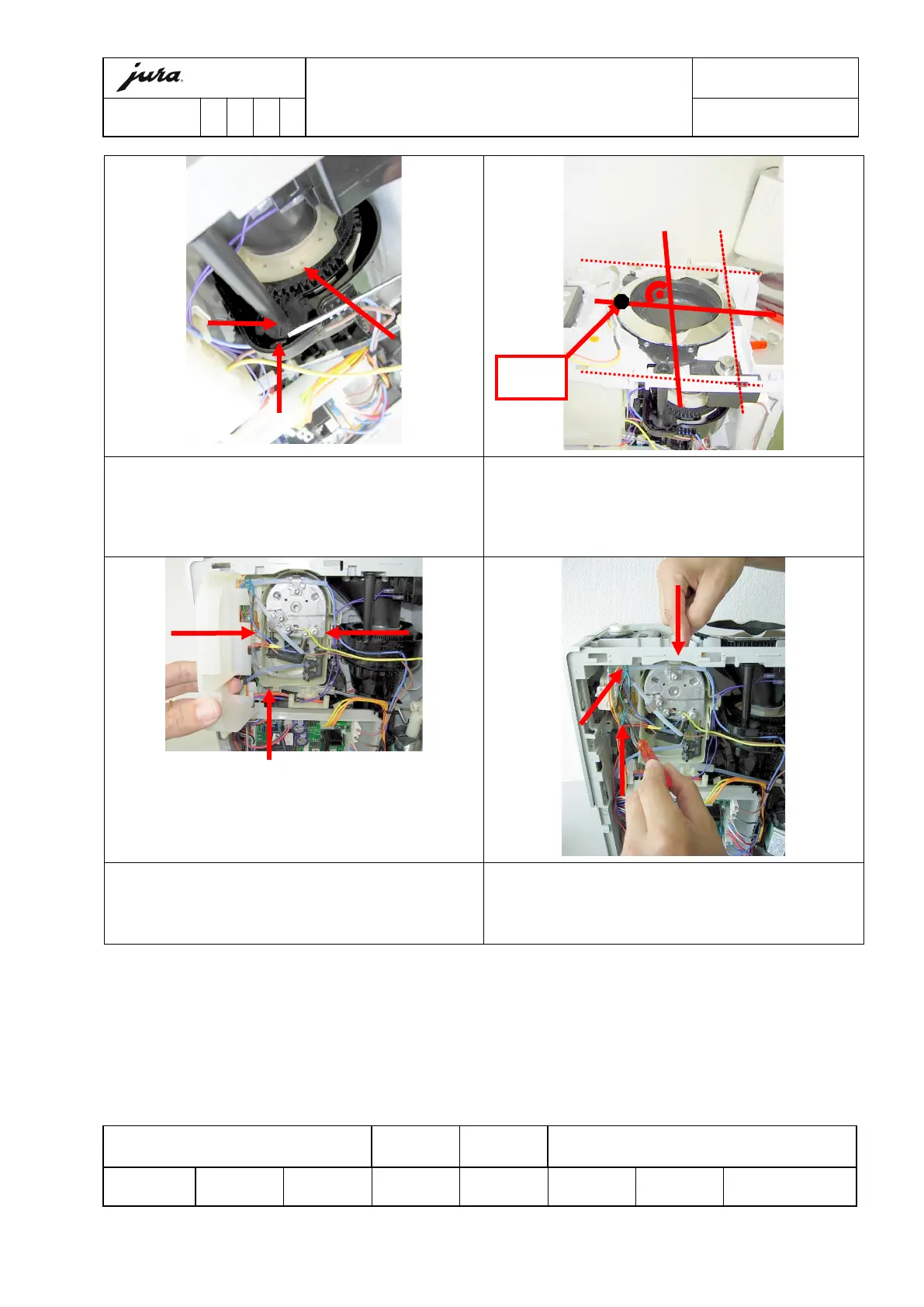

55/ When re-inserting check the proper marks
for the setting:
 Grinder unit has coloured marks
 Adjusting axe has fixed marks
56/ When re-inserting check the proper marks
for the setting:
 Depression of the grinder adjusting ring is in
parallel to the case and 90° to the spot of the
grinder adjusting ring
57/ Release the 3 snap-locks of thermoblock cover 58/ Removing thermoblock support:
Unscrew 2x TORX 15 and release snap-lock
Author: Patrik Studer Checked: Approved: Docu.-name: Ena Disassemble Manual.doc
C:\Users\Admin\Documents\Jura Manuals\Ena\ENA 5\Ena
Disassemble Manual.doc
Date: Rev. A: Rev. B: Rev. C: Rev. D: Rev. E: Rev. F:
18.10.2007 26.10.2007
Page 11/15
