Jura ENA 3 Disassembling Manual

Elektroapparate AG
Disassembling manual
Technical Support
Language E
ENA 3 / ENA 5

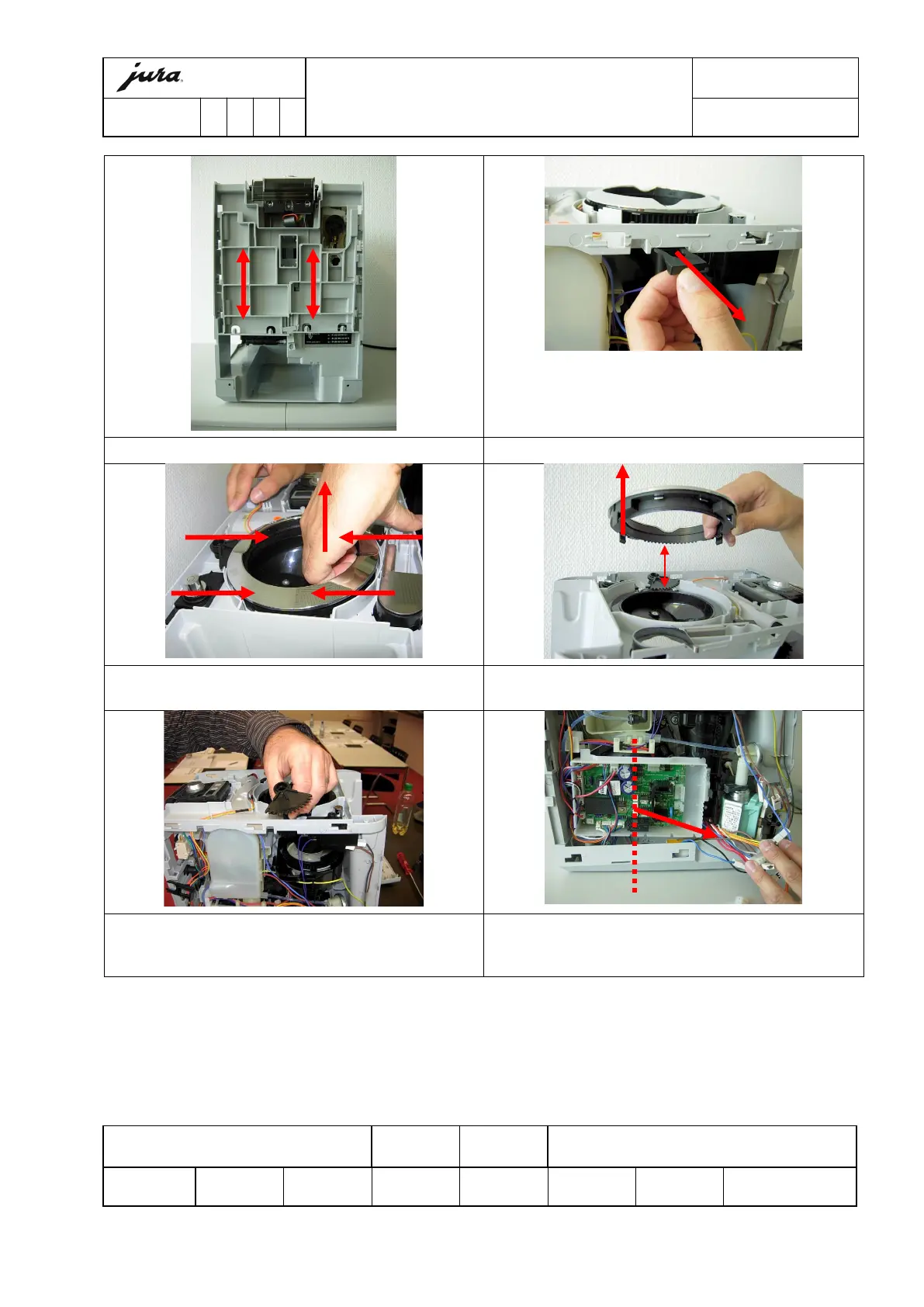

45/ View of disassembled front 46/ Remove fixation of grinder adjuster towards you
47/ Release 4x snap-locks of the grinder adjusting
ring upwards
48/ Grinder adjusting ring disassembled:
 Indentation to indentation
49/ Pull out axe to grinder adjuster 50/ Removing power/-logic print:
 Release all cable connectors on the right
(See connector positions on page 15)
Author: Patrik Studer Checked: Approved: Docu.-name: Ena Disassemble Manual.doc
C:\Users\Admin\Documents\Jura Manuals\Ena\ENA 5\Ena
Disassemble Manual.doc
Date: Rev. A: Rev. B: Rev. C: Rev. D: Rev. E: Rev. F:
18.10.2007 26.10.2007
Page 9/15

Jura ENA 3 Specifications

General

Type	Coffee
Dimensions (WxDxH)	238 x 360 x 445 mm
Product type	Espresso machine
Capacity in cups	10 cups
Anti-drip function	Yes
Water tank capacity	1.1 L
Maximum operating pressure	15 bar
Lid type	Hinged lid
Product color	Black
Multi beverage	No

Weight and Dimensions

Weight	9300 g
