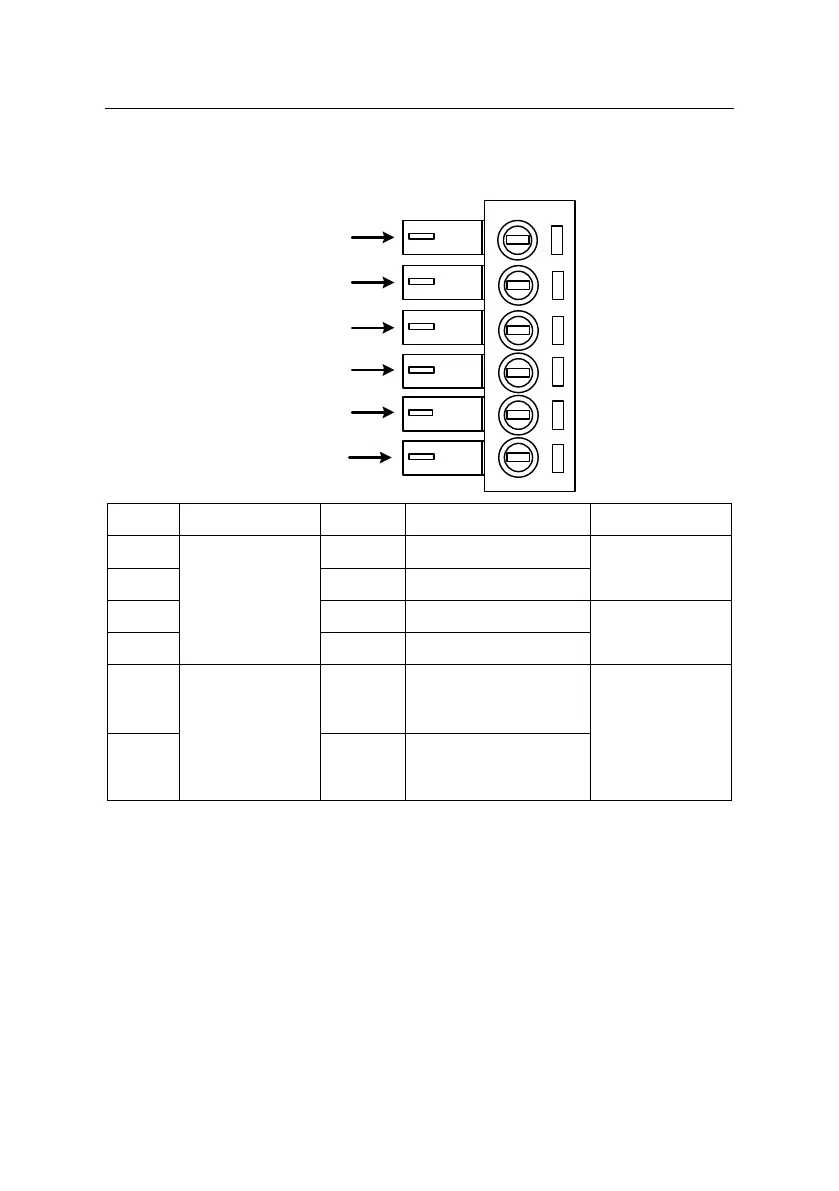

3.3 Power Interface Ports
5
6
1
2
3
4
Port
Identification
Symbol
Name
Remark
1
Motor Phase
Wire Input Ports
A+
Phase A+
Motor Phase A
2
A-
Phase A-
3
B+
Phase B+
Motor Phase B
4
B-
Phase B-
5
Power Input
Ports
VCC
Input Power +
AC24V-80V
DC30V-110V
6
GND
Input Power-
