8 Juvent 1000 Instruction Manual
4. The cables for the RFID unit are to be
run down the outside of the center pole,
on the side facing away from the user.
Secure the cables with approximately
4 inches of the Velcro supplied.
(Figure 4)
NOTE: Do not make the bend too tight
in the cables exiting the RFID unit.
5. As the cables exit the RFID unit,
position the cables as shown in Figure
5, using more lengths of Velcro.
6. Continue by fastening the cables in the
center of the middle pole. Fasten the
cables near the base of the pole. Peel
the liner of the double sided tape on
back of the power supply and place onto
the bar. Affix power supply with two
longer Velcro strips.
(Figure 6 and 7)
Route the power supply cable through
the retaining clip as shown.
(Figure 8)

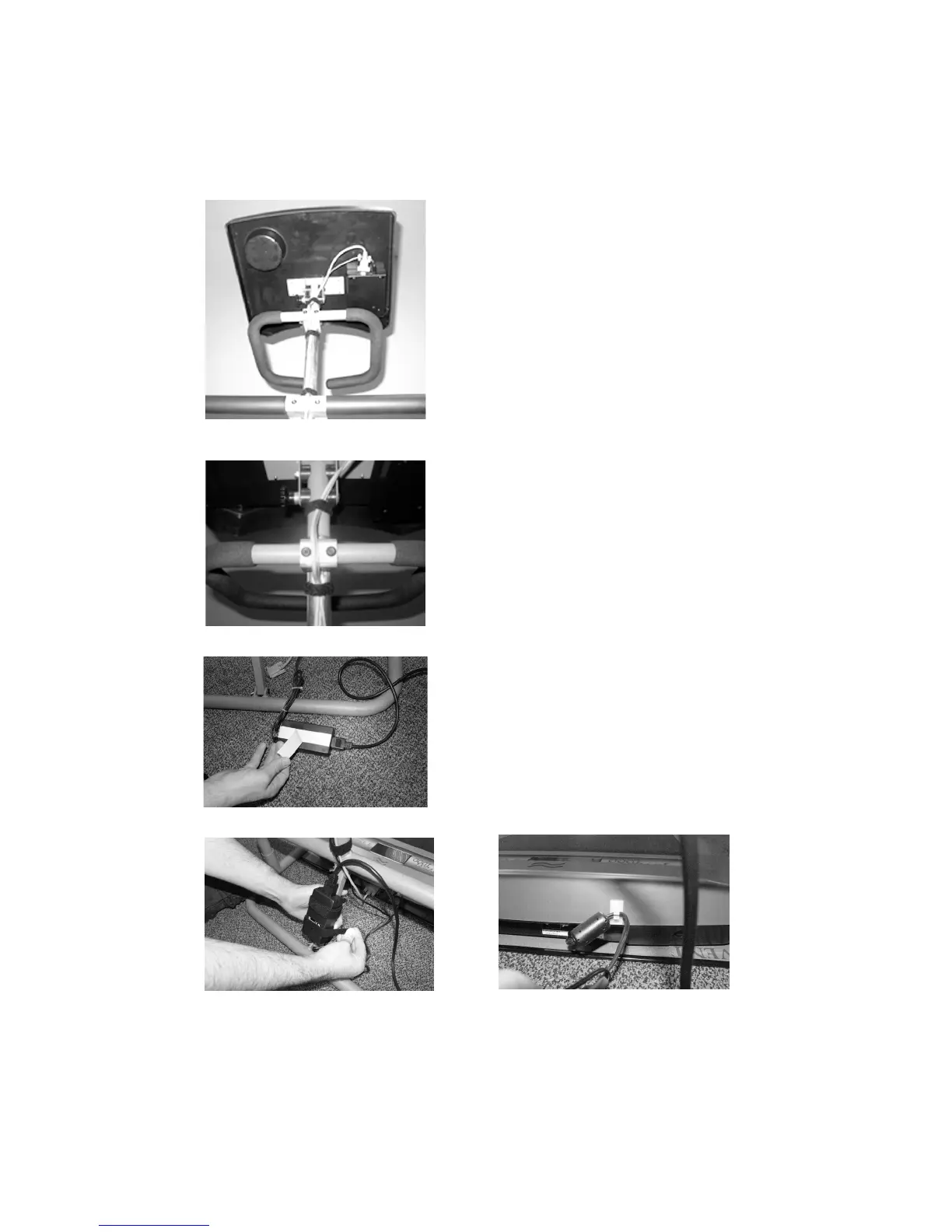

Figure 4
Figure 5
Figure 6
Figure 7 Figure 8
