JVC AV-32230 - Main Difference List; How to Identify Models

6 No. 51802
AV-32230
AV-32260

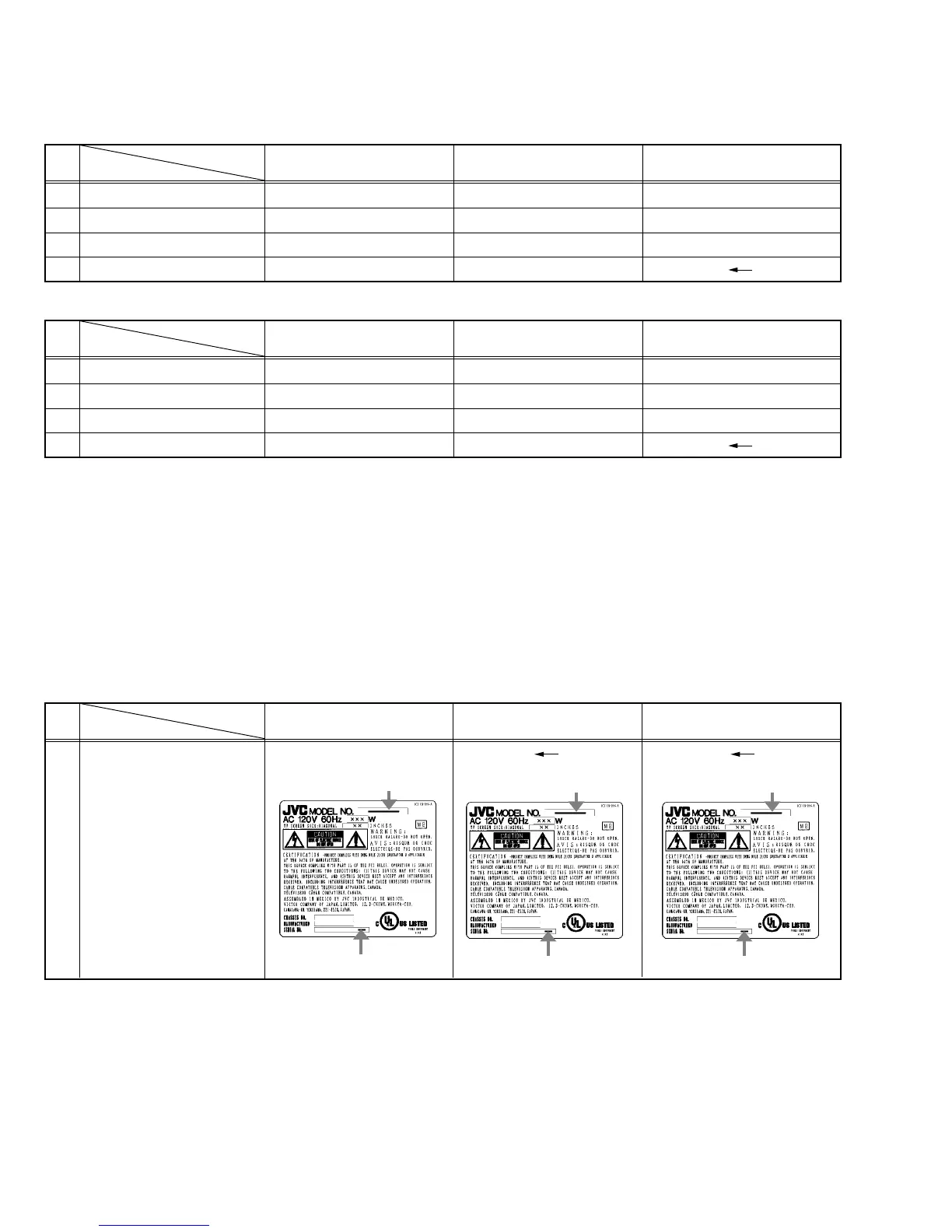

MAIN DIFFERENCE LIST
HOW TO IDENTIFY MODELS
Model
Part name
AV-32260/G AV-32260/H AV-32260/M
MAIN PWB SAC-1529A-M2 SAC-1530A-M2 SAC-1531A-M2
CRT SOCKET PWB SAC-3508A-M2 SAC-3509A-M2 SAC-3510A-M2
! PICTURE TUBE A80QCF240X14L A80LJF30X08-G M80JUA061X06
! DEG. COIL QQW0086-001 CELD066-002JA
!
[AV-32260/G & AV-32260/H & AV-32260/M]
Model
Part name
AV-32230/G AV-32230/H AV-32230/M
MAIN PWB SAC-1535A-M2 SAC-1536A-M2 SAC-1537A-M2
CRT SOCKET PWB SAC-3508A-M2 SAC-3509A-M2 SAC-3510A-M2
! PICTRE TUBE A80QCF240X14L A80LJF30X08-G M80JUA061X06
! DEG. COIL QQW0086-001 CELD066-002JA
!
[AV-32230/G & AV-32230/H & AV-32230/M]
Model
Part name
AV-32230/G AV-32230/H AV-32230/M
! RATING LABEL LC31139-001A-A
!
-------------------------------------------------------------------------------------------------------------------------------------
•
The difference between AV-32230/G , AV-32230/H and AV-32230/M is in the PICTURE TUBE.
As the result of the difference in PICTURE TUBE, the MAIN PWB also differ.
INDICATED AV-32230
INDICATED “G”
INDICATED AV-32230
INDICATED “H”
INDICATED AV-32230
INDICATED “M”
