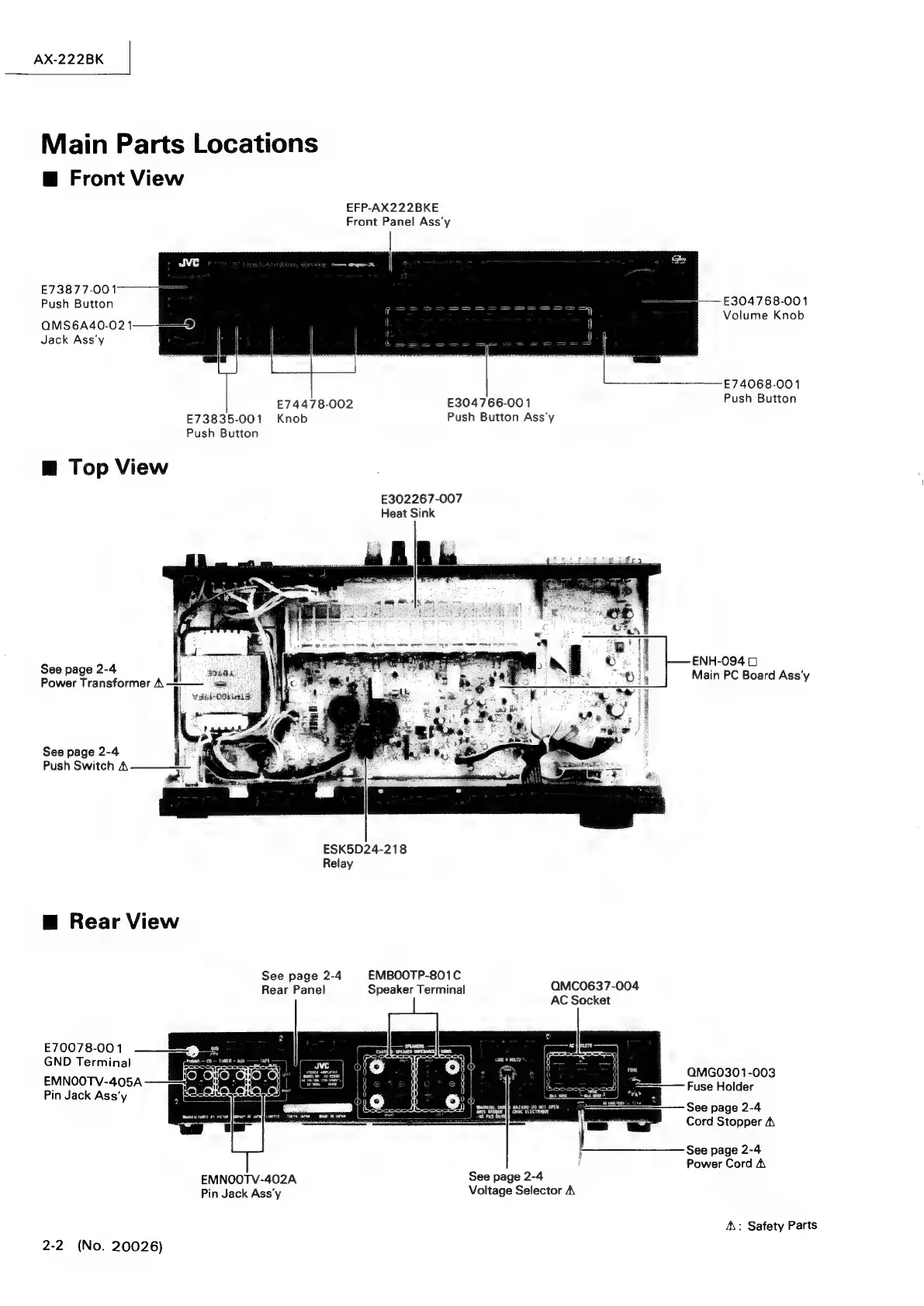

Main Parts Locations
@ Front View
EFP-AX222BKE
Front Panel Ass’y
E73877-001
Push Button
QMS6A40-02 1——gaey
E304768-001
Volume Knob
Jack Ass’y Wate ley a ae ee eB ee
£74068-001
E74478-002
E304766-001
Push
Button
E73835-001 Knob Push Button Ass‘y
Push Button
m@ Top View
E302267-007
Heat Sink
See
page
2-4
A
M404)
:
ENH-094
0
Main PC Board Ass’y
a
Power Transformer A — oe 4
to waubOOHals
t i
See page 2-4
Push Switch A
ESK5D24-218
Relay
m@ Rear View
See page 2-4 EMBOOTP-801C
Rear Panel Speaker Terminal QMC0637-004
AC Socket
E70078-001
GND
Terminal
QMG0301-003
EMNOOTV-405A
Fuse
Holder
Pin Jack Ass‘y
munemoe F = See page 2-4
= caer —— , ; Cord Stopper A
See page 2-4
Power Cord A
EMNOOTV-402A
See
page
2-4
Pin
Jack
Ass’y
Voltage
Selector
A
A: Safety Parts
