4. Remove the three screws of the rear panel holding the
DAC PC board.
5. Disconnect all the flat wires from the connectors on
the DAC PC board.
6. Remove the six plastic rivets fixing the DAC PC board
to the chassis.
@ Disconnecting the Analog Input PC Board
1. Remove the top cover.
2. Remove the bottom cover.
3. Remove the five screws fixing the pin jacks on the rear
parel.
4. Disconnect the flat wires from the connectors on the
analog input PC board.
5. Remove the two plastic rivets and detach the analog
input PC board from the chassis. (Figure 4)
Note: For reinstalling the board, it seems difficult to in-
sert the plastic rivets into the board as they were.
In that case, insert them from the side frame.
@ Disconnecting the Motor Control input
Board
. Remove the front panel.
. Detach the bass control and balance contro! knobs.
3. Remove the nut and screw fixing the shaft of the
volume control.
4. Remove two screws fixing the shield plate to the
chassis.
5. Remove two plastic rivets fixing the board to the
bracket.
6. Disconnect the flat wire from the connector on the
motor control input board, and unsolder FW552.
(Figure 5)
N=
Disconnecting the Power Amplifier PC
Board and the Power Transistors
. Remove the top cover.
. Remove the bottom cover.
. Remove the eight screws fixing the power amplifier
PC board and the heat sink to the heat sink bracket.
. Unsolder the eight power transistors.
. Remove the eight nuts fixing the power transistors by
a wrench.
WN =
as
Disconnecting the Relay PC Board
1. Remove the top cover.
2. Remove the bottom cover.
3. Remove the twenty three screws and take out the rear
panel. (Figure 6)

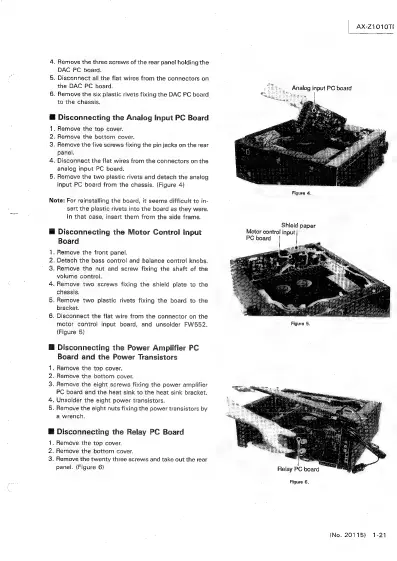

AX-Z1010TI
Analog input PC board
2k
Figure 4,
Shield paper
Motor control input |
PC board
Figure 5.
lai
Relay PC board
Figure 6.
{No. 20115) 1-21
