X-Z1010TN

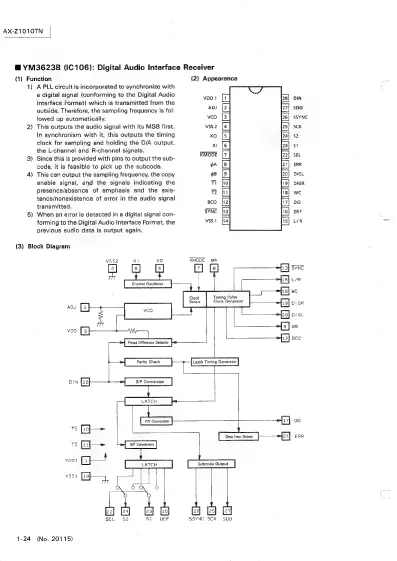

@ YM3623B (IC 106): Digital Audio Interface Receiver
(1) Function
1) APLL circuit is incorporated to synchronize with
a digital signal {conforming to the Digital Audio
Interface Format) which is transmitted from the
outside. Therefore, the sampling frequency is fol-
lowed up automatically.
2) This outputs the audio signal with its MSB first.
In synchronism with it, this outputs the timing
clock for sampling and holding the D/A output,
the L-channel and R-channel signals.
3) Since this is provided with pins to output the sub-
code, it is feasible to pick up the subcode.
4) This can output the sampling frequency, the copy
enable signal, and the signals indicating the
presence/absence of emphasis and the exis-
tence/nonexistence of error in the audio signal
transmitted.
5) When an error is detected in a digital signal con-
forming to the Digital Audio Interface Format, the
previous audio data is output again.
{3) Block Diagram
vsse xd xo
Crystal Oscillator
ADU
vco
Phase Difference Detector
Parity Check
‘S/P Conversion
(2) Appearance
vDD4 DIN
AD) spo
veo SSYNC
VSS 2 sck
xo s2
xl s4
KMODE SEL
ga ERR
$B DIGL
Ti DIGR
72 we
BCO DO
SYNC DEF
vss1 u/R ~
KMODE @A
L/R
wo
Clock Timing Pulse
Select Clock Generator DIGR
Latch Timing Generator
VDO1
VSS1
1-24 (No. 20115)
fi] 0
SSYNC SCK SDO
