JVC BM-H2000PN Service Manual

BM-H2000PN

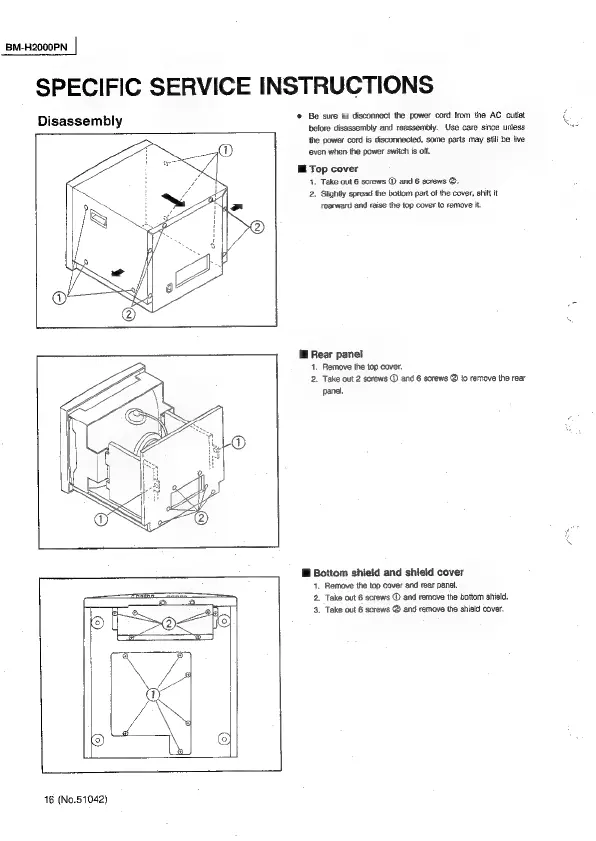

SPECIFIC SERVICE INSTRUCTIONS
Disassembly
16 (No.51042)
* Be sure to disconnect the power cord from the AC cutlet
before disassembly and reassembly. Use care since unless
the power cord is disconnected, some parts may still be live
‘even when the power switch is off.
i Top cover
4. Take out 6 screws @ and 6 screws @.
2. Slightly spread the bottom part of the cover, shift it
rearward and raise the top cover to remove it,
@ Rear panei
1. Remove the top cover.
2. Take out 2 screws @ and 6 screws @ to remove the rear
panel.
Bi Bottom shield and shield cover
1. Remove the top cover and rear panel.
2. Take out 6 screws @ and remove the bottom shield.
3. Take out 6 screws @ and remove the shield cover.
