JVC BM-H2000PN Service Manual

BM-H2000PN

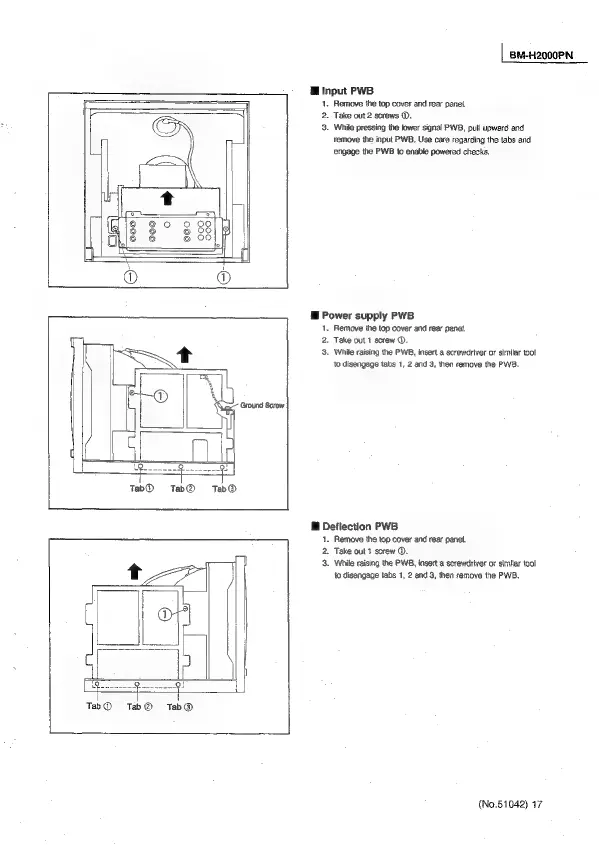

@ Input PWB
1, Remove the top cover and rear panel.
2. Take out 2 screws @.
8. While pressing the lower signal PWB, pull upward and
remove the input PWB. Use care regarding the tabs and
engage the PWB to enable powered checks.
i Power supply PWB
1, Remove the top cover and rear panel.
2. Take out 1 screw @.
3. While raising the PWB, insert a screwdriver or similar tool
to disengage tabs 1, 2 and 3, then remove the PWB.
Tab@ Tab@
@ Deflection PWB
1. Remove the top cover and rear panel.
2. Take out 1 screw O.
3. While raising the PW, insert a screwdriver or similar tool
tT i to disengage tabs 1, 2 and 3, then remove the PWB.
(No.51042) 17
