JVC BM-H2000PN Service Manual

BM-H2000PN

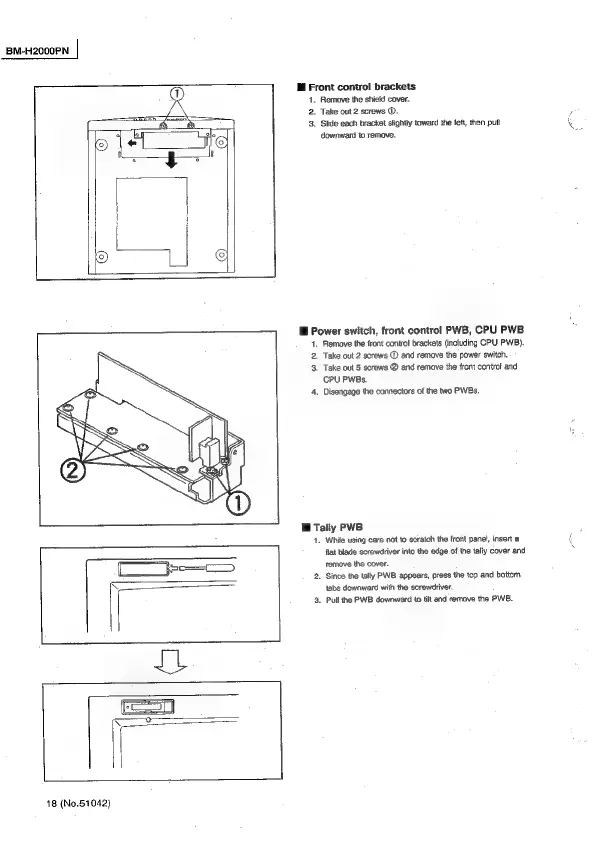

Mi Front contro! brackets
[ 1. Remove the shield cover.
2. Take out 2 screws ©.
3. Slide each bracket slightly toward the left, then pull
downward to remove.
@ Power switch, front control PWB, CPU PWB
14. Remove the front control brackets (including CPU PWB).
2. Take out 2 screws © and remove the power switch.
3. Take out 5 screws @ and remove the front contro and
CPU PWBs.
4. Disengage the connectors of the two PWBs.
Tally PWB
1. While using care not to scratch the front panet, insert a
flat blade screwdriver into the edge of the tally cover and
remove the cover.
2. Since the tally PWB appears, press the top and bottom
tabs downward with the screwdriver.
3. Pull the PWB downward to filt and remove the PWB.
18 (No.51042}
