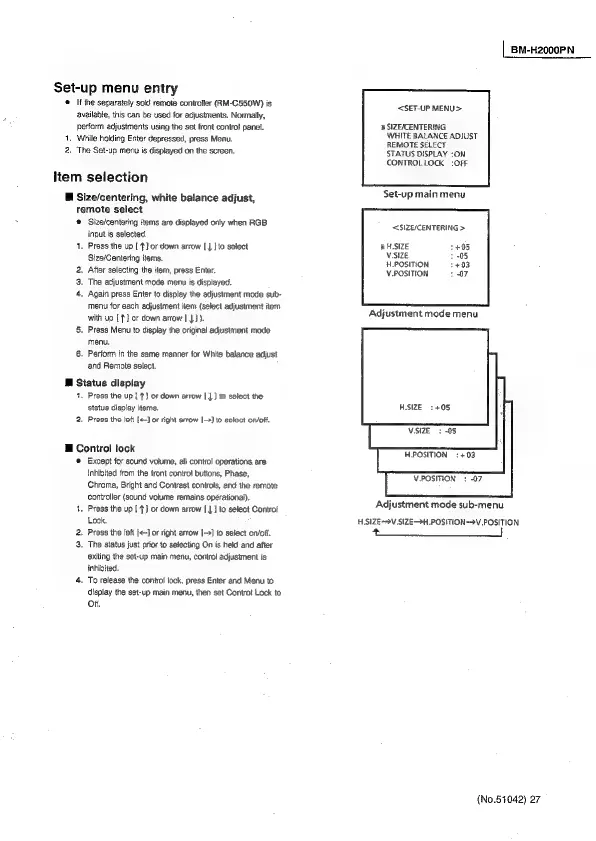

Set-up menu entry
If the separately sold remote controller (RM-C550W) is
available, this can be used for adjustments. Normally,
perform adjustments using the set front contro! panel.
. While holding Enter depressed, press Menu.
. The Set-up menu is displayed on the screen.
Item selection
fi Size/centering, white balance adjust,
remote select
© Size/centering items are displayed only when RGB
input is selected.
1. Press the up [ T] or down arrow [ | | to select
Size/Centering items.
2. After selecting the item, press Enter.
3. The adjustment mode menu is displayed.
4, Again press Enter to display the adjustment mode sub-
menu for each adjustment item (select adjustment item
with up £7] or down arrow [ | }).
5. Press Menu to display the original adjustment mode
menu.
6. Perform in the same manner for White balance adjust
and Remote select.
M@ Status display
1. Press the up | T} or down arrow [ | } to select the
status display items.
2. Press the loft [J or right arrow [>] to select on/off.
Control lock
© Except for sound volume, all control operations are
inhibited from the front control buttons, Phase,
Chroma, Bright and Contrast controls, and the remote
controller (sound volume remains opérational).
1. Press the up [ T] or down arrow [ |] to select Controf
Lock.
2, Press the left |<] or right arrow [>] to select on/off.
3. The status just prior to selecting On is held and after
exiting the set-up main menu, control adjustment is
inhibited.
4. To release the control lock, press Enter and Menu to
display the set-up main menu, then set Contra! Lock to
Off.
BM-H2000PN
<SET-UP MENU>
> SIZE/CENTERING
WHITE BALANCE ADJUST
REMOTE SELECT
STATUS DISPLAY :ON
CONTROLLOCK :OFF
Set-up main menu
<SIZE/CENTERING >
> H.SIZE +05
VSIZE 2-05
H.POSITION :+03
V.POSITION 1-07
Adjustment mode menu
1405
H.POSITION : +03
V.POSITION : -07
Adjustment mode sub-menu
H.SIZE~PV SIZEH.POSITION->V POSITION
(No.51042) 27
