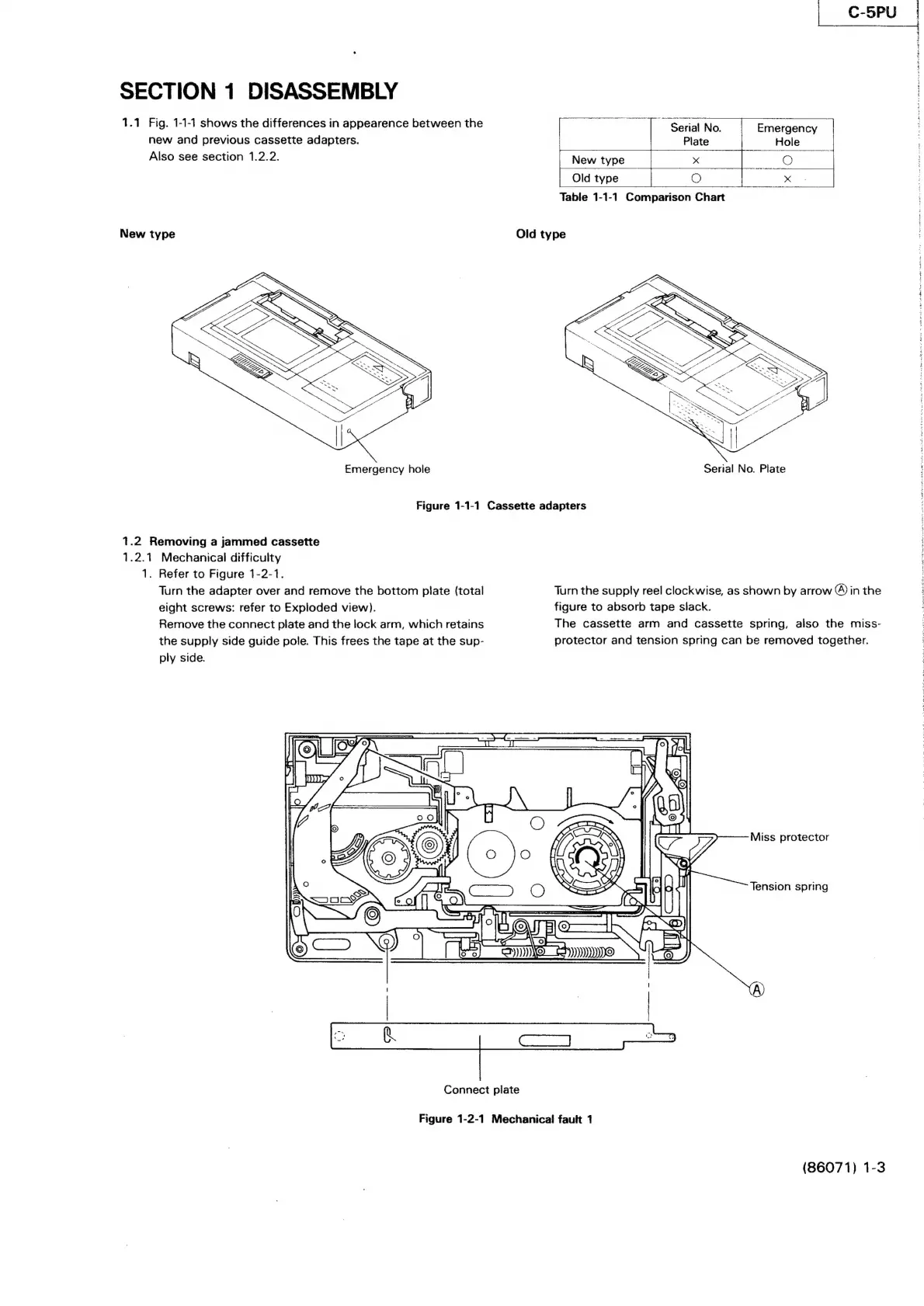

SECTION 1 DISASSEMBLY ,
1.1 Fig. 1-1-1 shows the differences in appearence betweenthe == $$[ | Serial No. Emergency
new and previous cassette adapters. Plate Hole
Also
see
section
1.2.2.
New
type
x
i
| Old type © .
Table 1-1-1 Comparison Chart
New type Old type
Emergency hole Serial No. Plate
Figure 1-1-1 Cassette adapters
1.2 Removing a jammed cassette
1.2.1 Mechanical difficulty
1. Refer to Figure 1-2-1. |
Turn the adapter over and remove the bottom piate (total Turn the supply reel clockwise, as shown by arrow @ in the
eight screws: refer to Exploded view). figure to absorb tape slack.
Remove the connect plate and the lock arm, which retains The cassette arm and cassette spring, also the miss-
the supply side guide pole. This frees the tape at the sup- protector and tension spring can be removed together.
ply side.
Miss protector |
Tension spring
ae.
:
vy
Connect plate
Figure 1-2-1 Mechanical fault 1
(86071) 1-3
