JVC CA-DXT9 - Removing Side (L) and Tray Switch Board

(No.MB368)1-33
3.2.11 Removing the side (L) and tray switch board
(See Figs.20 to 22)
• Remove the tray assemblies.
(1) From the topside of the DVD changer mechanism assem-
bly, remove the two screws M attaching the side (L). (See
Fig.20.)
(2) From the left side of the DVD changer mechanism assem-
bly, disconnect the connector CN3
on the tray switch board
from the motor board and detach the side (L) in an upward
direction. (See Fig.21.)
(3) Remove the screw N attaching the tray switch board to the
side (L). (See Fig.22.)
(4) Release the joint tab y of the side (L) in the direction of the
arrow 1 and release the joint tab z while removing the tray
switch board in the direction of the arrow 2. (See Fig.22.)

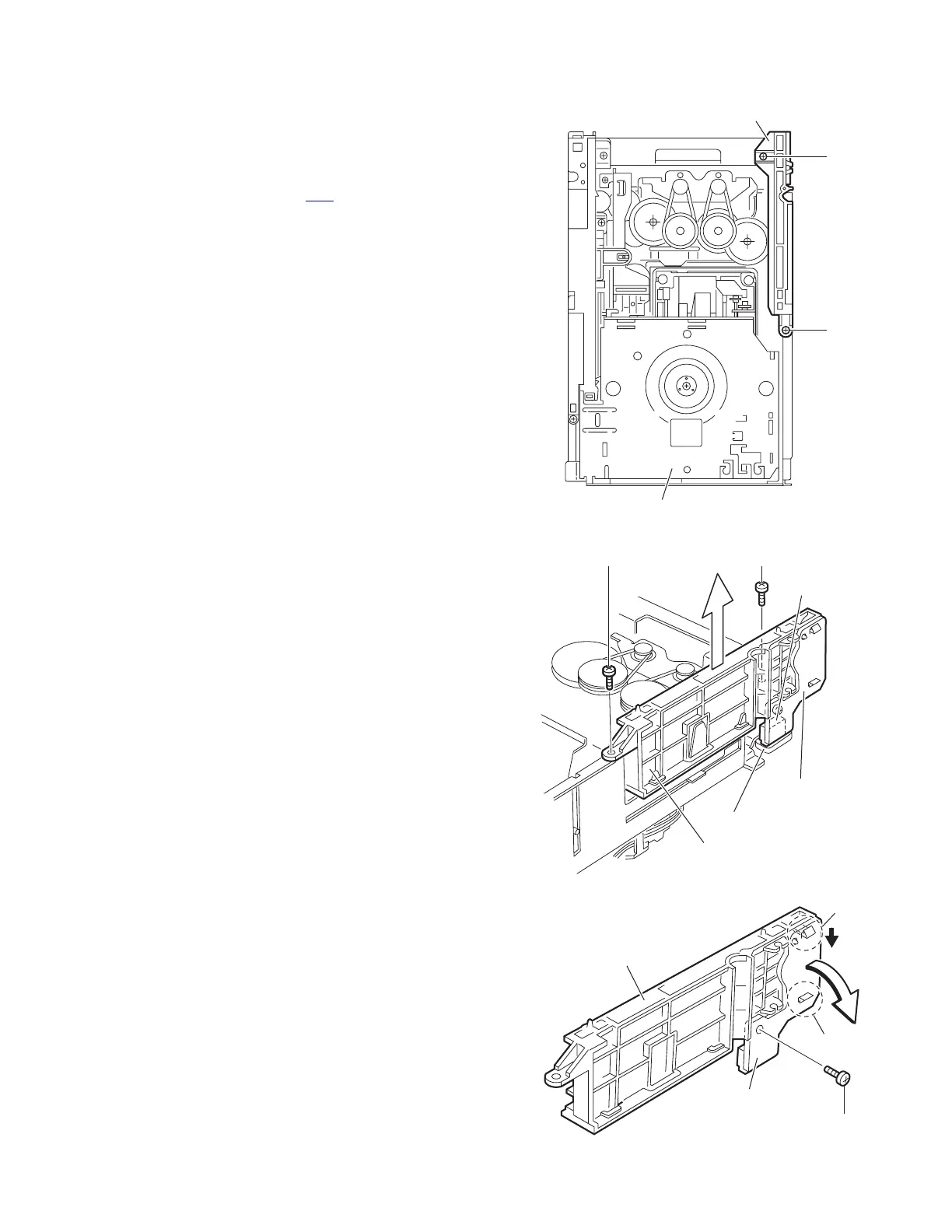

Fig.20
Fig.21
Fig.22
M
SIde(L)
M
DVD changer mechanism assembly
CN3
Side(L)
M
M
Motor board
Tray switch board
y
z
N
Tray switch board
Side(L)
1
2
