3-4

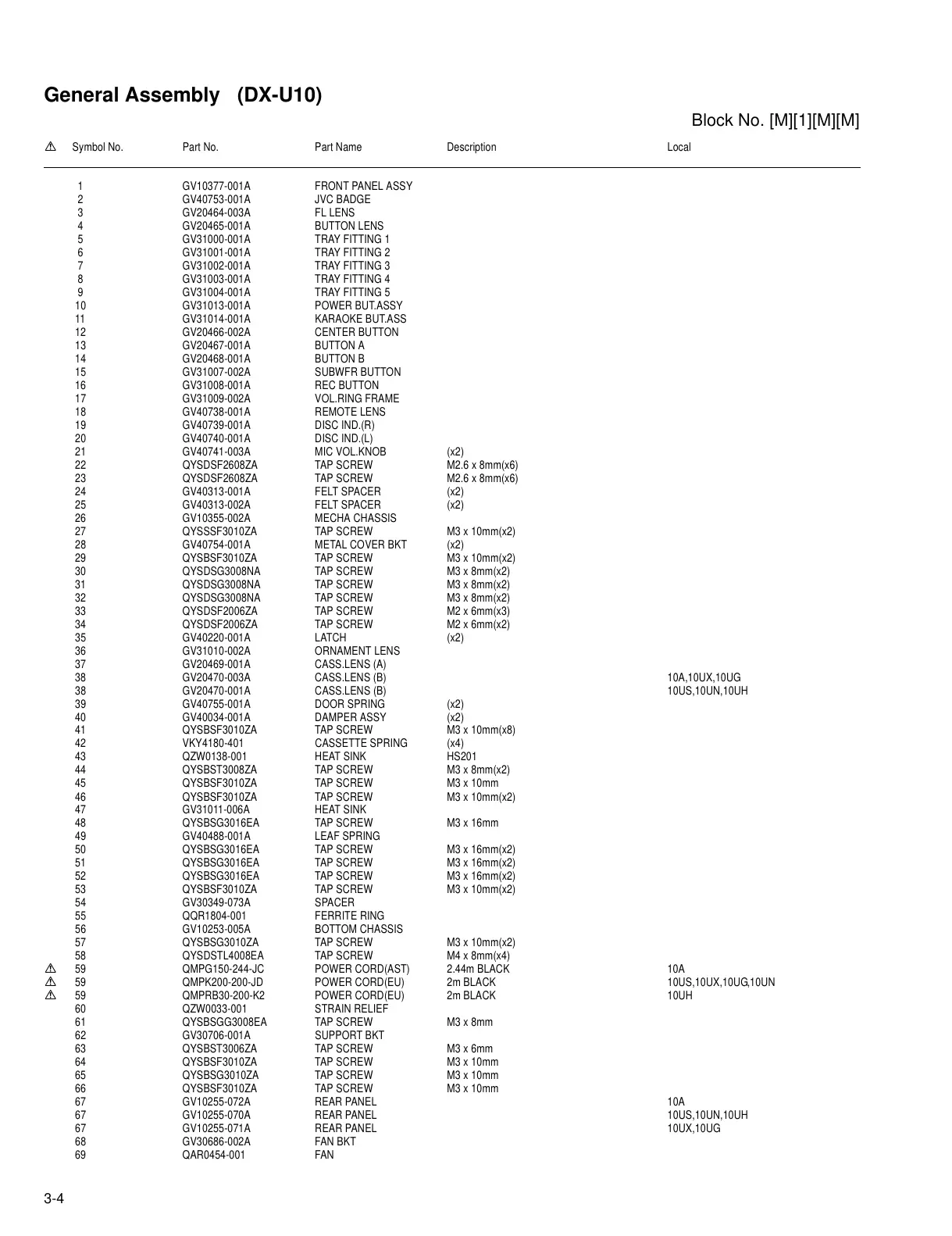

General Assembly (DX-U10)
Block No. [M][1][M][M]
Symbol No. Part No. Part Name Description Local
1 GV10377-001A FRONT PANEL ASSY
2 GV40753-001A JVC BADGE
3 GV20464-003A FL LENS
4 GV20465-001A BUTTON LENS
5 GV31000-001A TRAY FITTING 1
6 GV31001-001A TRAY FITTING 2
7 GV31002-001A TRAY FITTING 3
8 GV31003-001A TRAY FITTING 4
9 GV31004-001A TRAY FITTING 5
10 GV31013-001A POWER BUT.ASSY
11 GV31014-001A KARAOKE BUT.ASS
12 GV20466-002A CENTER BUTTON
13 GV20467-001A BUTTON A
14 GV20468-001A BUTTON B
15 GV31007-002A SUBWFR BUTTON
16 GV31008-001A REC BUTTON
17 GV31009-002A VOL.RING FRAME
18 GV40738-001A REMOTE LENS
19 GV40739-001A DISC IND.(R)
20 GV40740-001A DISC IND.(L)
21 GV40741-003A MIC VOL.KNOB (x2)
22 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6)
23 QYSDSF2608ZA TAP SCREW M2.6 x 8mm(x6)
24 GV40313-001A FELT SPACER (x2)
25 GV40313-002A FELT SPACER (x2)
26 GV10355-002A MECHA CHASSIS
27 QYSSSF3010ZA TAP SCREW M3 x 10mm(x2)
28 GV40754-001A METAL COVER BKT (x2)
29 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
30 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
31 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
32 QYSDSG3008NA TAP SCREW M3 x 8mm(x2)
33 QYSDSF2006ZA TAP SCREW M2 x 6mm(x3)
34 QYSDSF2006ZA TAP SCREW M2 x 6mm(x2)
35 GV40220-001A LATCH (x2)
36 GV31010-002A ORNAMENT LENS
37 GV20469-001A CASS.LENS (A)
38 GV20470-003A CASS.LENS (B) 10A,10UX,10UG
38 GV20470-001A CASS.LENS (B) 10US,10UN,10UH
39 GV40755-001A DOOR SPRING (x2)
40 GV40034-001A DAMPER ASSY (x2)
41 QYSBSF3010ZA TAP SCREW M3 x 10mm(x8)
42 VKY4180-401 CASSETTE SPRING (x4)
43 QZW0138-001 HEAT SINK HS201
44 QYSBST3008ZA TAP SCREW M3 x 8mm(x2)
45 QYSBSF3010ZA TAP SCREW M3 x 10mm
46 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
47 GV31011-006A HEAT SINK
48 QYSBSG3016EA TAP SCREW M3 x 16mm
49 GV40488-001A LEAF SPRING
50 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
51 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
52 QYSBSG3016EA TAP SCREW M3 x 16mm(x2)
53 QYSBSF3010ZA TAP SCREW M3 x 10mm(x2)
54 GV30349-073A SPACER
55 QQR1804-001 FERRITE RING
56 GV10253-005A BOTTOM CHASSIS
57 QYSBSG3010ZA TAP SCREW M3 x 10mm(x2)
58 QYSDSTL4008EA TAP SCREW M4 x 8mm(x4)
59 QMPG150-244-JC POWER CORD(AST) 2.44m BLACK 10A
59 QMPK200-200-JD POWER CORD(EU) 2m BLACK 10US,10UX,10UG,10UN
59 QMPRB30-200-K2 POWER CORD(EU) 2m BLACK 10UH
60 QZW0033-001 STRAIN RELIEF
61 QYSBSGG3008EA TAP SCREW M3 x 8mm
62 GV30706-001A SUPPORT BKT
63 QYSBST3006ZA TAP SCREW M3 x 6mm
64 QYSBSF3010ZA TAP SCREW M3 x 10mm
65 QYSBSG3010ZA TAP SCREW M3 x 10mm
66 QYSBSF3010ZA TAP SCREW M3 x 10mm
67 GV10255-072A REAR PANEL 10A
67 GV10255-070A REAR PANEL 10US,10UN,10UH
67 GV10255-071A REAR PANEL 10UX,10UG
68 GV30686-002A FAN BKT
69 QAR0454-001 FAN
