– 7 –
English

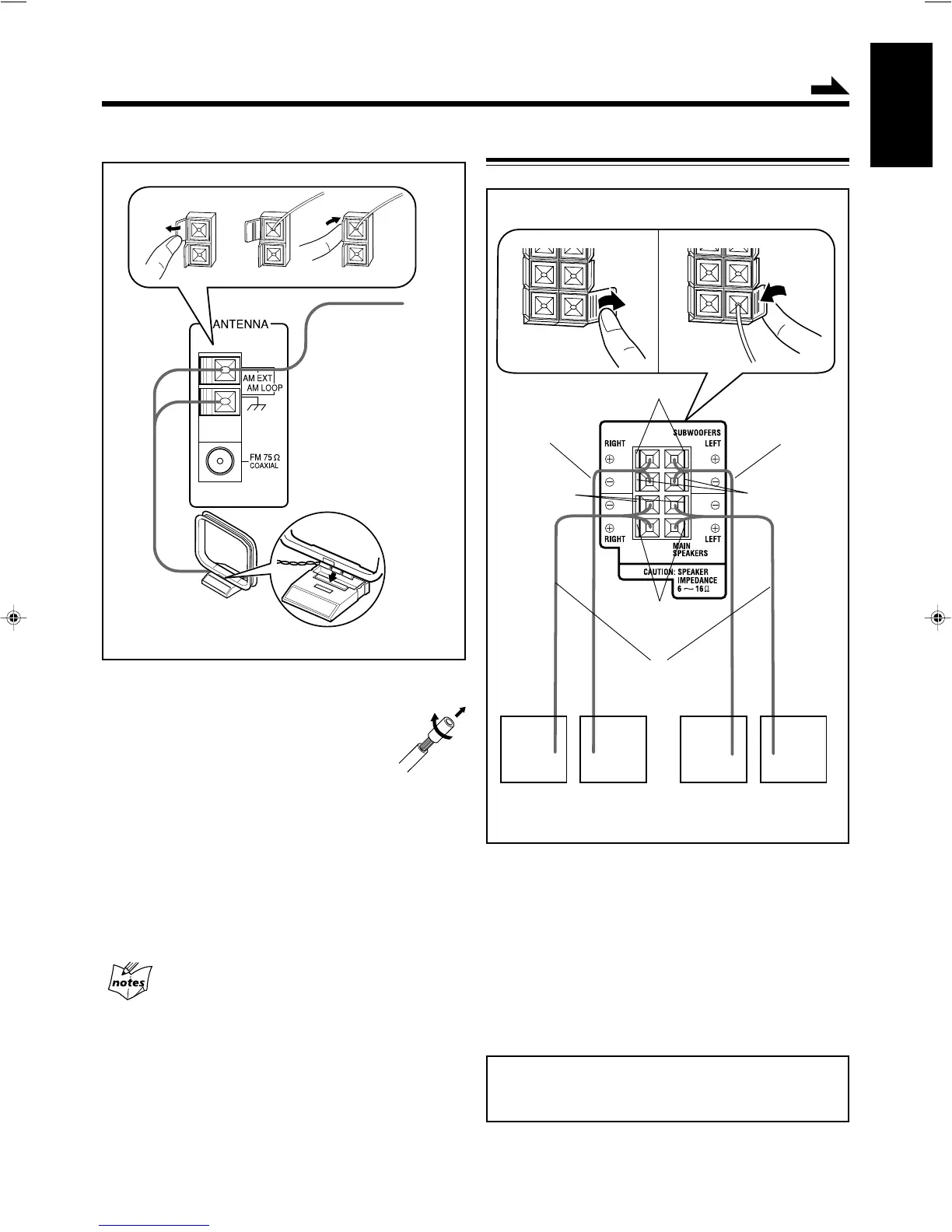

1 Connect the AM loop antenna to the AM
LOOP terminals as illustrated.
If the AM loop antenna wire is covered
with vinyl, remove the vinyl by twisting
it as shown in the diagram.
2 Turn the AM loop antenna until you have the
best reception.
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered wire
to the AM EXT terminal and extend it horizontally. The AM
loop antenna must remain connected.
For better reception of both FM and AM
Make sure the antenna conductors do not touch any other
terminals and connecting cords.
Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
AM antenna
Vinyl-covered wire
(not supplied)
AM loop antenna
(supplied)
1
2
Connecting Speakers
For Models CA-MXG950V/880V/850V
1 Open the speaker terminals on the rear of the
unit.
2 Insert the end of the speaker cord into the
terminal.
Match the polarity (colours) of the speaker terminals: Red
(+) to red (+) and black (–) to black (–); Blue (+) to blue
(+) and black (–) to black (–).
3 Close the speaker terminals.
IMPORTANT: Use only speakers with the same speaker
impedance as indicated by the speaker terminals on the
rear of the unit.
Blue
1
3
Black
Red
Speaker cords
(blue/black)
Right speaker Left speaker
Speaker cords
(red/black)
Speaker cords
(red/black)
Black
2
Continued
SUBWOOFERMAIN
SUBWOOFER
MAIN
