CH-X1500
1-7
2.4 Changer-mechanism section

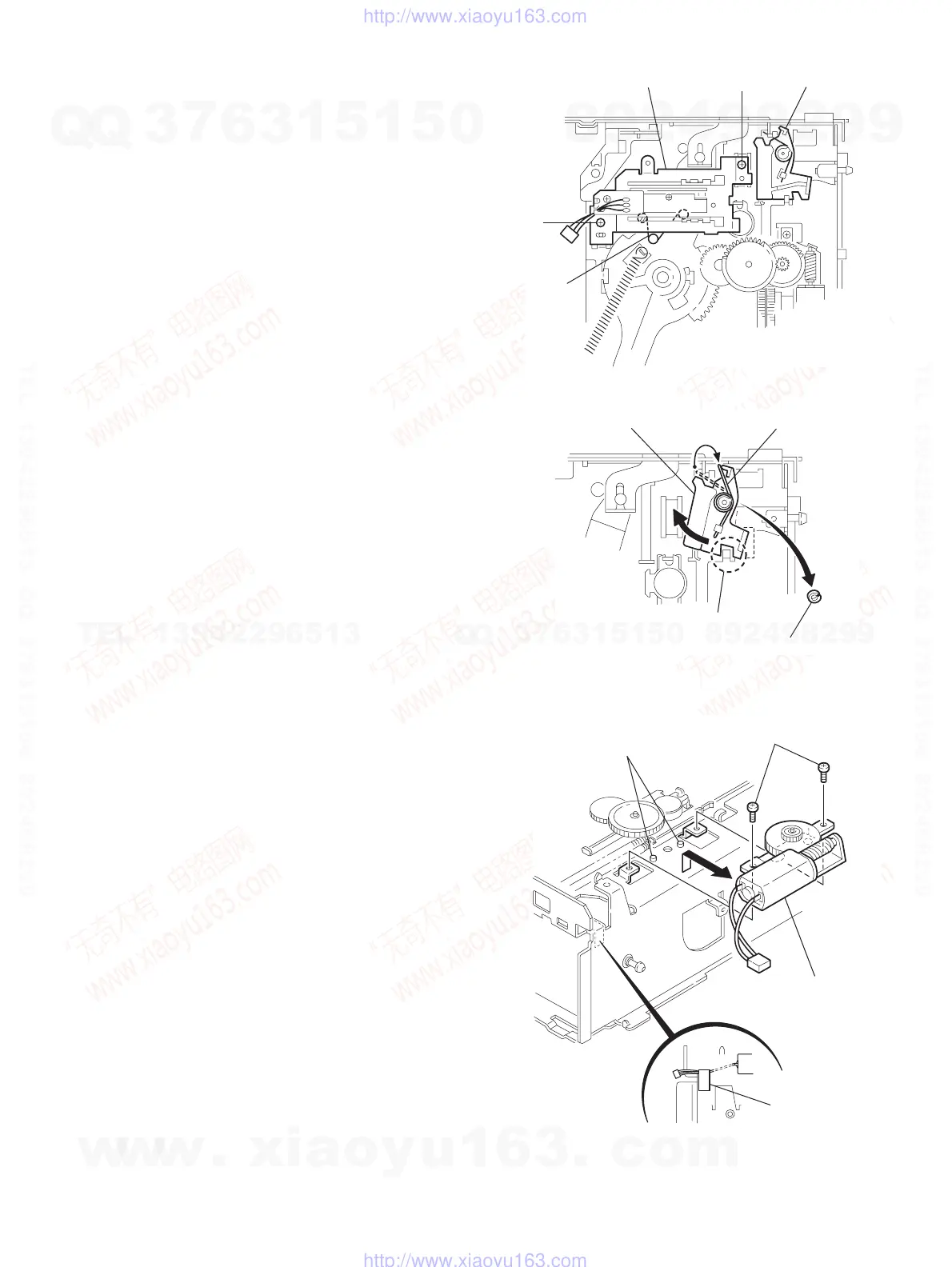

2.4.1 Remove the sensor assembly unit (See fig.12)
(1) Remove the two screws H attaching the sensor assembly
unit.
(2) Release the springs on the back of the sensor assembly
unit from the holes on the chassis.
2.4.2 Remove the magazine lock arm (See fig.12,13)
(1) Remove the magazine lock spring from the front side of
the chassis.
(2) Remove the poly-washer attaching the magazine lock
arm.
(3) Turn the magazine lock arm in the direction of the arrow
until the notch is at the c position to remove it from the
chassis.
Fig.12
Fig.13
2.4.3 Remove the positioning motor assembly (See fig.14)
(1) Remove the two screws I attaching the positioning motor.
ATTENTION:
When removing the positioning motor assembly from
chassis, remove the spacer attaching the wires.
(2) Slightly lift the positioning motor assembly to remove it
from the two burrs on the chassis.
Fig.14
H
H
Spring
Sensor assembly Magazine lock arm
Magazine lock springMagazine lock arm
Poly-washer
c
Positioning moto
assembly
Spacer
I
Burrs
