2.4.4 Remove the rear slider (See fig.15)
(1) Position the unit with the front section facing down. Rotate
the third gear located on the back of the main unit in the
direction of the arrow (clockwise).
(2) Move the rear slider in the direction of the arrow and re-
move it at the rear slider mounting position (at the widest
hole).

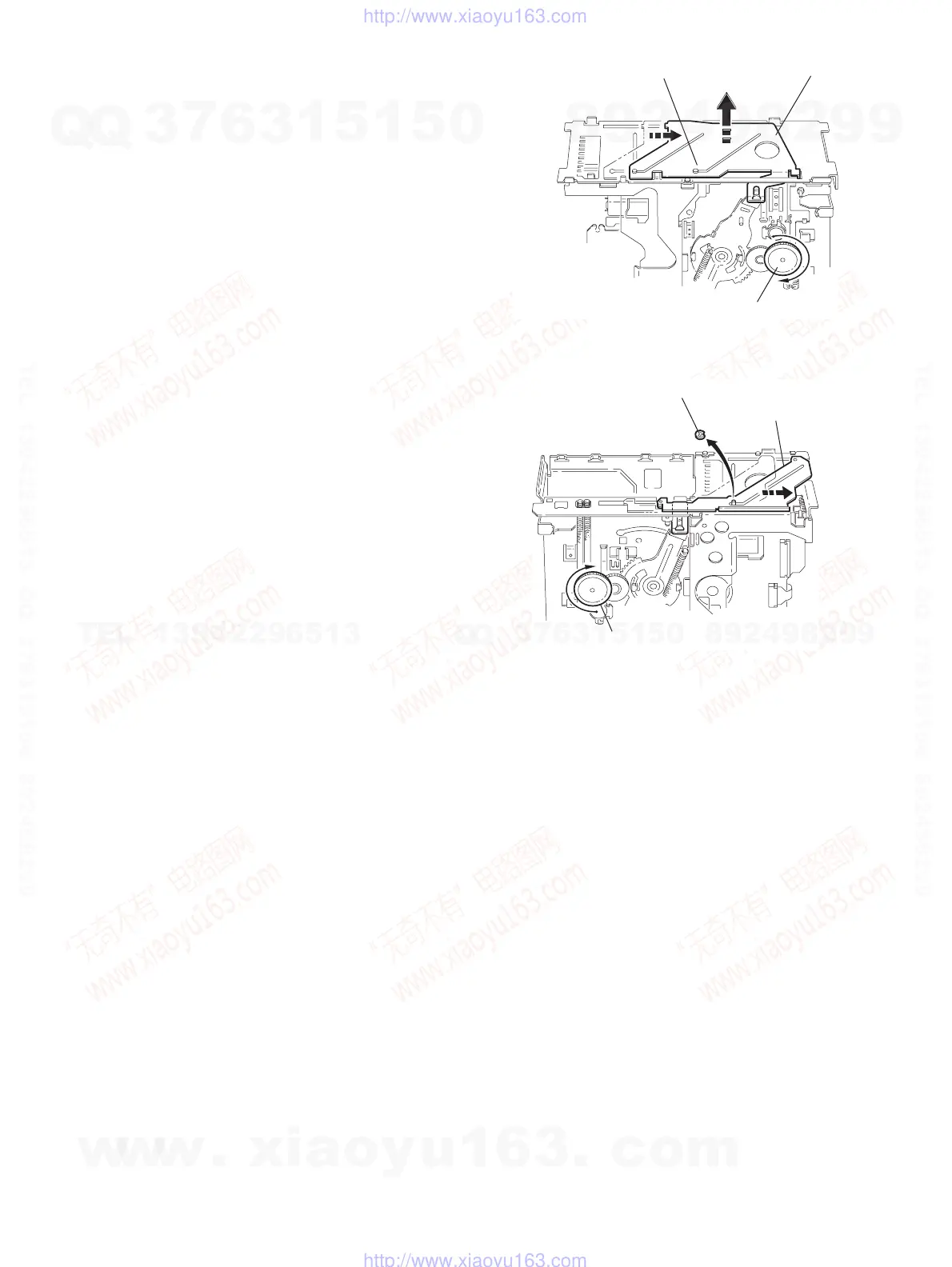

Fig.15
2.4.5 Remove the front slider (See fig.16)
(1) Position the unit with the rear section facing down. Rotate
the third gear located on the bottom of the unit in the direc-
tion of the arrow (clockwise) until the front slider is moved
to the outermost position.
(2) Remove the E-washer attaching the front slider, and re-
move from the chassis.
Fig.16
Third gear
Rear slider
Can be remove at the stud position
(At the wideness position)
Third gear
Front slider
E-washer
