1-10 (No.49787B)

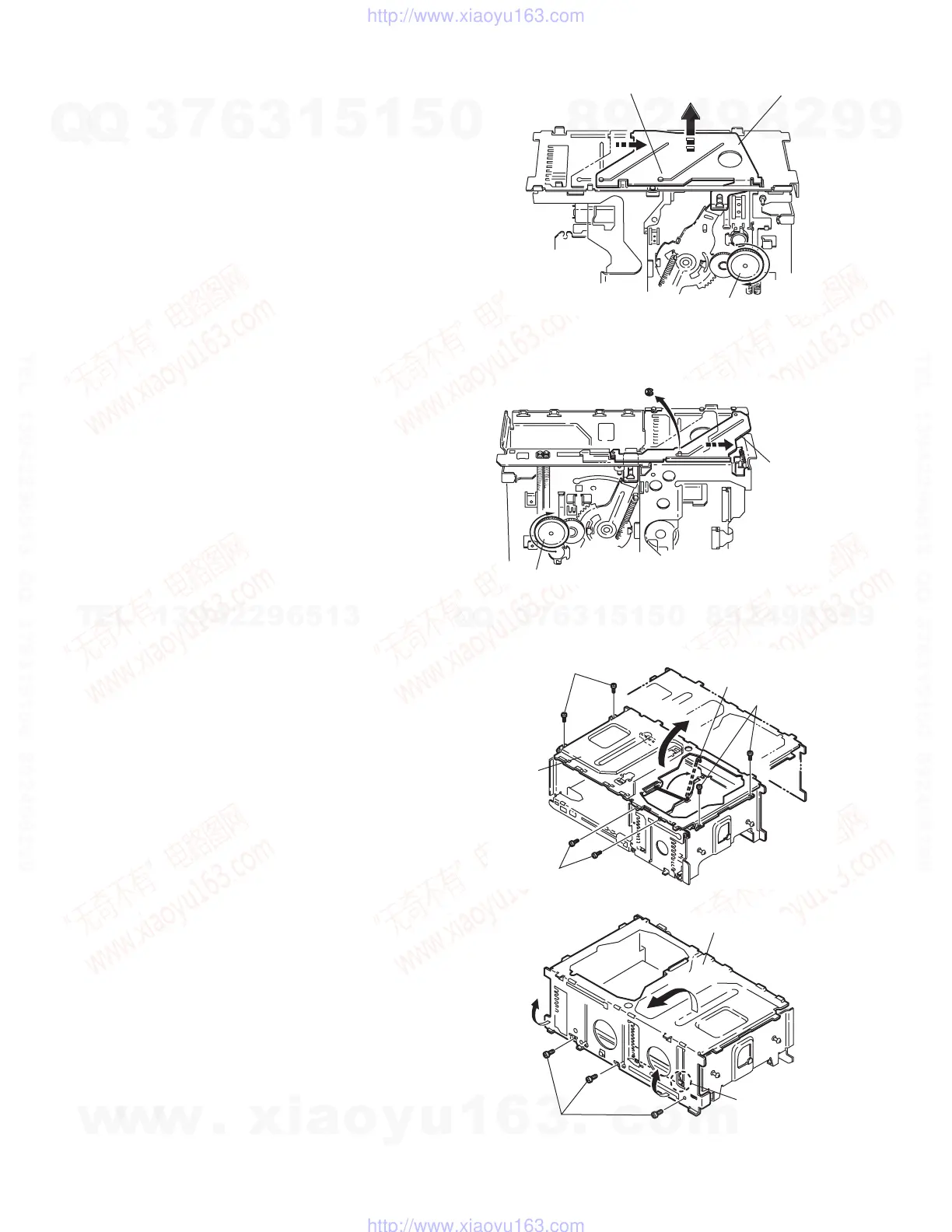

3.2.4 Rear slider
(See Fig.4)
(1) Position the unit with the front section facing down. Rotate
the third gear located on the back of the main unit in the di-
rection of the arrow (clockwise).
(2) Shift the rear slider in the direction of the arrow and remove
it at the rear slider mounting position (at the widest hole).
Fig.4
3.2.5 Front slider
(See Fig.5)
(1) Position the unit with the rear section facing down. Rotate
the third gear located on the bottom of the unit in the direc-
tion of the arrow (clockwise) until the front slider is shifted
to the outermost position.
(2) Remove the E-washer securing the front slider to remove
the front slider from the chassis
Fig.5
3.2.6 Top plate
(See Fig.6 and 7)
(1) Remove the nine screws K securing the top plate.
(2) Disconnect the section e attached to the rear of the unit,
then lift the top plate slightly.
(3) Slide the top plate toward the rear of the unit to remove the
upper rod from the top plate.
Fig.6
Fig.7
Can be removed at the stud position
(at the widest hole)
Remove
Shift
Third gear
Rear slide
r
Remove the E-washer
Third gear
Front slide
r
Slide and remove the rod inside
Slide
Top plate
K
K
K
Rod
After lifting
e
Remove
K
Top plate
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
