1-14 (No.49787B)
3.2.13 Precautions on reassembling
CAUTION:
When reassembling, also refer to the disassembling proce-
dures.

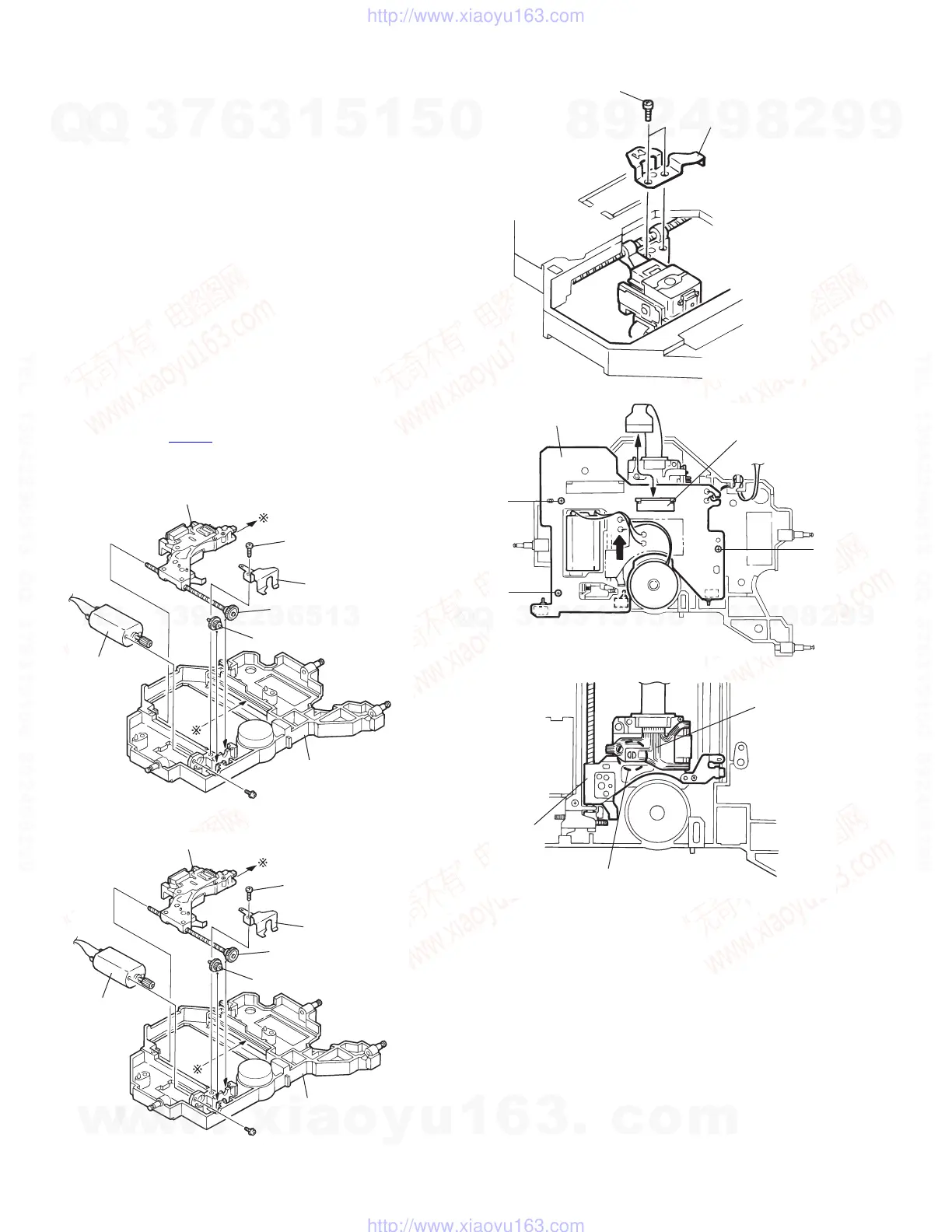

3.2.13.1 Mounting the traverse mechanism
(See Fig.19 to 23)
(1) When mounting the pickup assembly, attach the feed slide
shaft assembly to the traverse chassis.Apply E-JC-525
grease to the shaft.
(2) Mount the middle gear and the feed slide shaft to the
traverse chassis and secure them with the screw P
through the shaft holder.
(3) Before mounting the mechanism board, move the pickup to
the outer edge position, then secure the board assembly
using the screw N.
At this time, check that the rest switch is correctly placed.
(4) To mount the rack arm, first move the pickup to the middle
position and secure it with the screws Q.
CAUTION:
To reattach the mechanism board, connect the pickup flexible
wire to connector CN501
on the mechanism board before un-
soldering the short circuit round. Subsequently, fix the mecha-
nism board using screws.
Fig.19
Fig.20
Fig.21
Fig.22
Fig.23
Pickup assembly
Attached to chassis
Shaft holder
Middle gear
Motor
Chassis
Mounting the
feed motor assembly
P
Feed slide shaft
(half coated with grease)
Pickup assembly
Attached to chassis
Shaft holder
Middle gear
Motor
Chassis
Mounting the
feed motor assembly
P
Feed slide shaft
(half coated with grease)
Rack arm
Q
Move the pickup to
the middle position
Mechanism board
N
N
N
CN501
Short circuit round
(Grounding point)
Pickup
Flexible wire
