3.2.13.4 Mounting the top plate

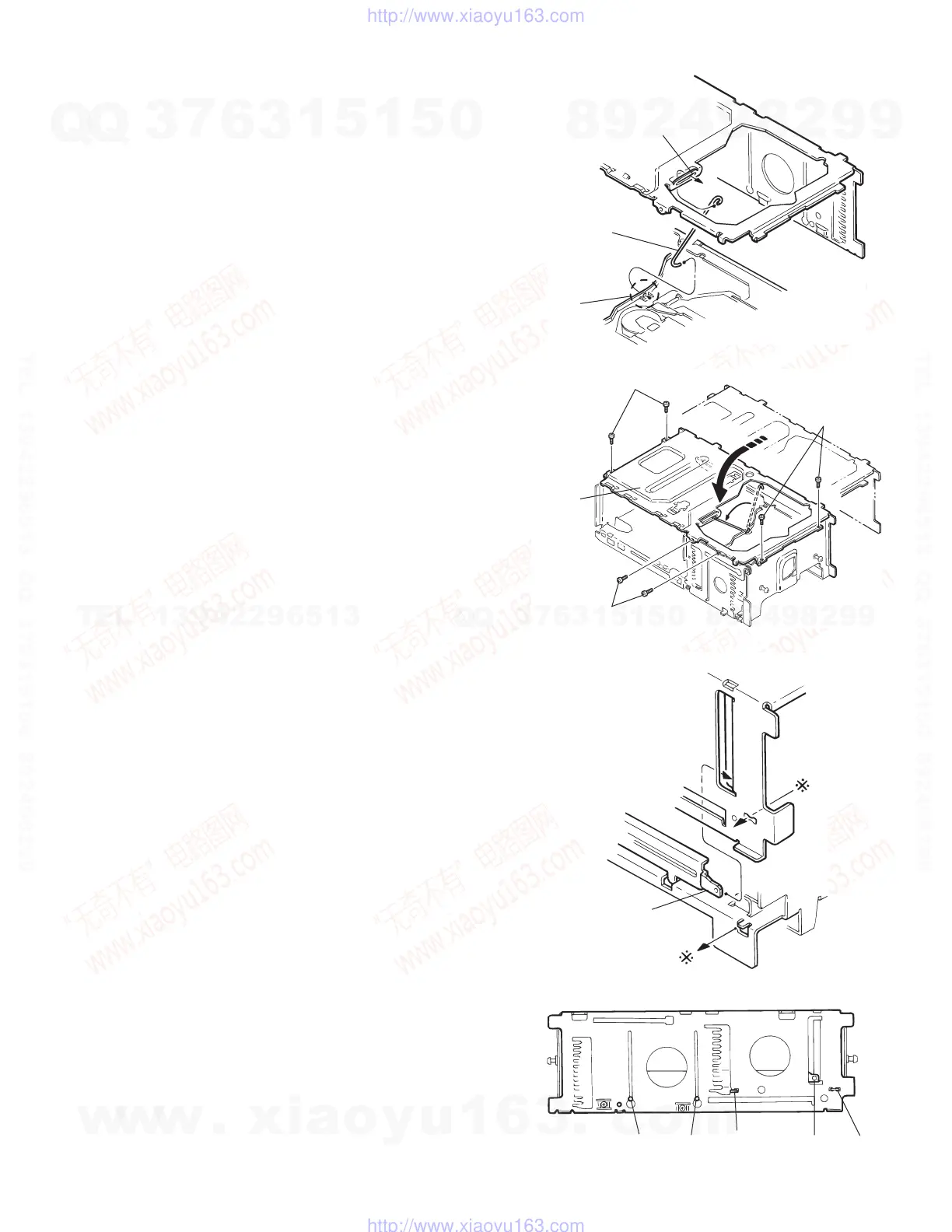

(See Fig.30 to 33)
(1) Mount the upper rod on the lifter side l and set it on the rear
of the top plate, then mount the other end of the upper rod
to m.
(2) Check that the five points (n, o, p, s and r) are correctly po-
sitioned.
When mounting section s, set it so that section t of the lifter
unit is pinched by the bending section of the top plate.
(3) Secure the top plate with six fixing screws K.
Fig.30
Fig.31
Fig.32
Fig.33
Upper rod
m
l
K
K
K
Top plate
Section t
Lifter Unit
Point r
Expanded view of mounting s
