3.2.13.5 Mounting the front slider and rear slider
(See Fig.34 and 35)
(1) Position the unit with the rear side facing down, then rotate
the third gear in the direction of the arrow (clockwise) until
the lift arm comes to the position at which the holes are ex-
posed, as shown in Fig. 34
(2) Mount the front slider from the top. Rotate the third gear
counterclockwise until the hole of the slider is lined up with
the right hole of the stud, as shown in Fig. 34
(3) Mount the E-washer on the shaft.
(4) Position the unit with the front side facing down, then
mount the rear slider. Check that the u, v and w positions
are correctly mounted as shown in Fig. 35.
(5) Rotate the third gear in the direction of the arrow (counter-
clockwise) until the lifter unit is at the top position.

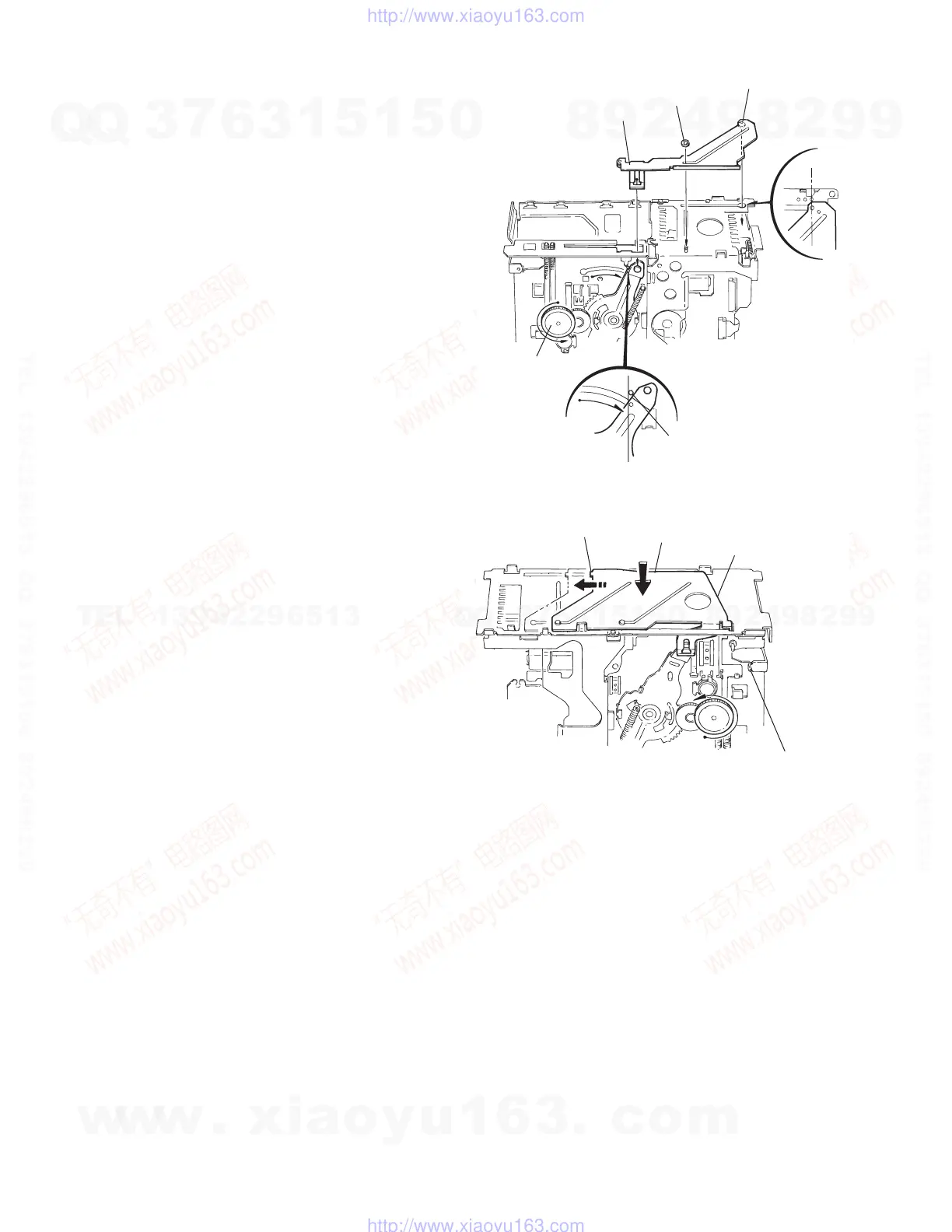

Fig.34
Fig.35
Stud
E-Washer
Front slider
Check after mounting
Set so the holes
are exposed
Position so
that the stud
and right hole
are lined up
Rotate the third gear
to move the slider
Rotate until the
holes are lined up
u
v
w
Rotate the third gear
to move the slider
w
w
