EN 15

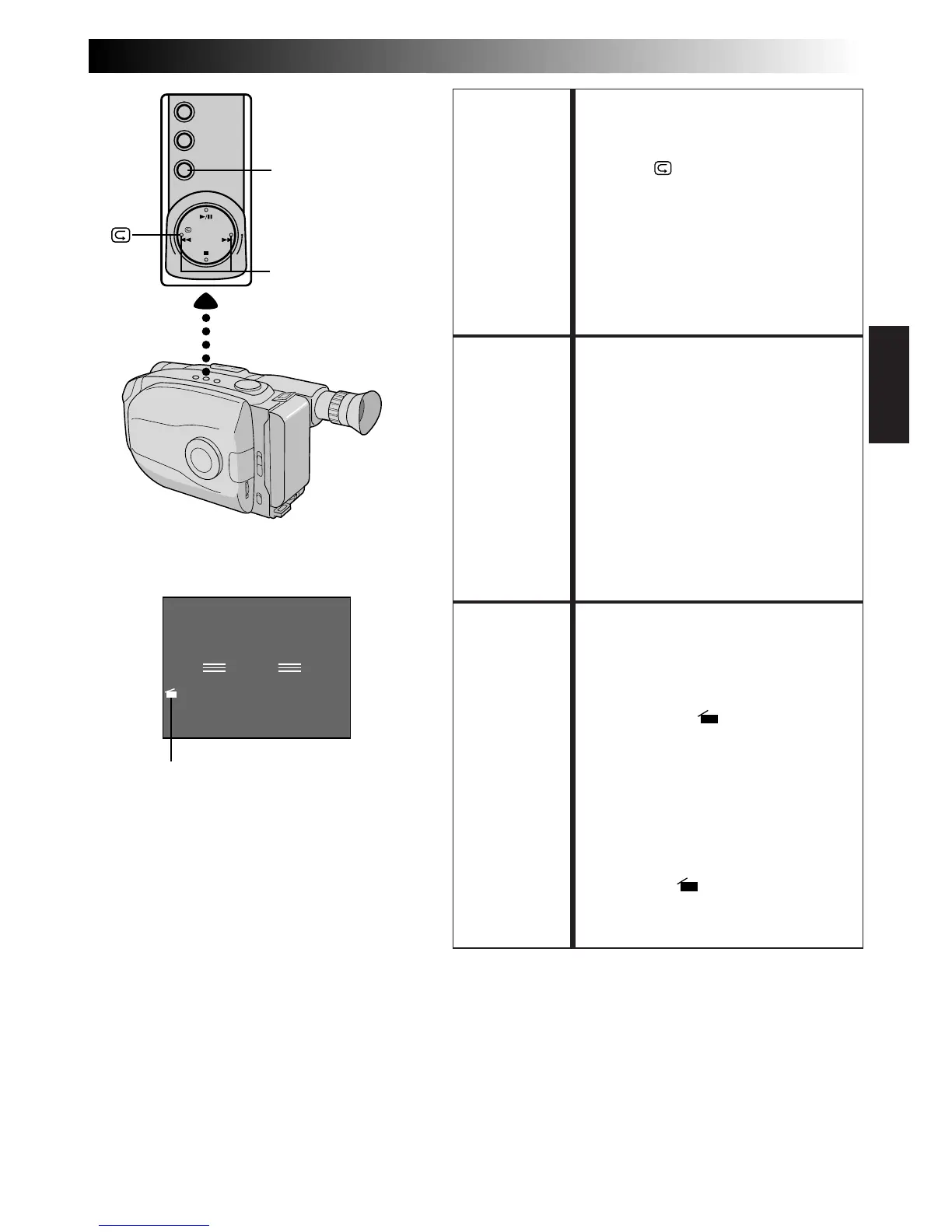

FEATURE: Quick Review
PURPOSE: To check the end of the last
recording.
OPERATION: 1) Press “ ” and release quickly
during the Record-Standby mode.
n Tape is rewound for about 2
seconds and played back
automatically, then pauses in
Record-Standby mode for the
next shot.
NOTE: Distortion may occur at start of
playback. This is normal.
FEATURE: Retake
PURPOSE: To re-record certain segments.
OPERATION: 1) Make sure the camcorder is in the
Record-Standby mode.
2) Press either RETAKE button to
reach the start point for new
recording. Pressing “F” forwards
the tape and pressing “R” reverses
it.
3) Press Recording Start/Stop Button
to start recording.
NOTE:
Noise may appear during Retake.
This is normal.
FEATURE: 5Sec. Rec (5-sec. Recording)
PURPOSE: To record a scene for 5 seconds,
providing quick scene transitions like
those seen in TV programmes.
OPERATION: 1) During Record-Standby, press
5SEC. REC. “
5S” appears and
5Sec. Rec is reserved.
2) Press Recording Start/Stop Button.
Recording starts, and after
5-second recording is finished, the
camcorder reenters the Record-
Standby mode automatically.
n To cancel the 5Sec. Rec.
function, press 5SEC. REC again
so that “ 5S” disappears.
NOTE:
The Fader ( Z pg. 20) cannot be
activated by pressing 5SEC. REC.
5S
PAUSE
5SEC. REC
RETAKE (R/F)
Viewfinder
5Sec. Rec mode indicator

JVC Compact VHS Specifications

Power

power source	DC 6V
power consumption light on	7.9 W
power consumption light off	5.0 W

Operating Environment

operating temperature	0°C to +40°C
operating humidity	35% to 80%
storage temperature	–20°C to +50°C

Camera Specifications

pick up	1/4” format CCD
lens	F1.6, f = 3.8 to 83.6 mm, 22:1 power zoom lens
viewfinder	Electronic viewfinder with 0.5” black/white CRT

Video Output

video output	1 Vp-p, 75 ohms, unbalanced
audio output	–8 dBs, 1 k-ohm
output connector	via VIDEO OUT and AUDIO OUT connectors

AC Power Adapter/Battery Charger Specifications

power requirement	AC 110 V to 240 V, 50/60 Hz
power consumption	23 W
output charge	DC 8.5 V, 1.3 A

Weight and Dimensions

weight	Approx. 800 g
dimensions	113 (W) x 117 (H) x 242 (D) mm
