10 EN
GETTING STARTED (cont.)

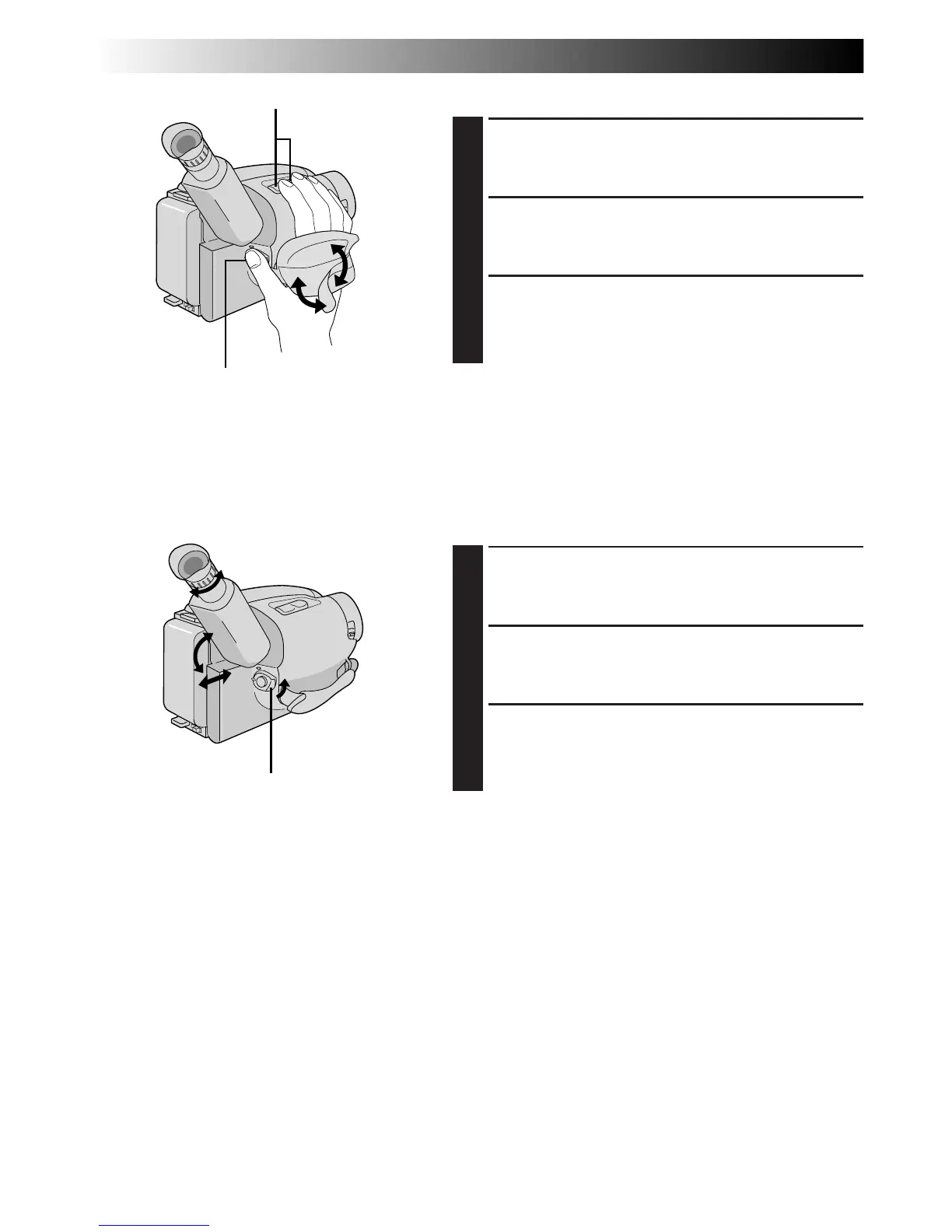

Grip Adjustment
EXPAND LOOP
1
Separate the Velcro strip.
INSERT HAND
2
Pass your right hand through the loop and grasp the
grip.
ADJUST STRAP LENGTH
3
Adjust so your thumb and fingers can easily operate
the Recording Start/Stop Button and Power Zoom
Button. Refasten the Velcro strip.
Viewfinder Adjustment
POSITION VIEWFINDER
1
Adjust the viewfinder manually for best viewability
(see illustration to the left).
SELECT MODE
2
Set the Power Switch to CAMERA.
ADJUST DIOPTRE
3
Turn the Dioptre Adjustment Control until the
indications in the viewfinder are clearly focused.
Recording Start/Stop Button
Power Zoom Button
1
1
2
2
3
Set POWER to “CAMERA”.

JVC Compact VHS Specifications

Power

power source	DC 6V
power consumption light on	7.9 W
power consumption light off	5.0 W

Operating Environment

operating temperature	0°C to +40°C
operating humidity	35% to 80%
storage temperature	–20°C to +50°C

Camera Specifications

pick up	1/4” format CCD
lens	F1.6, f = 3.8 to 83.6 mm, 22:1 power zoom lens
viewfinder	Electronic viewfinder with 0.5” black/white CRT

Video Output

video output	1 Vp-p, 75 ohms, unbalanced
audio output	–8 dBs, 1 k-ohm
output connector	via VIDEO OUT and AUDIO OUT connectors

AC Power Adapter/Battery Charger Specifications

power requirement	AC 110 V to 240 V, 50/60 Hz
power consumption	23 W
output charge	DC 8.5 V, 1.3 A

Weight and Dimensions

weight	Approx. 800 g
dimensions	113 (W) x 117 (H) x 242 (D) mm
