Installation

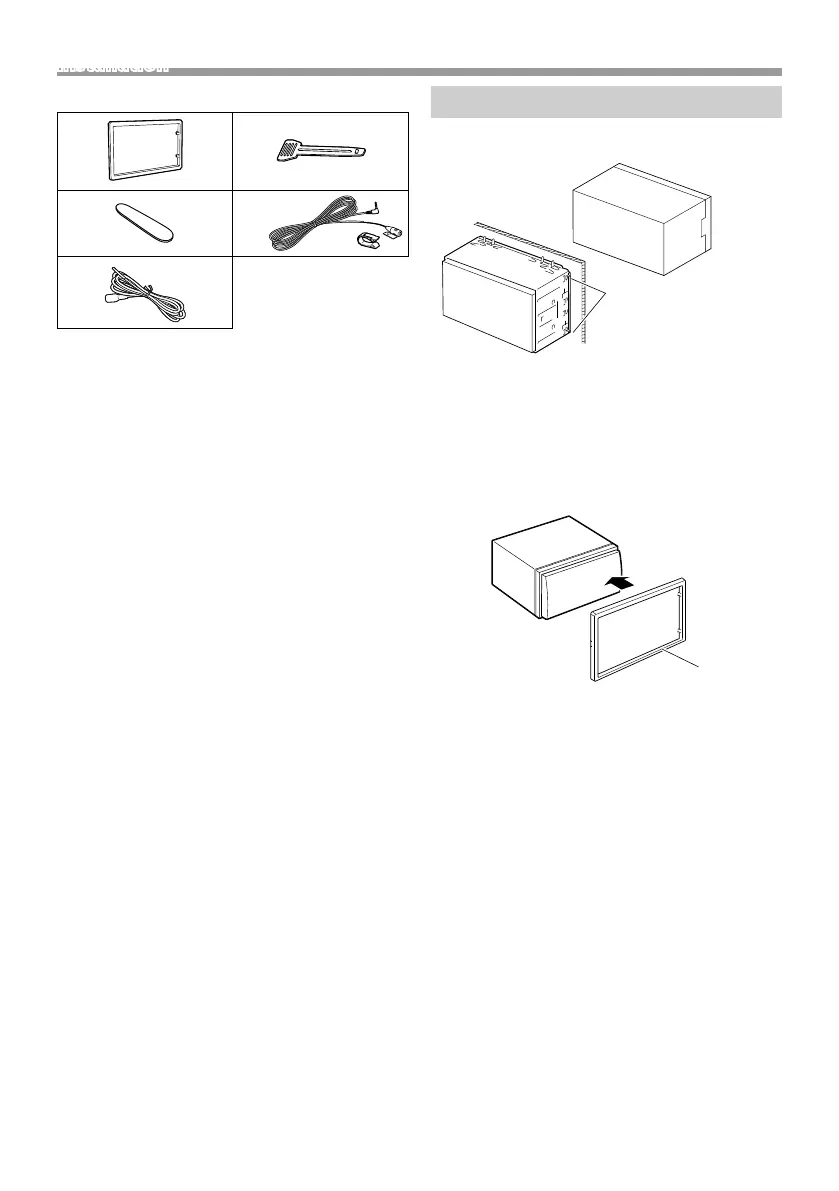

Ñ Supplied accessories for installation

(3 m)

(2 m)

Ñ Installation procedure

1) To prevent a short circuit, remove the key from

the ignition and disconnect the ¤ terminal of the

battery.

2) Make the proper input and output wire

connections for each unit.

3) Connect the wire on the wiring harness.

4) Take Connector B on the wiring harness and

connect it to the speaker connector in your vehicle.

5) Take Connector A on the wiring harness and

connect it to the external power connector on your

vehicle.

6) Connect the wiring harness connector to the unit.

7) Install the unit in your car.

8) Reconnect the ¤ terminal of the battery.

9) Press the reset button.

Installing the unit

Ñ Non-Japanese cars

Bend the tabs of the

mounting sleeve with

a screwdriver or similar

utensil and attach it in

place.

✎ NOTE

• Make sure that the unit is installed securely in place.

If the unit is unstable, it may malfunction (eg, the

sound may skip).

Ñ Trim plate

1) Attach accessory 1 to the unit.
