SYSTEM CONNECTIONS
Page 70 Wednesday, 23 November 2005 14:13
These instructions enable you to connect your unit to a Dolby
Digital Decoder or an amplifier with built-in DTS.
1 Connect the unit and a Dolby Digital Decoder or an amplifier
with built-in DTS using either an optional optical cable or an
optional coaxial cable.
NOTES:
● For Dolby Digital sound, set ADIGITAL AUDIO OUTB to ADOLBY
DIGITAL/PCMB. (A pg. 71)
● For DTS sound, set ADIGITAL AUDIO OUTB to ASTREAM/PCMB.
(A pg. 71)
CAUTIONS:
● This unit has a dynamic range of more than 110 dB with regards
to its Hi-Fi audio capability. It is recommended that you check the
maximum level if you are going to listen to the Hi-Fi audio signals
through a stereo amplifier. A sudden surge in the input level to
the speakers may damage them.
● Some speakers and televisions are specially shielded to prevent
television interference. If both are of the non-shielded type, do not
place the speakers adjacent to the TV set as this can adversely
affect the playback picture.
When you can’t switch the audio channel of a bilingual
programme
When the unit is connected with a digital audio device using an
optional optical cable and ADIGITAL AUDIO OUTB is set to
ADOLBY DIGITAL/PCMB, it is not possible to switch the audio
channel of a bilingual programme recorded on a DVD-RAM or
DVD-RW (VR mode) disc. In this case, perform the following steps
using the remote control to switch ADIGITAL AUDIO OUTB from
ADOLBY DIGITAL/PCMB to APCM ONLYB.
A Press SET UP to access the Main Menu screen.
B Press selection keys to select ADVD VIDEO SET UPB, then
press G.
C Press selection keys to select AAUDIO OUTPUTB, then press
G.
D Press selection keys to select ADIGITAL AUDIO OUTB, then
press ENTER.
E Press selection keys to select APCM ONLYB, then press
ENTER. (A pg. 71)
F Press SET UP to complete the setting.
G Press AUDIO to select the desired audio channel.
The [L-2 IN/DECODER] connector can be used as an input
connector for an external decoder (descrambler). Simply connect a
decoder and you can enjoy a variety of programming that is
available through scrambled channels.
1 Set AL-2 SELECTB to ADECODERB. (A pg. 63)
2 Connect your unit’s [L-2 IN/DECODER] connector to the
decoder’s 21-pin SCART connector using a 21-pin SCART
cable.
3 Perform the procedure as described in AWhen Receiving A
Scrambled Broadcast (HDD & DVD Deck Only)B (A pg. 76).

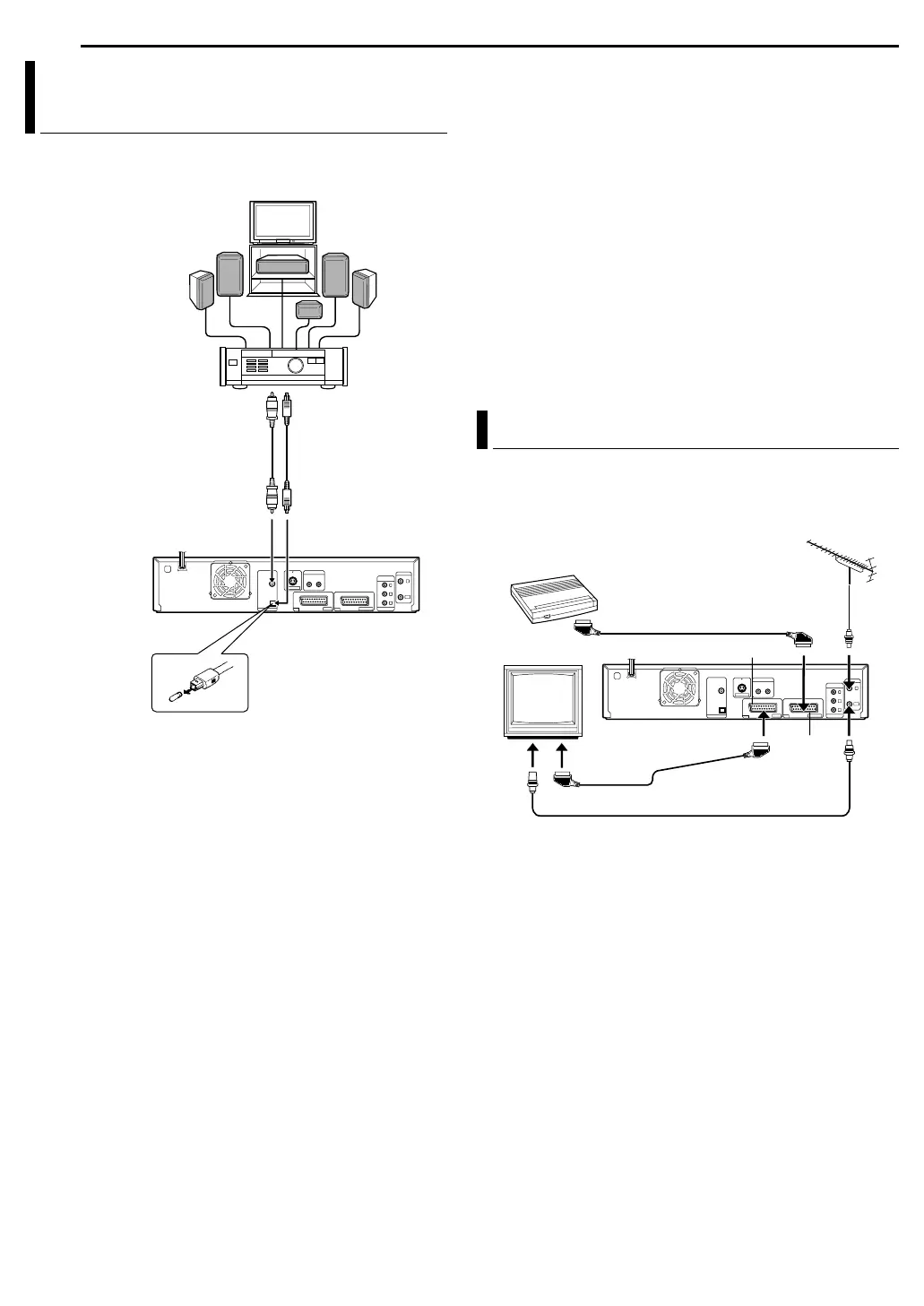

Connecting To A Dolby Digital Decoder
Or An Amplifier With Built-in DTS
Dolby Digital Decoder or
amplifier with built-in DTS
Coaxial cable
(not supplied)
Rear of unit
Note for connection:
Remove the protection cap from the optical cable.
To [DIGITAL AUDIO
OUT (COAXIAL)]
To DIGITAL AUDIO input
Optical cable
(not supplied)
To [DIGITAL AUDIO
OUT (OPTICAL)]
Connecting/Using A Decoder
TV
RF cable (supplied)
TV aerial cable
[L-1 IN/OUT]
[L-2 IN/
DECODER]
Decoder
