Attaching the Core Filter

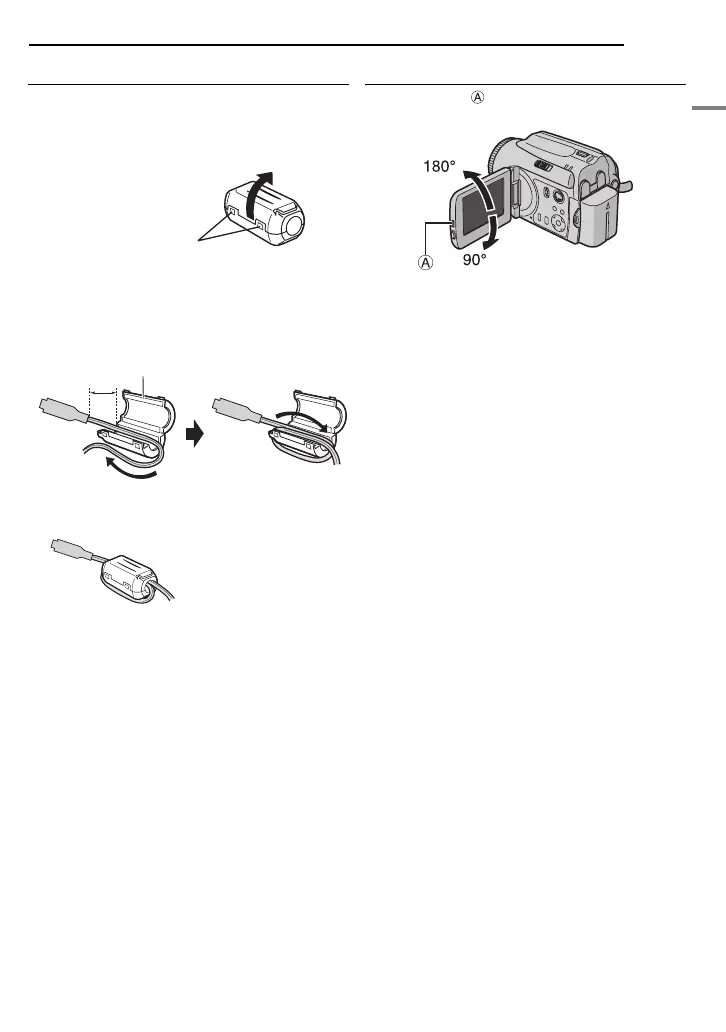

Attach the core filters to the cables. The core
filter reduces interference.
1 Release the stoppers on both ends of the
core filter.
2 Run the cable through the core filter, leaving
approx. 3 cm of cable between the cable plug
and the core filter.
Wind the cable once around the outside of the
core filter as shown in the illustration.
● Wind the cable so that it is not slack.
3 Close the core filter until it clicks shut.
NOTES:
● Take care not to damage the cable.
● When connecting a cable, attach the end with the
core filter to the camera.
LCD Monitor
Pull on the end of the LCD monitor and open
the LCD monitor fully. It can rotate 270°.
Stopper
Wind once.
Core Filter
3 cm (1-3/16")
