JVC EX-A10 Service Manual

1-20 (No.MB487)
3.2.3 Removing the rear panel
(See Fig.8.)
• Remove the metal cover.
(1) From the back side of the main body, remove the ten
screws E attaching the rear panel. [For U.S.A/Canada/
Asia/South America/U.S. Military/Middle East/South
Africa]
(2) From the back side of the main body, remove the eleven
screws E attaching the rear panel. [For Europe]
(3) Remove the joints (b, c) attaching the rear panel to the
main body.

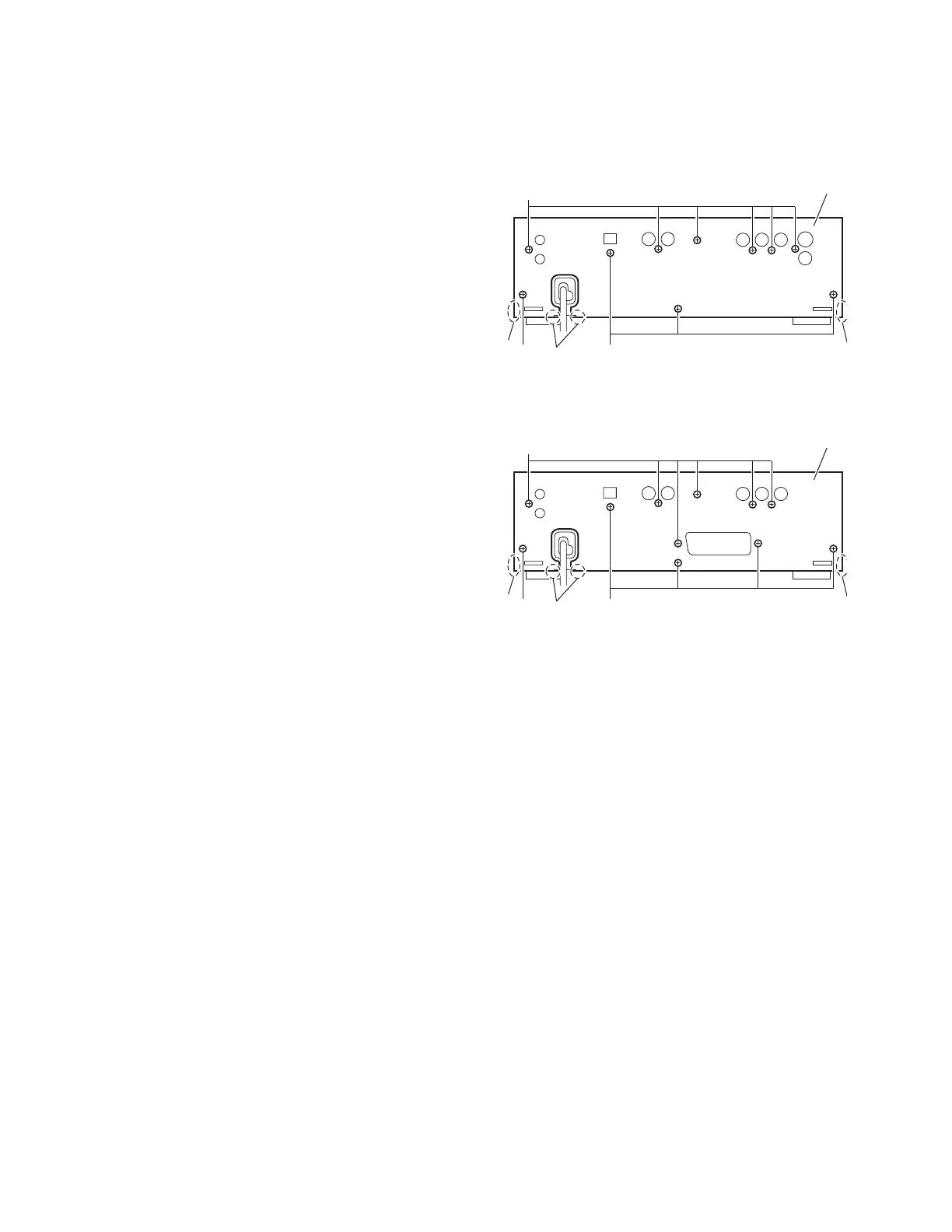

Fig.8
Rear pan
e
EE
E
c
b
b
Rear pan
e
EE
E
c
b
b
[For U.S.A/Canada/Asia/South America
/U.S. Military/Middle East/South America]
[For Europe]

JVC EX-A10 Specifications

General

Impedance	6 Ω
RMS rated power	20 W
Equalizer	Yes
Volume control	Digital
Supported radio bands	AM, FM
Type	Home audio micro system
Speakers	2-Way, Bass-Reflex
Dimensions (WxDxH)	245 x 80 x 297 mm
USB 2.0 ports quantity	1

Weight and Dimensions

Weight	2700 g
Center speaker weight	3500 g
Center speaker dimensions (WxDxH)	143 x 243 x 257 mm
