JVC EX-A10 Service Manual

(No.MB487)1-21
3.2.4 Removing the main board
(See Fig.9)
• Remove the metal cover.
(1) From the back side of the main body, remove the seven
screws F attaching the main board to the rear panel. [For
U.S.A/Canada/Asia/South America/U.S. Military/Middle
East/South Africa]
(2) From the back side of the main body, remove the six
screws F attaching the rear panel. [For Europe]
(3) From the top side of the main body, remove the two screws
G attaching the main board.
(4) Disconnect the wires from the connector CN211
on the
power supply board and connector CN502
on the video
jack board while lifting the rear section of the main board.
(5) Disconnect the card wires from the connector CN601
on
the main board. [For Europe]
(6) Disconnect the card wires from the connectors (CN611
,
CN621
, CN701, CN751) on the main board.
(7) Take out the main board from the main body.
Reference:
When attaching the main board, attach it after fitting the pro-
jections d of the main body in the holes of the main board.

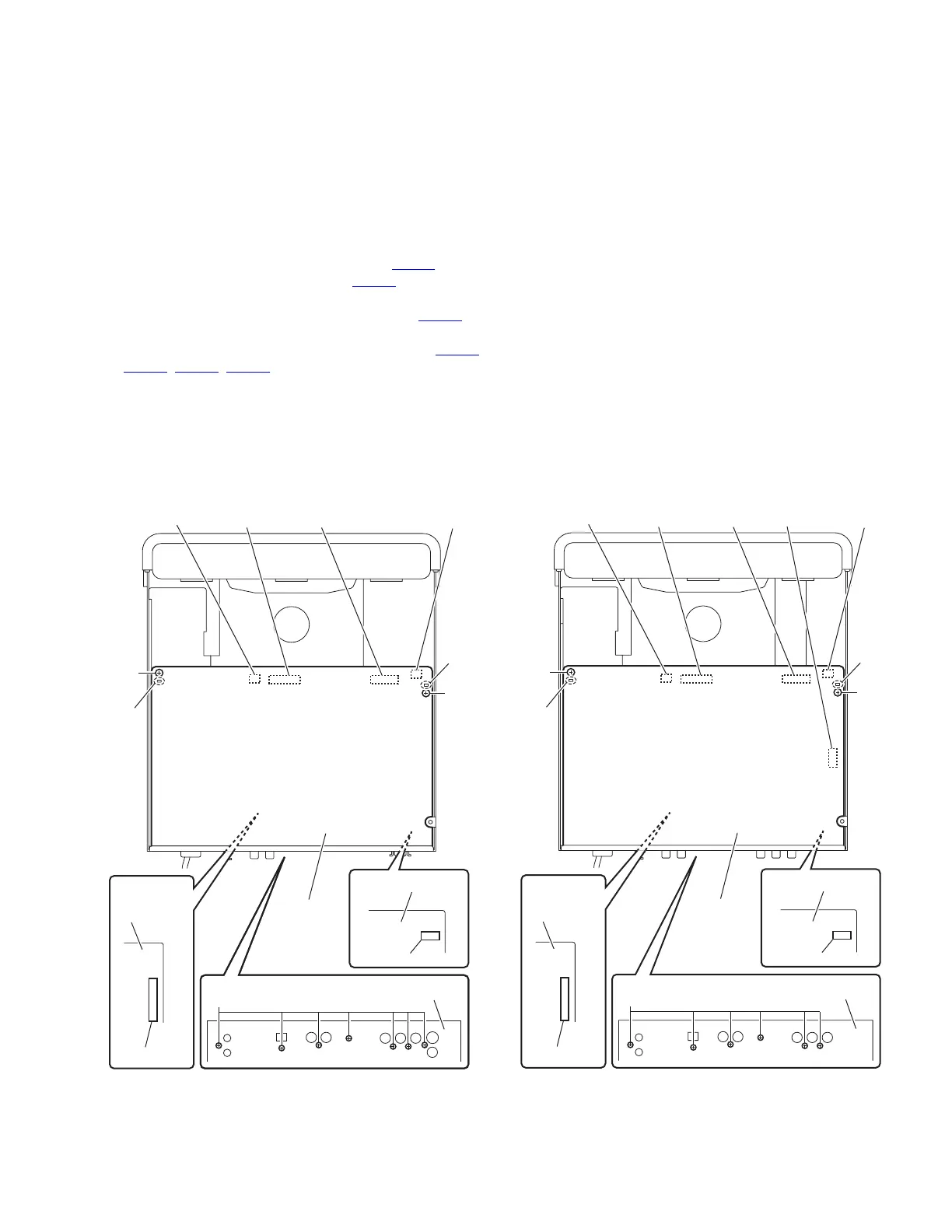

Fig.9
CN701
CN611
CN621
CN751
G
G
d
d
CN211
CN502
Rear panel
Video jack board
Power supply
board
F
Main board
[For Europe]
CN701
CN601
CN611
CN621
CN751
G
G
d
d
CN211
CN502
Rear panel
Power supply
board
F
Main board
[For U.S.A/Canada/Asia/South America
/U.S. Military/Middle East/South America]
Video jack board
