– 7 –
ANTENNA
FM(75
Ω)
COAXIAL
AM EXT
AM LOOP
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered
wire to the AM EXT terminal and extend it horizontally.
The AM loop antenna must remain connected.
For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
1
If cords are covered with insulation, twist the core
of the cord at the end of each cord, then remove the
insulation.
2
Connect the AM loop antenna to the AM LOOP
terminals as illustrated.
3
Turn the AM loop antenna until you have the best
reception.
AM antenna
AM loop antenna
(supplied)
Vinyl-covered wire
(not supplied)
3
1

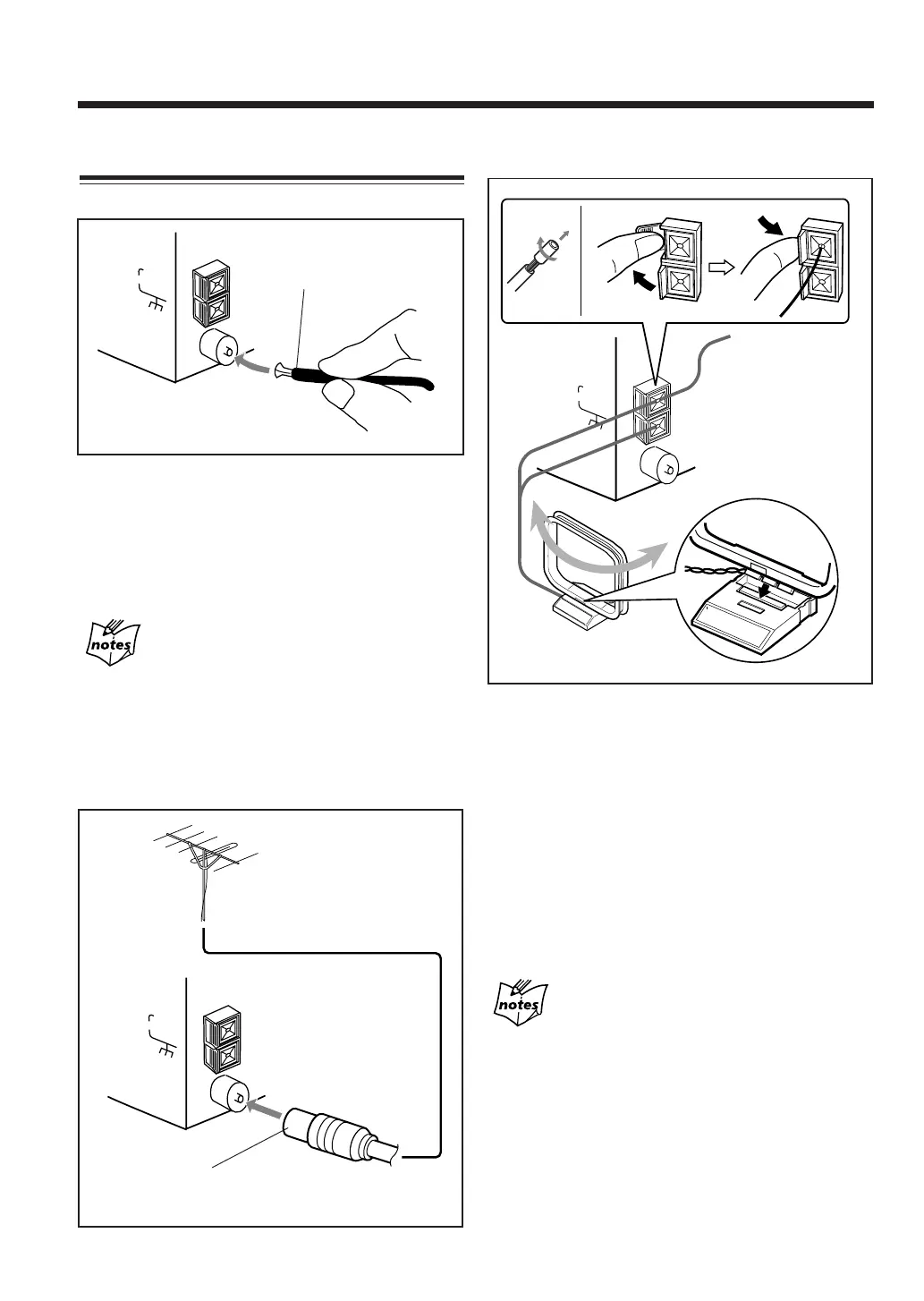

Connecting Antennas
FM antenna
2
To connect an outdoor FM antenna
Before connecting it, disconnect the supplied FM antenna.
A 75 Ω antenna with coaxial type
connector should be used.
ANTENNA
FM(75Ω)
COAXIAL
AM EXT
AM LOOP
Outdoor FM antenna
(not supplied)
1
Attach the FM antenna to the FM (75 Ω) COAXIAL
terminal.
2
Extend the FM antenna.
3
Fasten it up in the position which gives you the best
reception.
About the supplied FM antenna
The FM antenna supplied with this unit can be used as temporary
measure. If reception is poor, you can connect an outdoor FM
antenna.
ANTENNA
FM(75Ω)
COAXIAL
AM EXT
AM LOOP
FM antenna (supplied)
EN01-09FS-A52[J]f.pm6 02.1.21, 10:587
