JVC FS-G5

1-12 (No.MB353)
3.1.5 Removing the tuner pack
(See Fig.15)
• Prior to performing the following procedure, remove the side
panel (R)/(L) and the top panel.
(1) Disconnect the card wire from connector of the tuner pack.
(2) From the back of the body, remove the two screws N at-
taching the tuner pack.

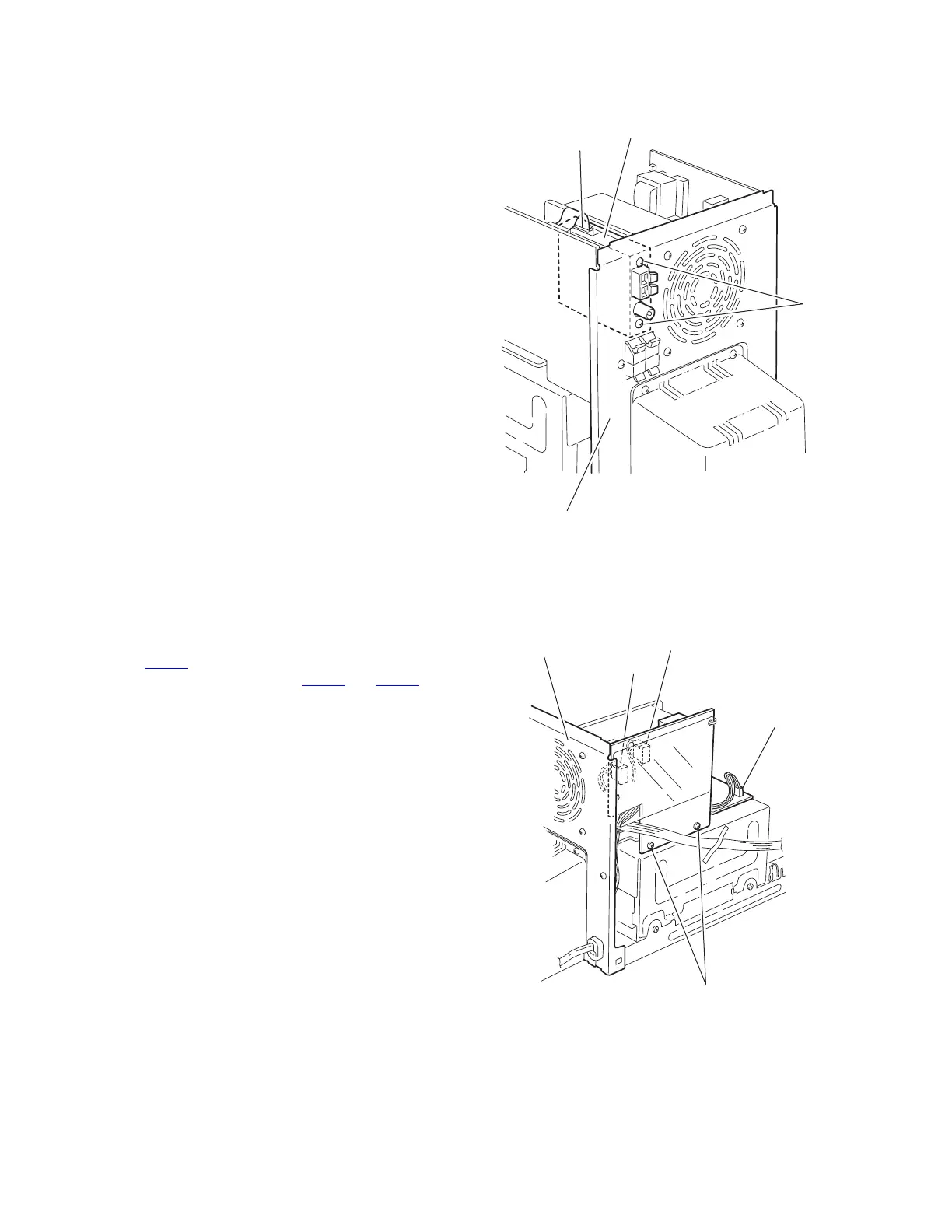

Fig.15
3.1.6 Removing the transformer board
(See Fig.16)
• Prior to performing the following procedure, remove the side
panel (R)/(L) and the top panel.
(1) From the left side of the body, disconnect the wire from
connector CN102
on the amplifier board.
(2) Disconnect the wire from connector CN901 and CN902 on
the transformer board.
(3) From the left side of the body, remove the two screws P at-
taching the transformer board.
Fig.16
Connector
Tuner pack
N
Rear panel
Rear panel
CN902
Transformer board
CN901
Amplifier board
CN102
P
