(No.MB353)1-13
3.1.7 Removing the fan
(See Fig.17)
• Prior to performing the following procedure, remove the side
panel (R)/(L), the top panel and the transformer board.
(1) From the left side of the body, disconnect the wire from
connector CN105
on the amplifier board.
(2) From the back of the body, remove the four screws Q at-
taching the fan.

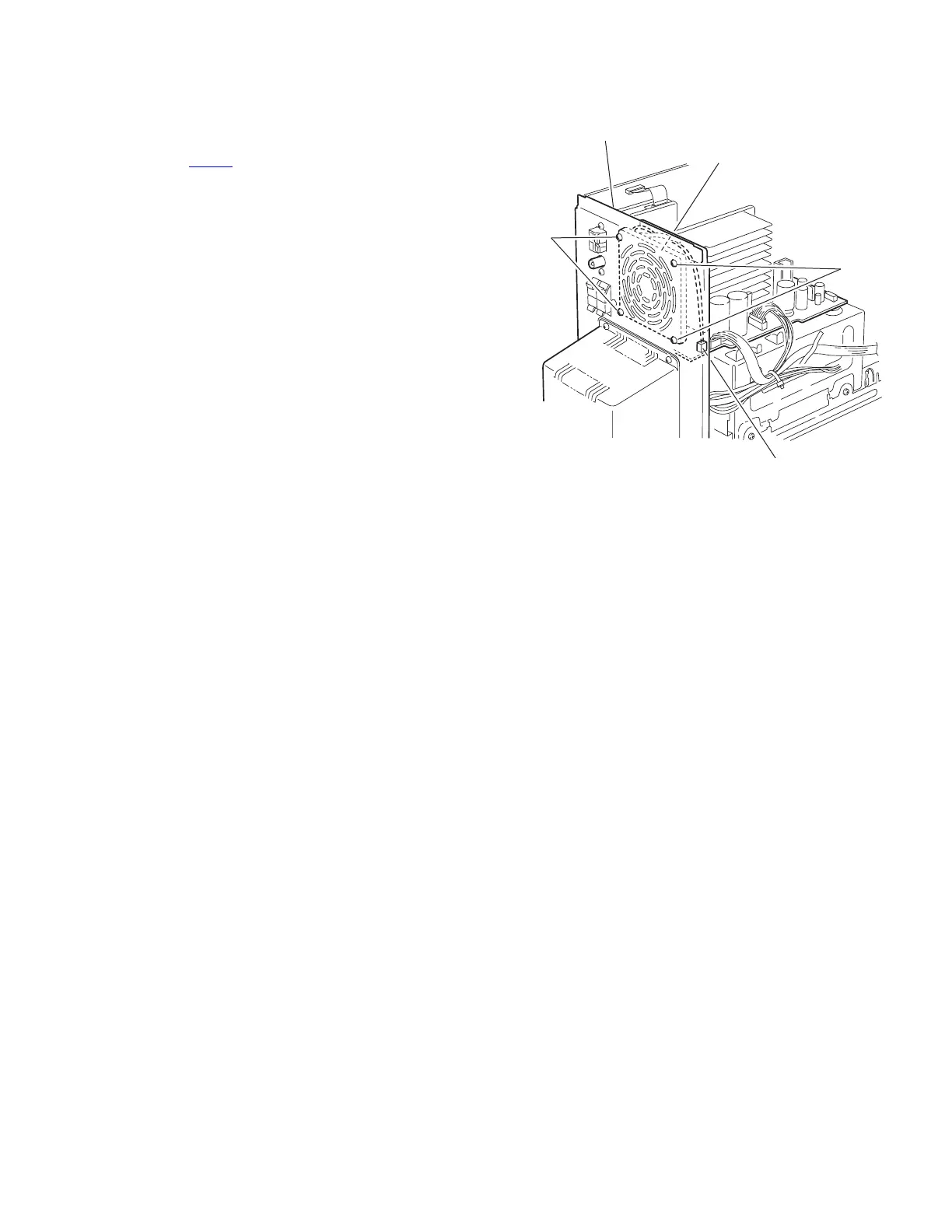

Fig.17
Rear panel
Fan
Q
Q
Amplifier board
CN105
To Next Page
