JVC FS-GD7 Service Manual

1-10 (No.MB355)
3.1.3.2 Removing the LCD & function board
(See Fig.11)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Pull out the volume knob on the front side of front panel as-
sembly.
(2) Remove the eleven screws H attaching the LCD & function
board.

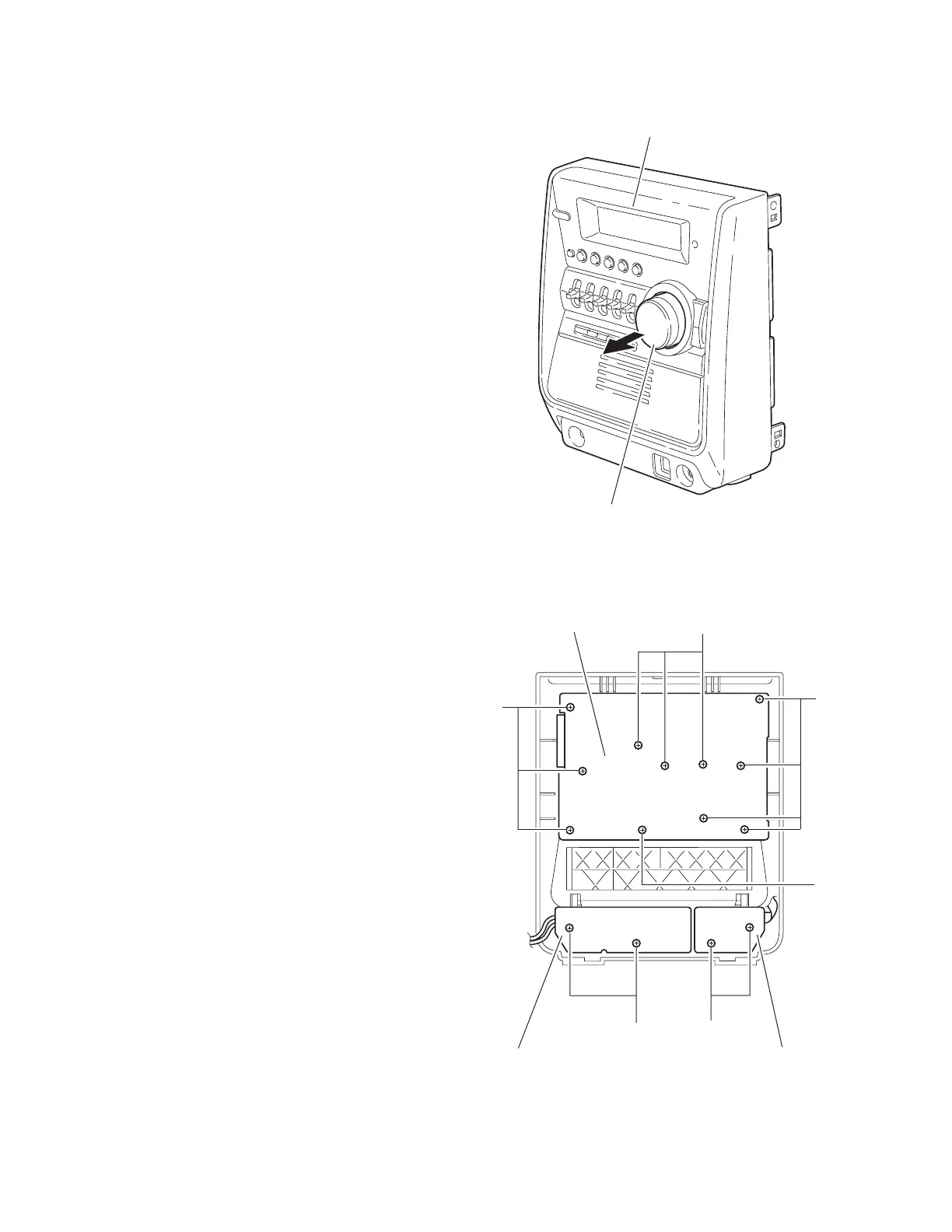

Fig.11
3.1.3.3 Removing the AUDIO & AUX board
(See Fig.12)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the two screws J attaching the AUDIO & AUX
board.
3.1.3.4 Removing the PHONE board
(See Fig.12)
• Prior to performing the following procedure, remove the front
panel assembly.
(1) Remove the two screws K attaching the PHONE board.
Fig.12
Front panel assembly
Volume konb
H
H
H
H
LCD & zvfunction board
A
UDIO & AUX board
PHONE board
J
K

JVC FS-GD7 Specifications

General

Brand	JVC
Model	FS-GD7
Category	Speaker System
Language	English
