JVC FS-GD7 Service Manual

(No.MB355)1-11

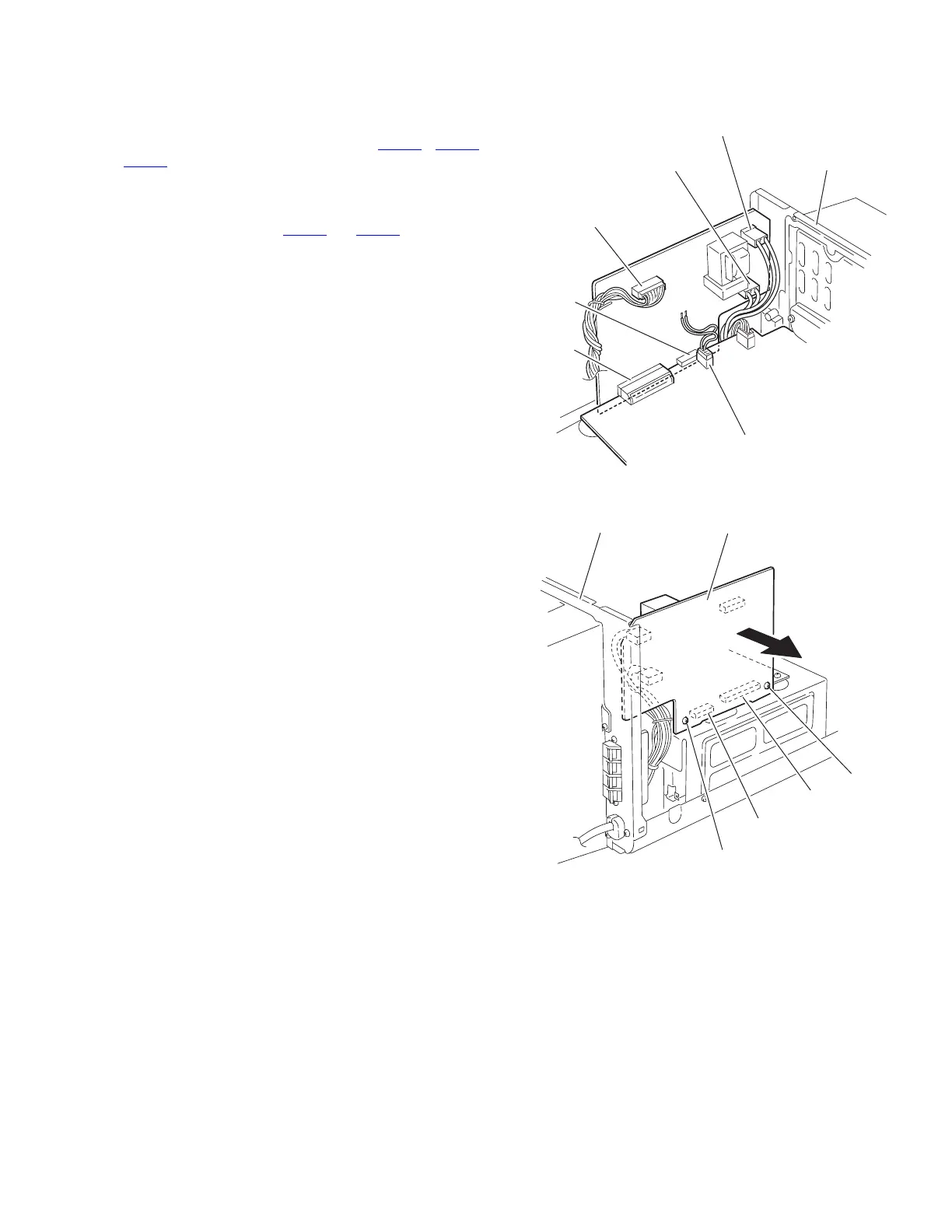

3.1.4 Removing the power (single) board
(See Fig.13, 14)
• Prior to performing the following procedure, remove the side
panel (R)/(L) and the top panel.
(1) Disconnect the wire from connector CN901
, CN902,
CN905
on the power (single) board.
(2) Disconnect the wire from connector on the amp board.
(3) Remove the two screws M attaching the power (single)
board.
(4) Disconnect the connector CN906
and CN907 on the power
(single) board from the amp board while moving it in the di-
rection of the arrow.
Fig.13
Fig.14
Rear panel
CN902
CN901
CN906
CN907
Amp board
connector
Power (single) board
CN905
Rear panel
Power (single) board
M
M
CN907
CN906
