JVC FS-X3 Service Manual

(No.MB004)1-19

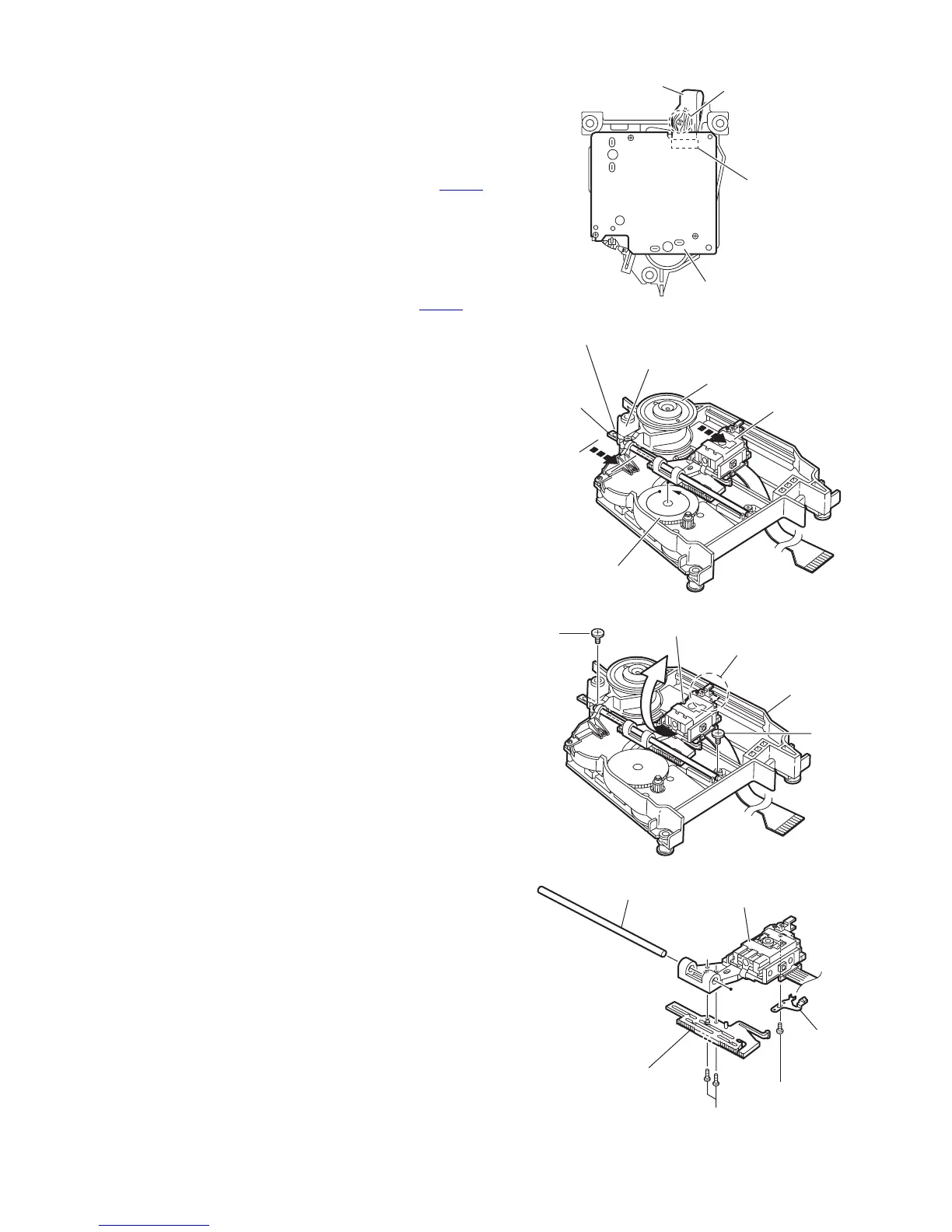

3.3.3 Removing the pickup assembly
(See Figs.4 to 7)
• Prior to performing the following procedures, remove the CD
traverse mechanism assembly.
Caution :
Be sure to solder the short land section b on the flexible wire
before disconnecting the flexible wire from connector CN601
on the CD servo board.
If the flexible wire is disconnected without attaching solder, the
pickup may be destroyed by static electricity.
(1) From the reverse side of the CD traverse mechanism as-
sembly, solder the short land section b on the flexible wire.
(See fig.4.)
(2) Disconnect the flexible wire from the connector CN601
on
the CD servo board. (See fig.4.)
(3) From the top side of the CD traverse mechanism assem-
bly, turn the middle gear in the direction of the arrow so that
the pickup assembly is shifted to the reverse side of the
turn table assembly.
Move the pickup assembly until the section e of the rack
plate in the lower section of the pickup assembly comes out
of the chassis base assembly. (See fig.5.)
(4) Remove the two screws C attaching the shaft of the pickup
assembly. Next, disengage the hook f from the chassis
base assembly and then remove the pickup assembly with
the shaft. (See fig.6.)
(5) Pull the shaft out of the pickup assembly. (See fig.7.)
(6) Remove the two screws D attaching the rack plate to the
pickup. (See fig.7.)
(7) Remove the screw E attaching the P.S.spring to the pick-
up. (See fig.7.)
Fig.4
Fig.5
Fig.6
Fig.7
Flexible wire
Short land section b
CN601
CD servo board
Pickup assembly
Turn table assembly
Chassis base assembly
Section e
Middle gear
Rack plate
C
Pickup assembly
Section f
Chassis assembly
C
Shaft
Pickup
P.S.spring
E
Rack plate
D
