3.3.4 Reinstalling the pickup assembly
(See Figs.8 and 9)
Reference :
Refer to the explanation of "Removing the pickup assembly"
on the preceding page.
(1) Attach the P.S.spring and rack plate to the pickup.
(2) Insert the shaft into the pickup.
(3) Engage the hook f of the pickup assembly to the chassis
base assembly first, and set the section e of the rack plate
in the opening section g.
Then reinstall the pickup assembly while shifting it to the
turn table assembly side (inward) so that the section h of
the rack plate is positioned as shown in Fig.9.
(4) Move the pickup assembly to the center position and fasten
the shaft with the two screws C. (Make sure that the section
i of the rack plate is correctly engaged with the rack gear.)
(5) After passing the flexible wire of the pickup through the
opening section of the chassis base assembly, connect it
to the connector CN601
on the CD servo assembly.
Note :
When reinstalling the pickup assembly, remove the solder
from the short land section b after connecting the flexible wire
to the connector CN601
on the CD servo board.

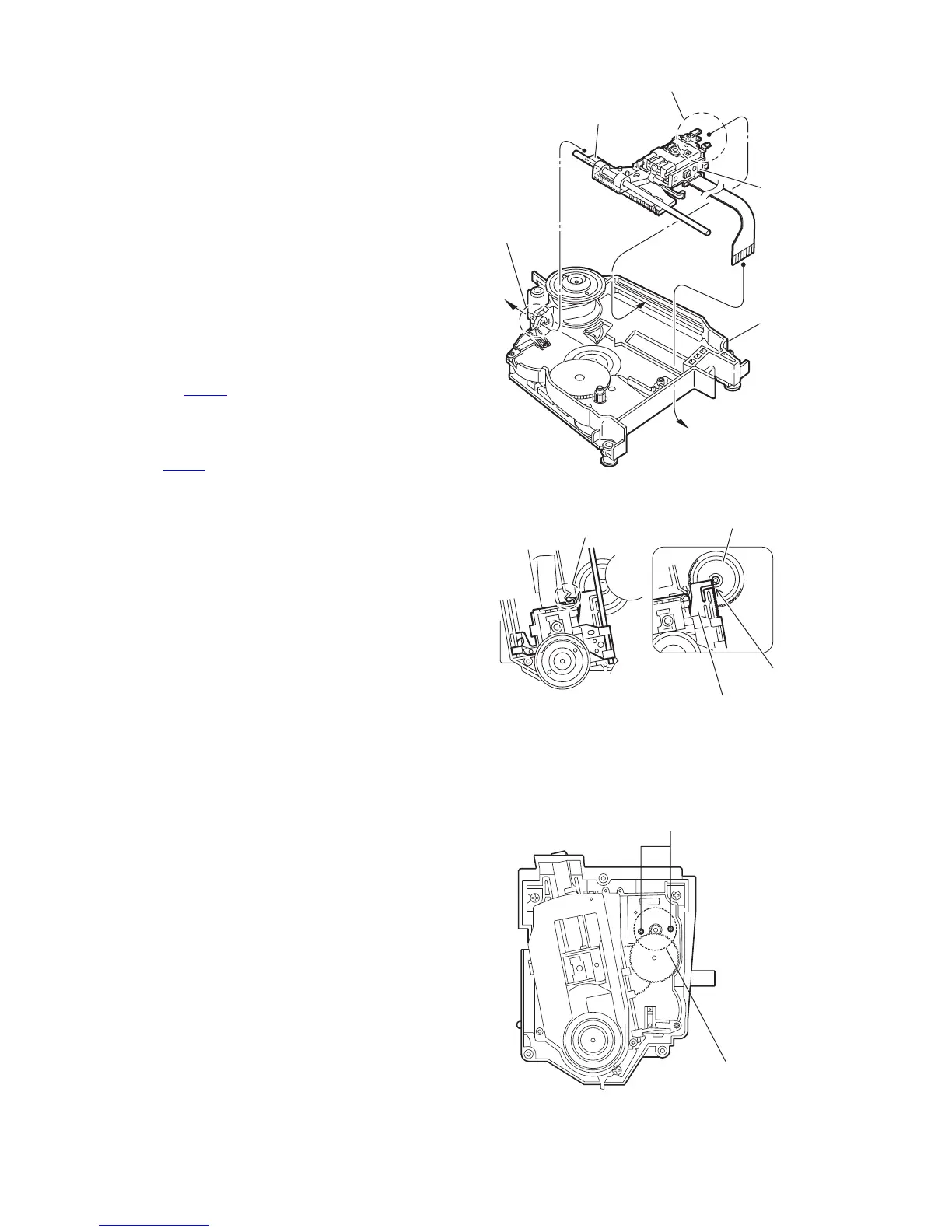

Fig.8
Fig.9
3.3.5 Removing the feed motor assembly
(See Fig.10)
• Prior to performing the following procedures, remove the CD
traverse mechanism assembly and CD servo board.
From the forward side of the CD traverse mechanism assem-
bly, remove the two screws F attaching the feed motor assem-
bly.
Fig.10
Section f
Section e
Pickup
assembly
Section g
Chassis base
assembly
Rack gear
Section i
Rack plate
Section h
F
Feed motor assembly
