JVC FS-X3

3-6

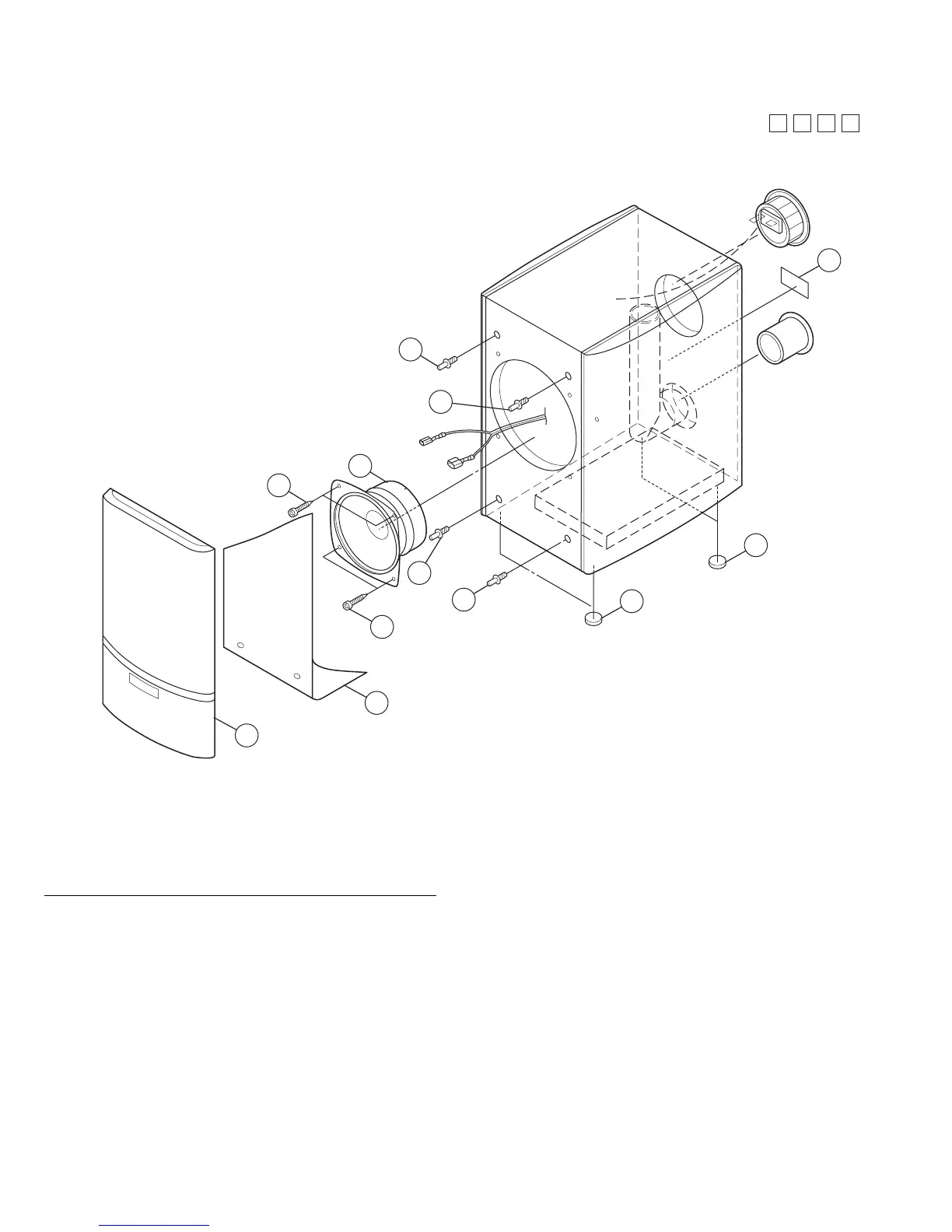

Speaker assembly and parts list
Speaker (SP-FSX1)
Block No. [M][7][M][M]
Block No.
M
M
M
7
(SP-FSX1)
7
5
5
4
3
4
3
4
4
2
1
6
 Symbol No. Part No. Part Name Description Local
1 LV21373-002A SARAN BOARD ASS (x2)
2 FX1WO0001 SPEAKER (x2)
3 SD5ML0001 TAPPING SCREW (x8)
4 SD5CX0001 LATCH (x8)
5 D77JD0001 RUBBER MAT (x8)
6 MDSKS0001 P.SHEET (x2)
7 FX1HT0301 RATING LABEL (x2)
